Description

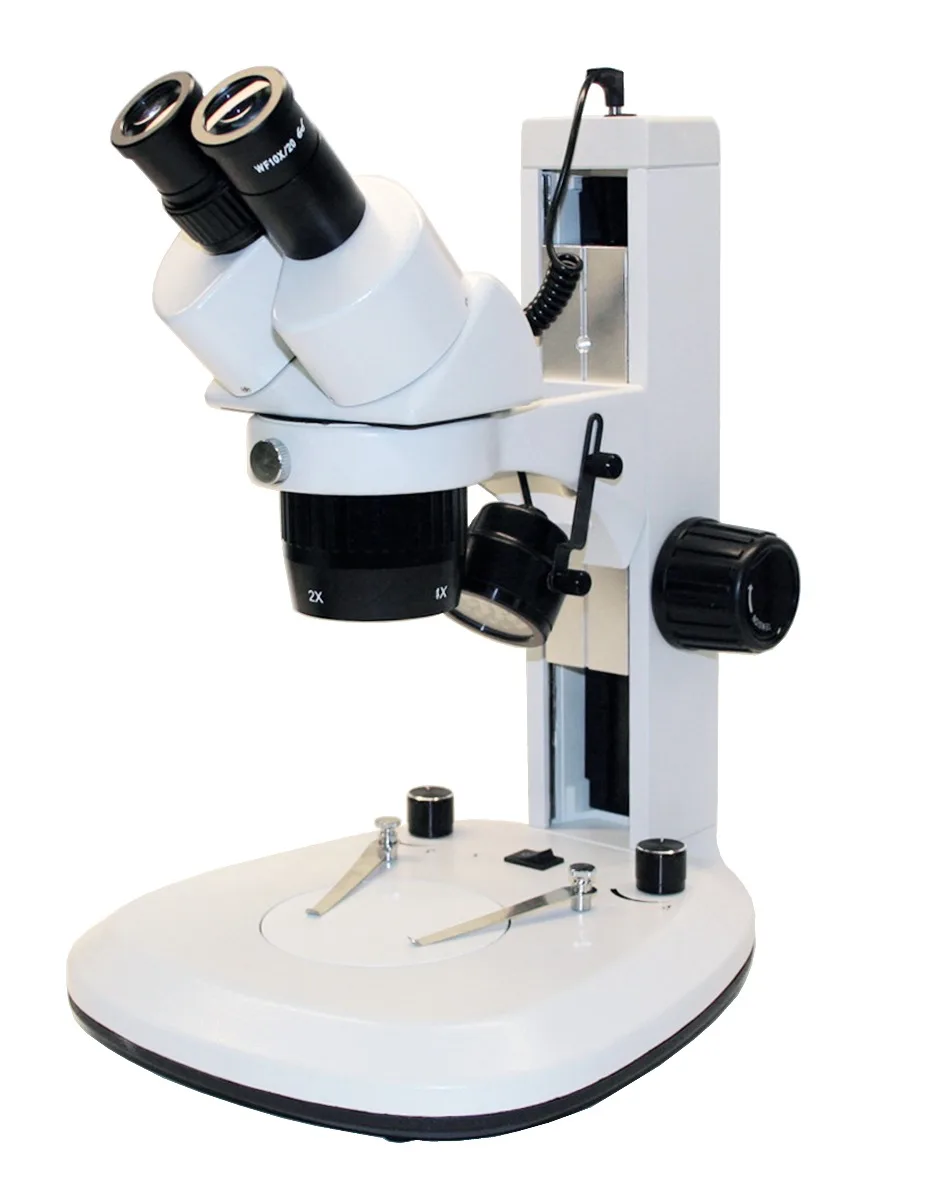

The QFN series stereo microscopes deliver a three-dimensional, un-reversed image with great resolution, brightness and clarity. All metal construction makes these microscopes rugged and durable. The compact, thin design of the large base provide added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls. The long track stand provides a long working distance, to offer flexibility when working with small or large samples. Comes with a 5 year limited warranty.
| QFN-12-L |
10X WF |
1X, 2X |
LED – Top & Bottom |
| QFN-13-L |
10X WF |
1X, 3X |
LED – Top & Bottom |
| QFN-24-L |
10X WF |
2X, 4X |
LED – Top & Bottom |
Specifications
| Model |
QFN-12-L |
QFN-13-L |
QFN-24-L
|
| Body |
All metal construction |
Head
|
Binocular head, 45° inclined, interpupillary adjustment of 55mm to 75mm |
| Eyepiece |
Paired 10X WF eyepieces, rubber eye guards included, diopter adjustment of ±5 on left occular tube |
| Objective |
1X, 2X |
1X, 3X |
2X, 4X |
| Stage |
95mm black/white stage plate, 95mm frosted stage plate, locked-on spring loaded stage clips |
Focusing System
|
Heavy duty rack and pinon focusing with slip clutch and tension adjustment |
| Working Distance |
100mm |
| Illumination |
Top/Bottom LED illumination, separate light intensity control for each light |
| Power |
3-wire grounded power cord |
| Accessories |
Vinyl dust cover and user manual |
| Warranty |
Limited 5 year |
