Description
The 40 Series are precision-built, tamper-proof microscopes that are uniquely designed, incorporating high resolution flat field objectives with wide-angle viewing. Choose from a monocular, dual view or binocular head, as well as a corded or cordless rechargeable models. All models feature a reversed nosepiece for more working room on stage, positive stops at both ends of stage travel to prevent damage to specimens and optics, coaxial coarse and fine focusing and DIN achromatic objectives that are parfocaled, parcentered and color-coded. Comes with a 5-year limited warranty, excluding bulbs.
| ITEM NO. | HEAD | DIN OBJECTIVES |
ILLUMINATION |

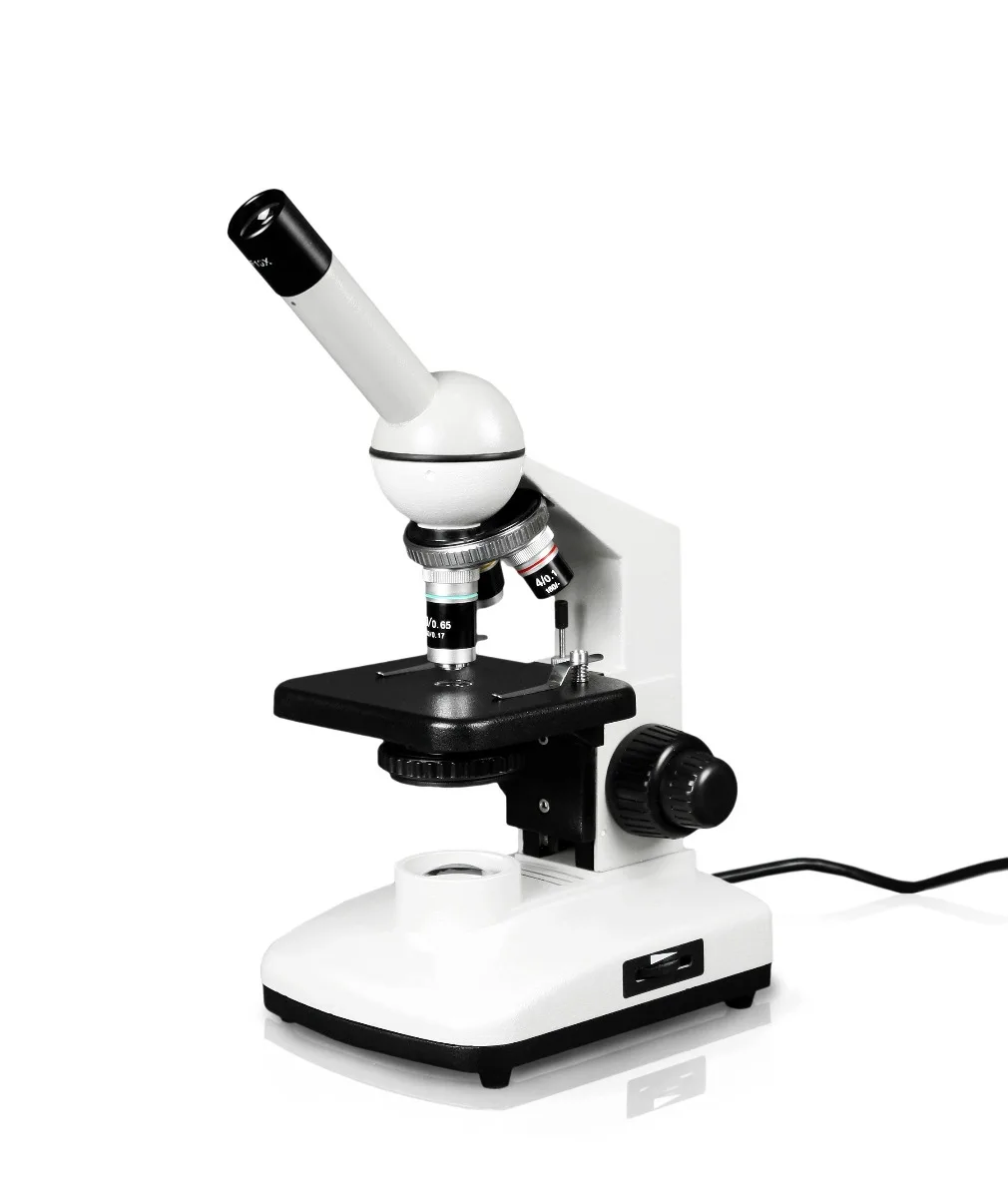

| 40-CXM-LED | Monocular | 4X, 10X, 40XR | LED Corded |
| 40-CXM-RC | Monocular | 4X, 10X, 40XR | LED Cordless |

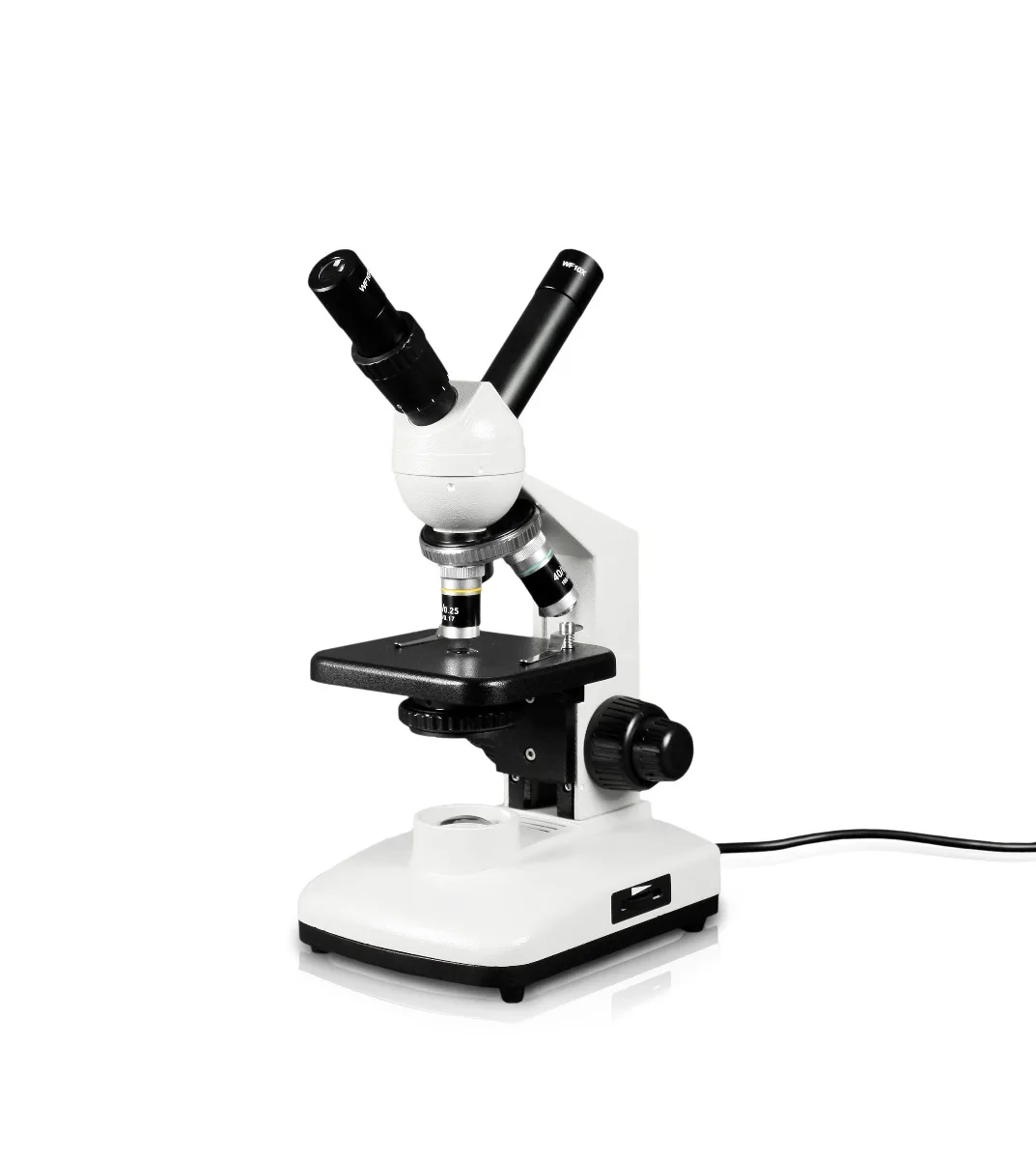

| 40-CXT-LED | 45º Dual View | 4X, 10X, 40XR | LED Corded |
| 40-CXT-RC | 45º Dual View | 4X, 10X, 40XR | LED Cordless |

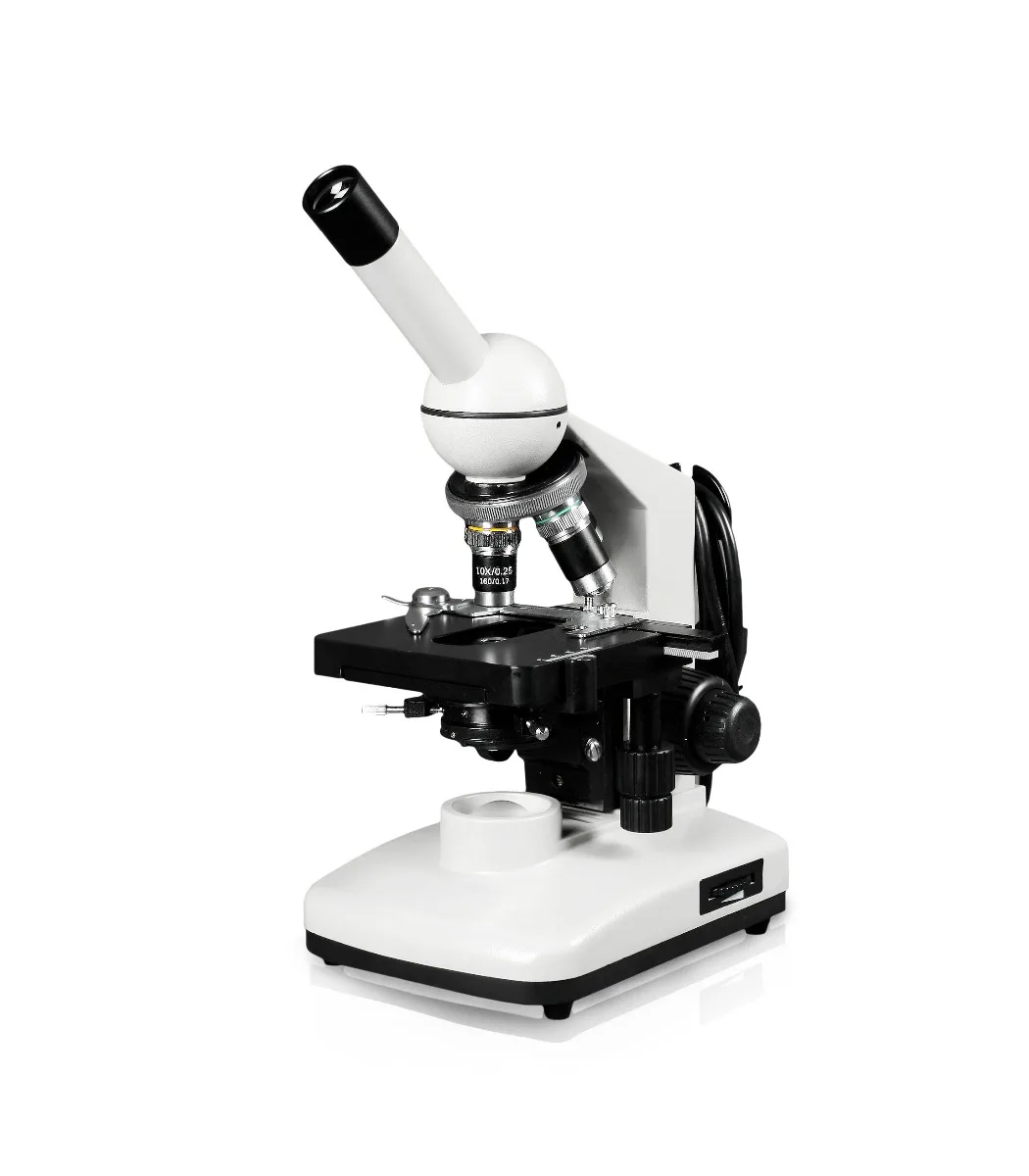

| 40-CXM-100-LED | Monocular | 4X, 10X, 40XR, 100XR | LED Corded |
| 40-CXM-100-RC | Monocular | 4X, 10X, 40XR, 100XR | LED Cordless |

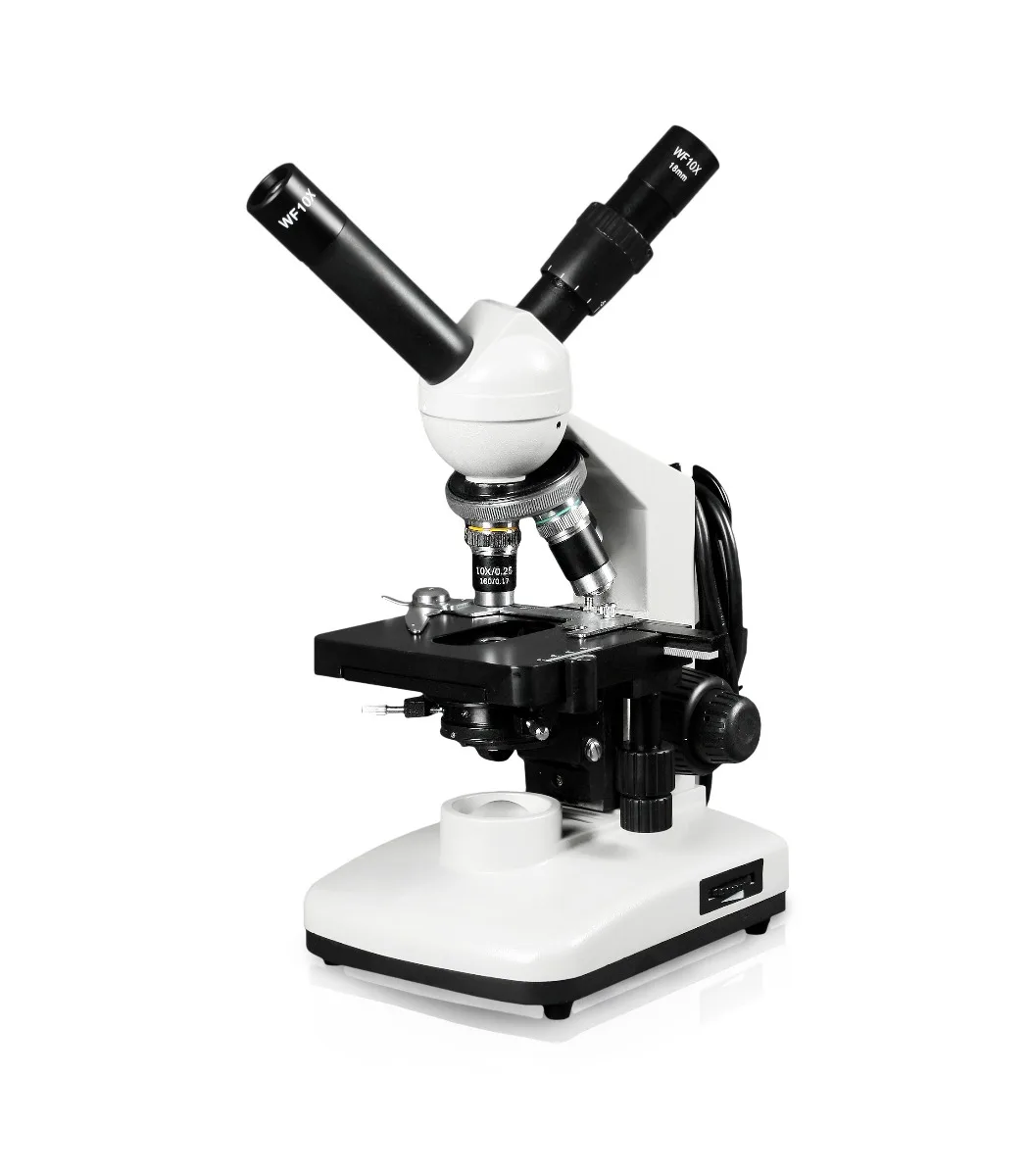

| 40-CXT-100-LED | 45º Dual View | 4X, 10X, 40XR, 100XR | LED Corded |
| 40-CXT-100-RC | 45º Dual View | 4X, 10X, 40XR, 100XR | LED Cordless |

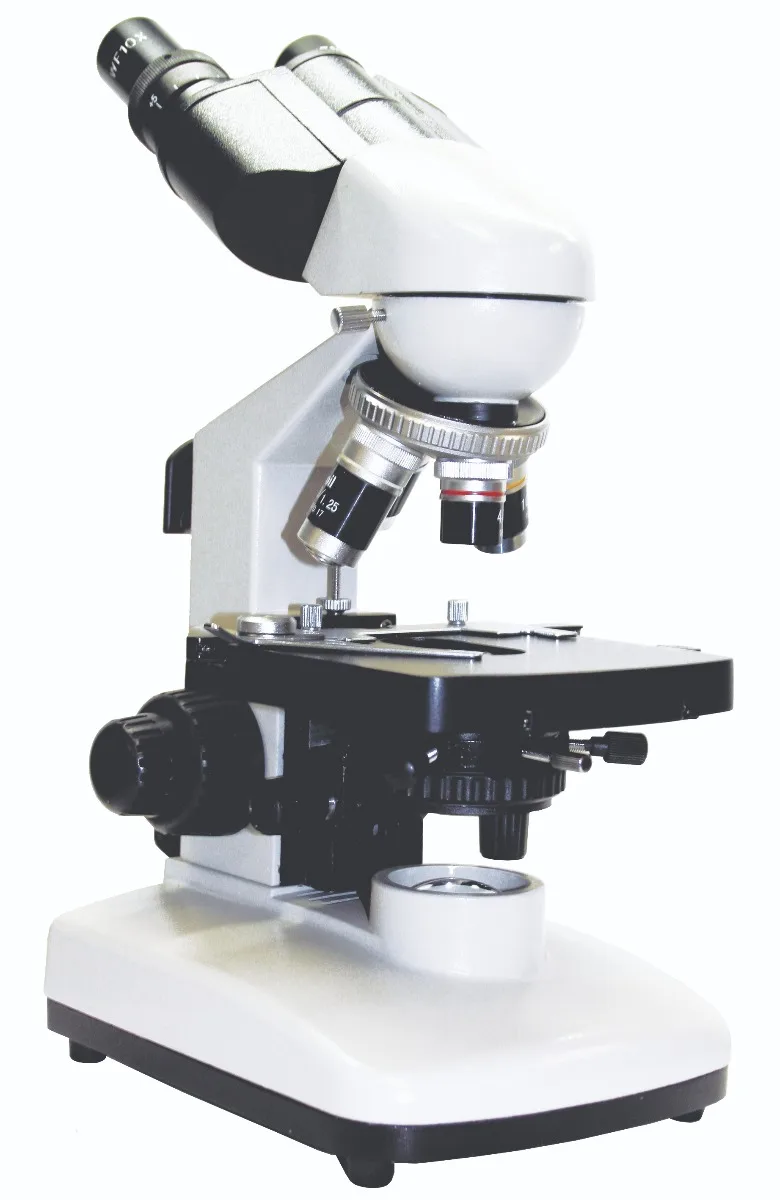

| 40-CXB-100-LED | Binocular | 4X, 10X, 40XR, 100XR | LED Corded |
| 40-CXB-100-RC | Binocular | 4X, 10X, 40XR, 100XR | LED Cordless |
Specifications
| Model | 40-CXM-LED 40-CXM-RC |
40-CXT-LED 40-CXT-RC |
40-CXM-100-LED 40-CXM-100RC |
40-CXT-100-LED 10-CXT-100-RC |
40-CXB-100-LED 40-CXB-100-RC |
| Body | All metal construction, cord holder on arm | ||||
| Head |
Monocular, 45° inclined | Dual view, 45° inclined | Monocular, 45° inclined | Dual view, 45° inclined | Binocular, 30° inclined |
| Eyepiece | 10X WF eyepiece with calibrated pointer | Paired 10X WF eyepieces, one with calibrated pointer Diopter adjustment on one occular tube |
10X WF eyepiece with calibrated pointer | Paired 10X WF eyepieces, one with calibrated pointer Diopter adjustment on one occular tube |
|
| Nosepiece | Three position reversed nosepiece | Four position reversed nosepiece | |||
| Objectives | 4X, 10X, 40XR DIN achromatic objectives are color-coded, parcentered and parfocaled | 4X, 10X, 40XR, 100XR DIN achromatic objectives are color-coded, parcentered and parfocaled | |||
| Stage | 4.75″ x 4.5″plain stage, locked-on spring loaded stage clips | Built-in double layer mechanical stage with spring loaded clamp, smooth X-Y travel and 0.01mm increments | |||
| Condenser | 0.65 N.A. condenser | 1.25 N.A. Abbe condenser | |||
| Diaphragm | Iris diaphragm with a plastic cover | ||||
| Focusing System |
Coaxial coarse and fine focusing, slip clutch with tension adjustment to protect focusing mechanism, safety rack stop | ||||
| Illumination | LED illumination, light intensity control | ||||
| Power | LED: 3-wire grounded power cord RC: 3 AA NiMH rechargeable batteries or AC adapter (both included) | ||||
| Accessories | Vinyl dust cover and user manual | ||||
| Warranty | Limited 5 year | ||||
