Description
This microscope features both coarse and fine focus controls, which is normally only found on advanced microscopes. With its all metal construction, this unit can withstand years of use. Comes with a 5 year limited warranty.
| ITEM NO. |
EYEPIECE | OBJECTIVES | FOCUSING | ILLUMINATION |

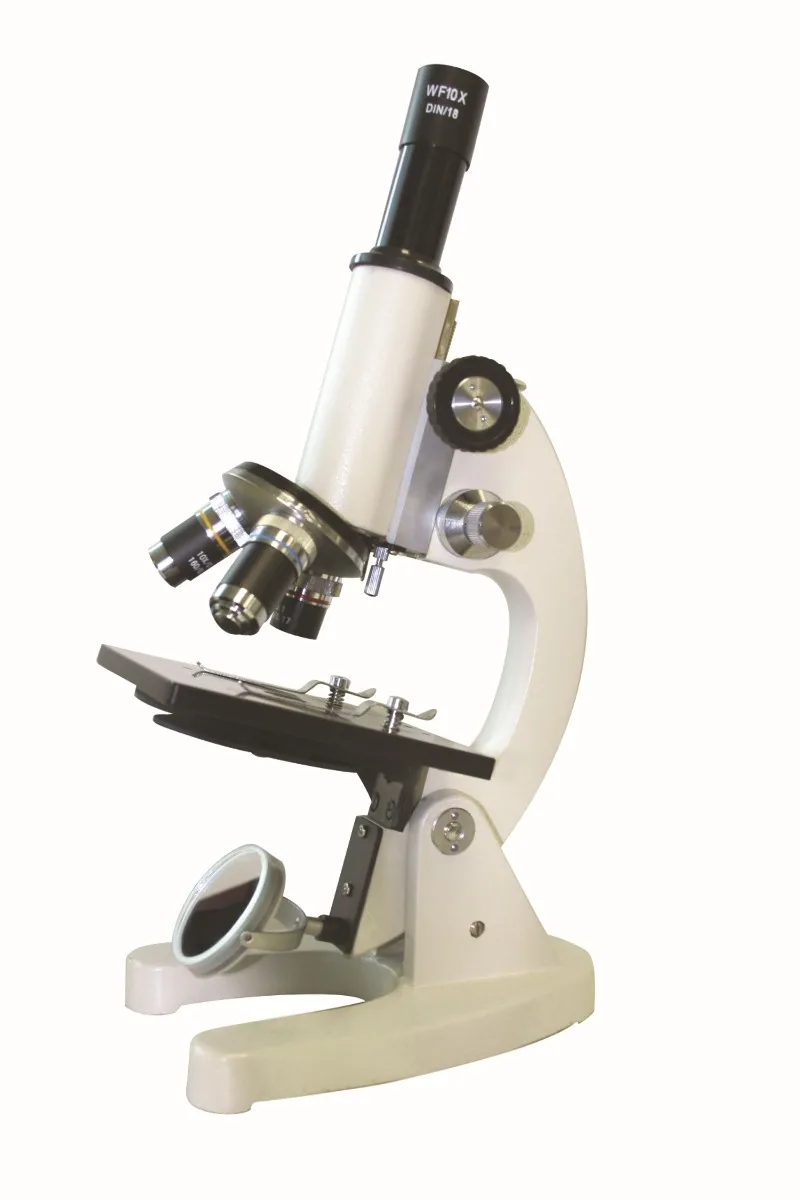

| 3055 | 10X WF | 4X, 10X, 40XR | Separate Coarse & Fine | Mirror |

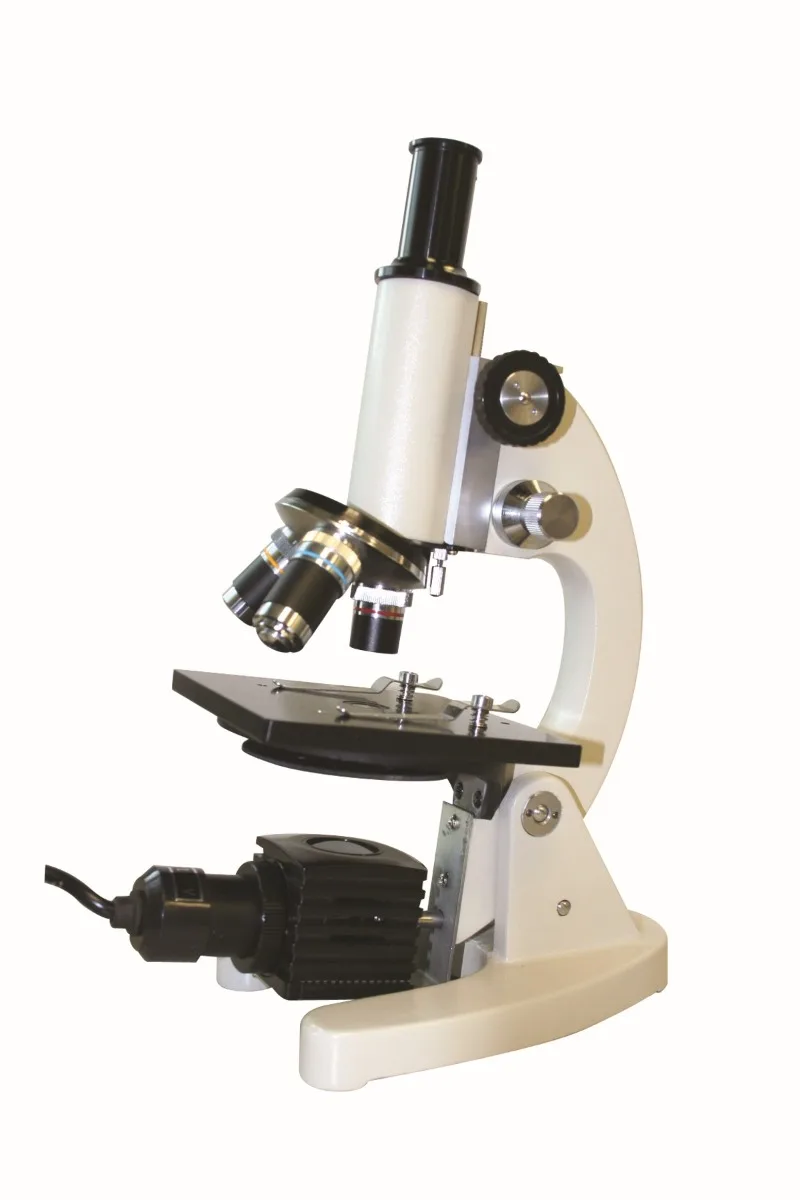

| 3055L | 10X WF | 4X, 10X, 40XR | Separate Coarse & Fine | 20W Tungsten |
Specifications
| Model | 3055 | 3055L |
| Body | Rugged cast metal construction, inclination joint | |
| Head |
Monocular, vertical optical tube | |
| Eyepiece | Locked-on 10X wide-field eyepiece with pointer | |
| Nosepiece | Three position nosepiece with positive stop clicks | |
| Objectives | 4X, 10X, 40XR color-coded DIN achromatic objectives | |
| Stage | 120mm x 130mm stage with locked-on spring loaded stage clips | |
| Diaphragm | Five aperature disc diaphragm | |
| Focusing System |
Separate coarse & fine focusing, tension adjustable, rack stop | |
| Illumination | Mirror | 20W Tungsten |
| Power | N/A | 3-wire grounded power cord |
| Accessories | Vinyl dust cover and user manual | |
| Warranty | Limited 5 year | |
