Description

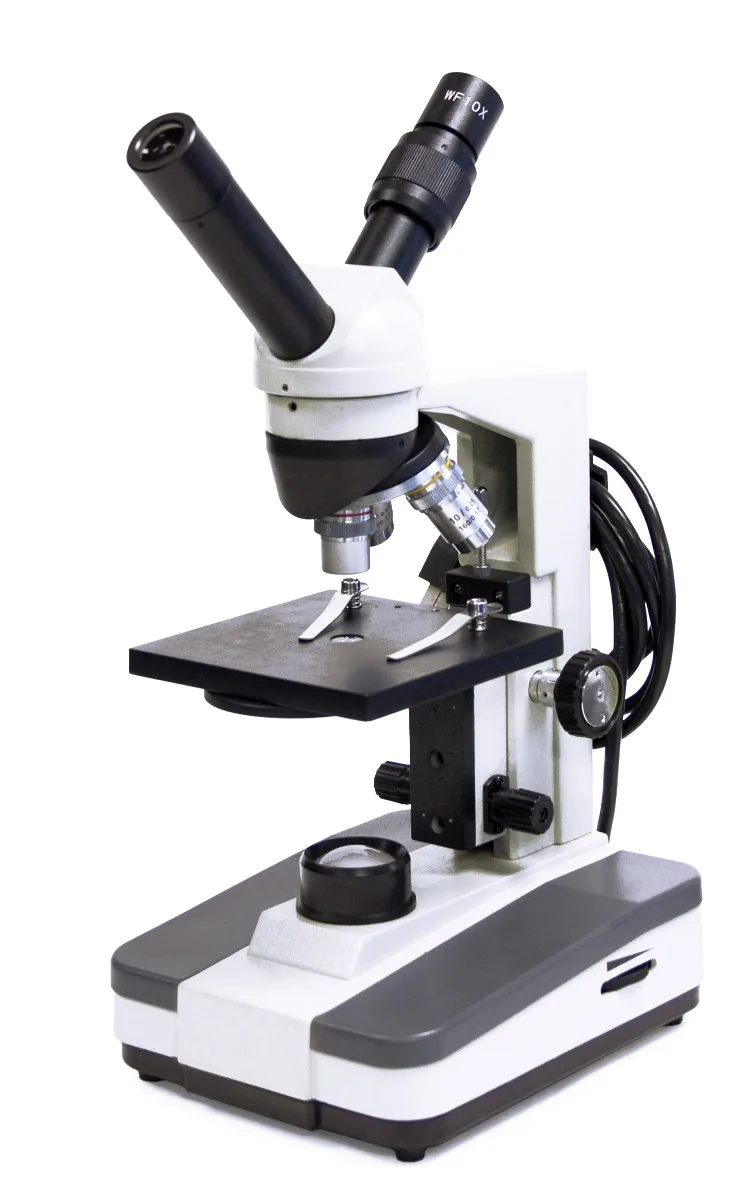

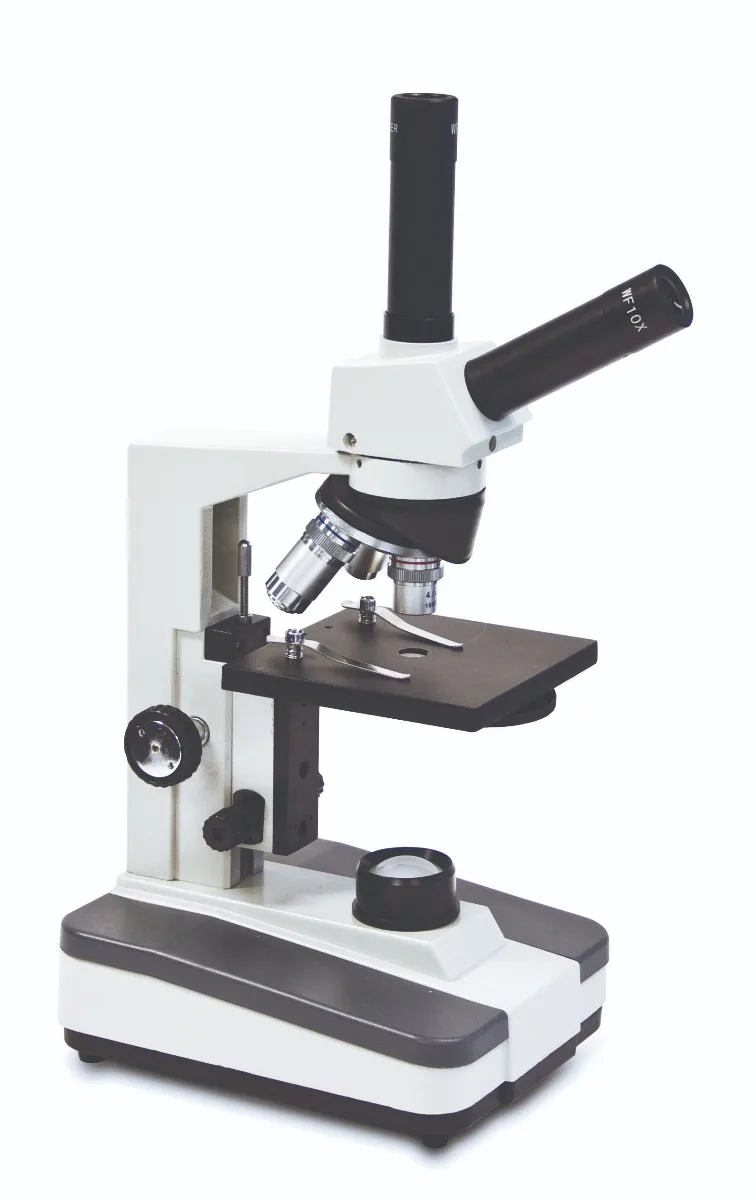

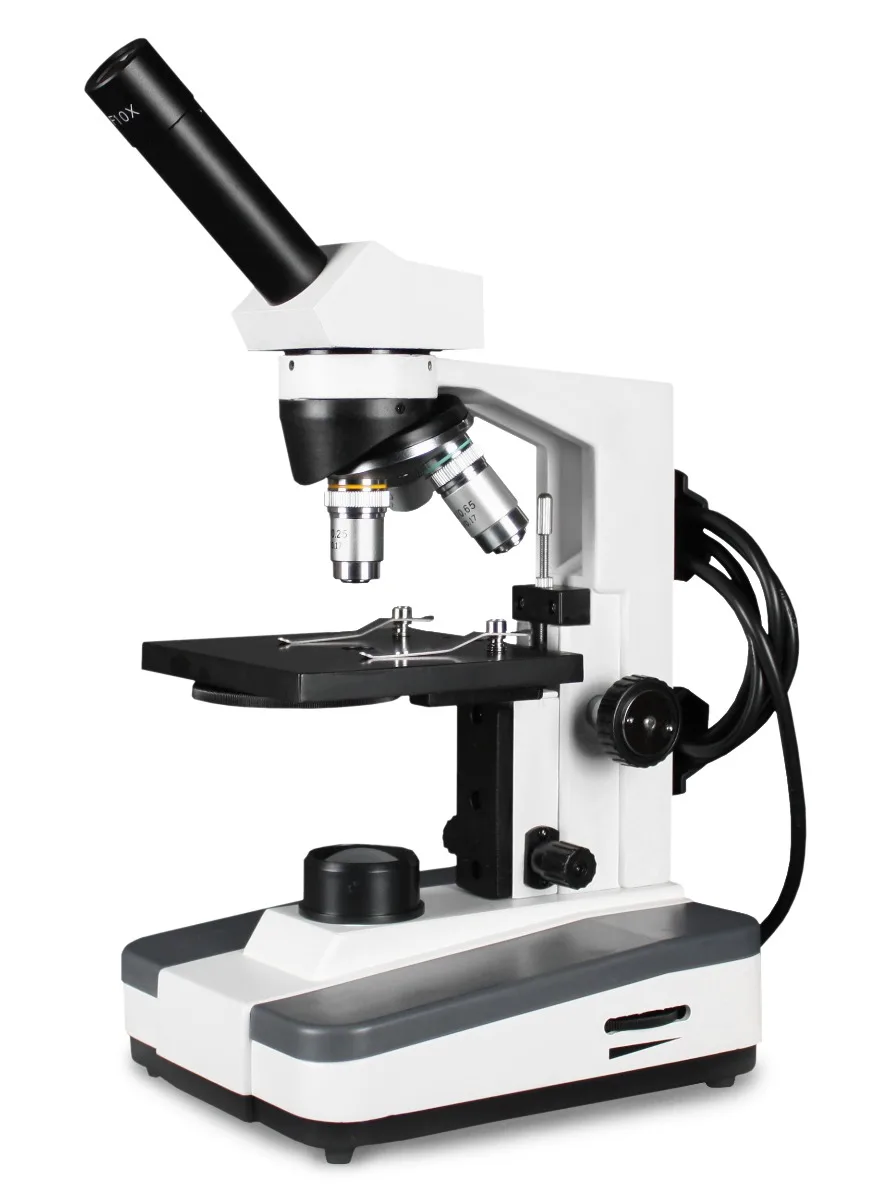

The BMT series microscopes have a great reputation and are a classroom favorite. Known for their durability and versatility with a rugged cast metal stand, stain resistant finish and chrome plated components. Features a locked-on 10X wide field eyepiece with calibrated pointer and 360° rotating head that is inclined at 45°. The ball-bearing objective turret is mounted, allowing for smooth alignment while positive click stops ensures precise magnification. The DIN achromatic objectives are parfocaled and parcentered to provide sharp, color-corrected images. Packed in a fitted styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty excluding bulbs.
Specifications
| Model | BMT-402D-LED BMT-402D-RC |
BMT-403D-LED BMT-403D-LED |
BMT-404D-LED BMT-404D-LED |
| Body | Rugged cast metal stand with stain resistant finish, cord holder on arm | ||
| Head |
Monocular, 45° inclined, 360° rotatable | 90° Video, 45° inclined, 360° rotatable | 45° Dual View, 45° inclined, 360° rotatable |
| Eyepiece | Locked-on 10X wide-field eyepiece with calibrated pointer | ||
| Nosepiece | Three position reversed nosepiece with positive stop clicks | ||
| Objectives | 4X, 10X, 40XR DIN achromatic objectives are color-coded, parfocaled and parcentered | ||
| Stage | 115mm x 120mm stage, locked-on spring loaded stage clips (drilled and tapped to accept MS20 mechanical stage) | ||
| Condenser | 0.65 N.A. condenser | ||
| Diaphragm | 5-hole disc diaphragm | ||
| Focusing System |
Separate coarse and fine focus control, rack and pinion focusing system, safety rack stop | ||
| Illumination | LED illumination with light intensity control | ||
| Power | LED: 3-wire grounded power cord | RC: 3 AA NiMH batteries or AC adapter (both included) | ||
| Accessories | Vinyl dust cover and user manual | ||
| Warranty | Limited 5 year | ||
