30 Series Microscopes

SKU 30 Series Microscopes

  • Monocular, 45º dual view, or binocular head, all 360º rotatable
  • Superior quality 10X wide-field eyepieces with calibrated pointer
  • Reverse nosepiece for more working room on stage
  • Separate coarse and fine focusing & coaxial coarse and fine focusing available
  • Cool to touch LED illumination

Description

The 30 Series is a user-friendly microscope equipped with your choice of a monocular, 45º dual view, or binocular head. Microscopes have a compact Euro design for easy carrying and come with a reverse nosepiece to permit easy changing and position of specimen slides and an increased workspace. DIN objectives are achromatic, color-coded, parcentered and parfocaled to provide superb optical clarity. Packed in a fitted styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty, excluding bulbs.

ITEM NO.
HEAD OBJECTIVES STAGE FOCUSING

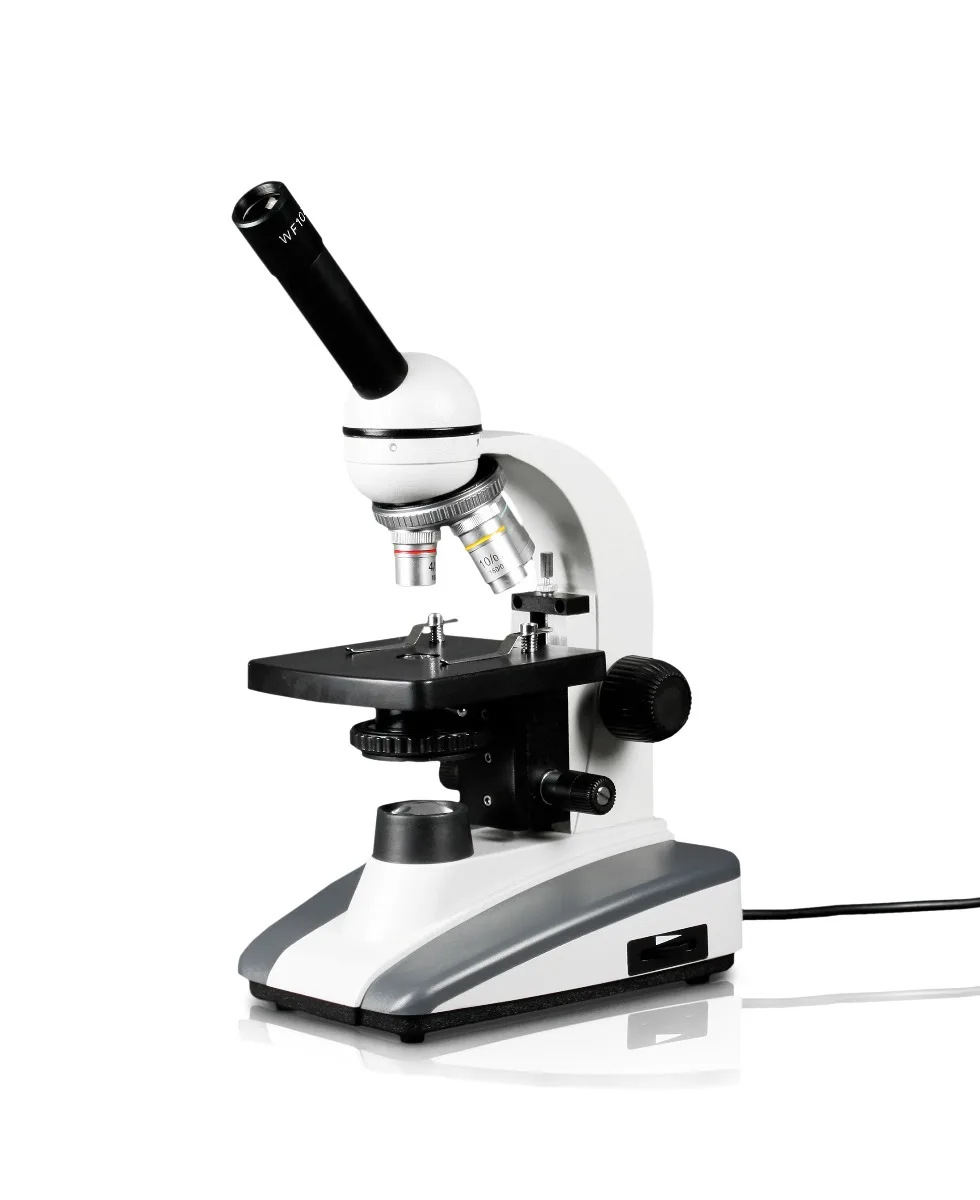

30-M-LED Monocular 4X, 10X, 40XR Plain Stage, 0.65 N.A. Condenser, 5 Hole Disc Diaphragm Coarse / Fine

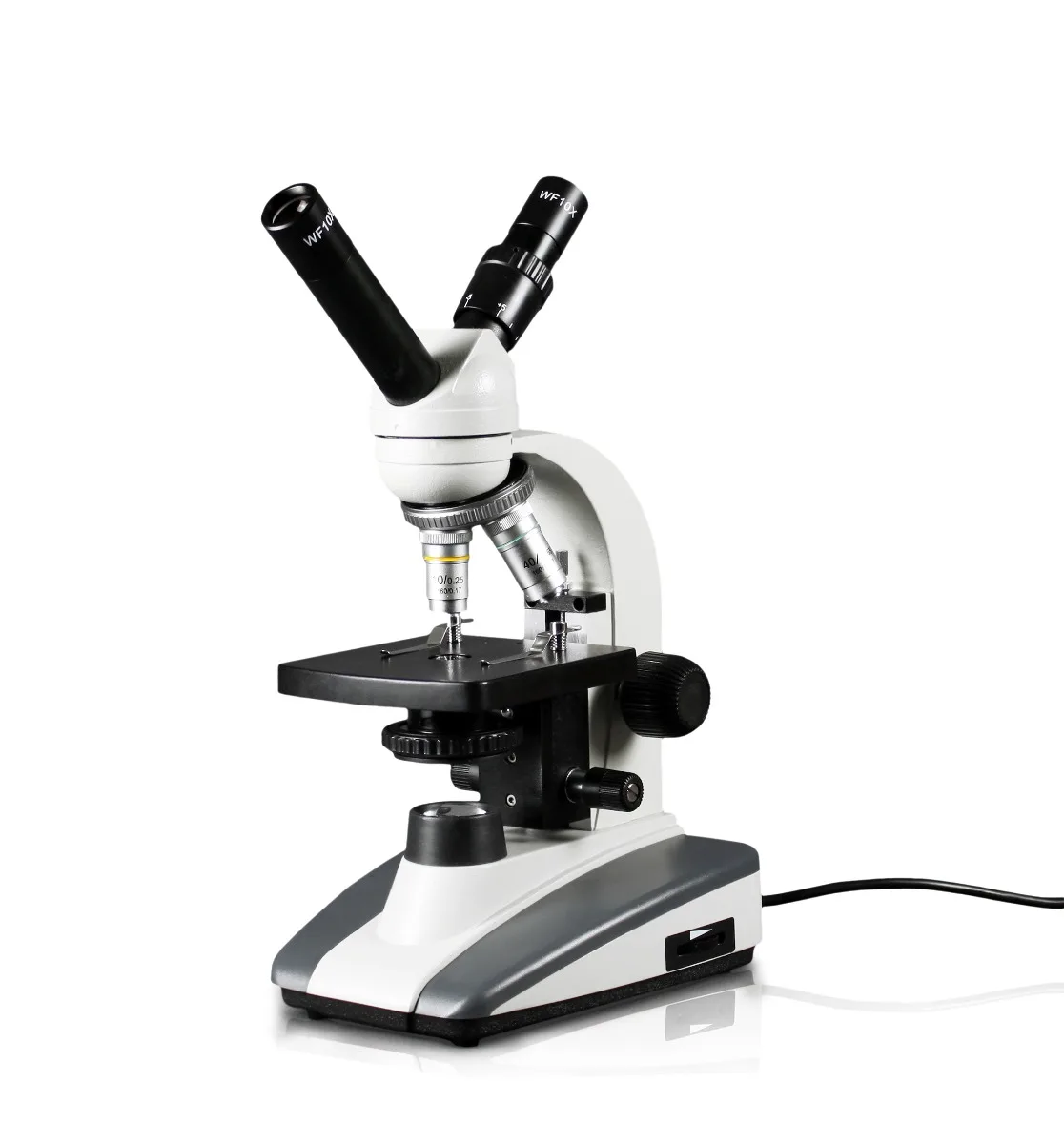

30-T-LED 45° Dual View 4X, 10X, 40XR Plain Stage, 0.65 N.A. Condenser, 5 Hole Disc Diaphragm Coarse / Fine
30-M-100-LED Monocular 4X, 10X, 40XR, 100XR Plain Stage, 1.25 Spiral Condenser, Iris Diaphragm Coarse / Fine
30-T-100-LED 45° Dual View 4X, 10X, 40XR, 100XR Plain Stage, 1.25 Sprial Condenser, Iris Diaphragm Coarse / Fine
30-CXM-LED Monocular 4X, 10X, 40XR Mechanical Stage, 1.25 N.A. Abbe Condenser, Iris Diaphragm Coaxial
30-CXT-LED 45° Dual View 4X, 10X, 40XR Mechanical Stage, 1.25 N.A. Abbe Condenser, Iris Diaphragm Coaxial

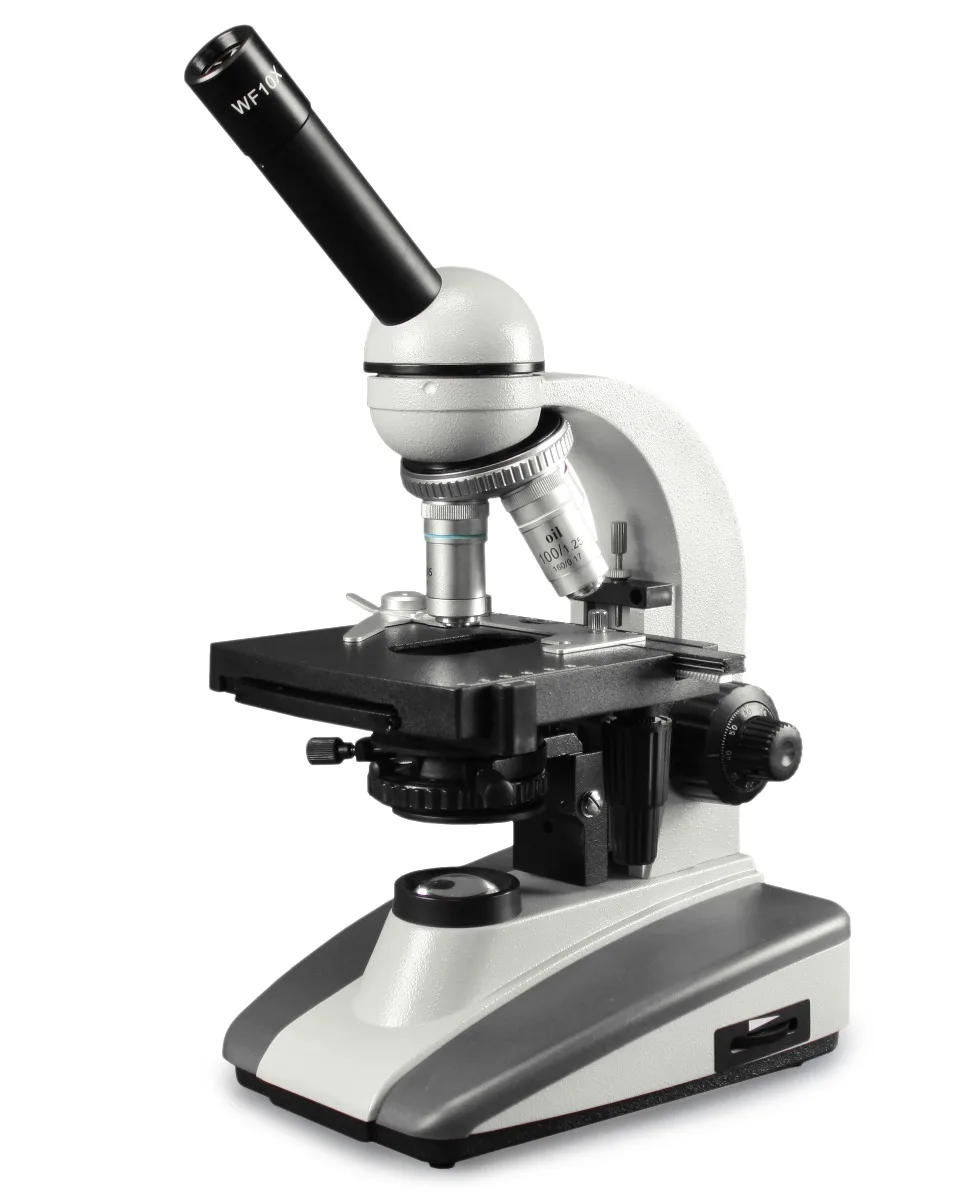

30-CXM-100-LED Monocular 4X, 10X, 40XR, 100XR Mechanical Stage, 1.25 N.A. Abbe Condenser, Iris Diaphragm Coaxial

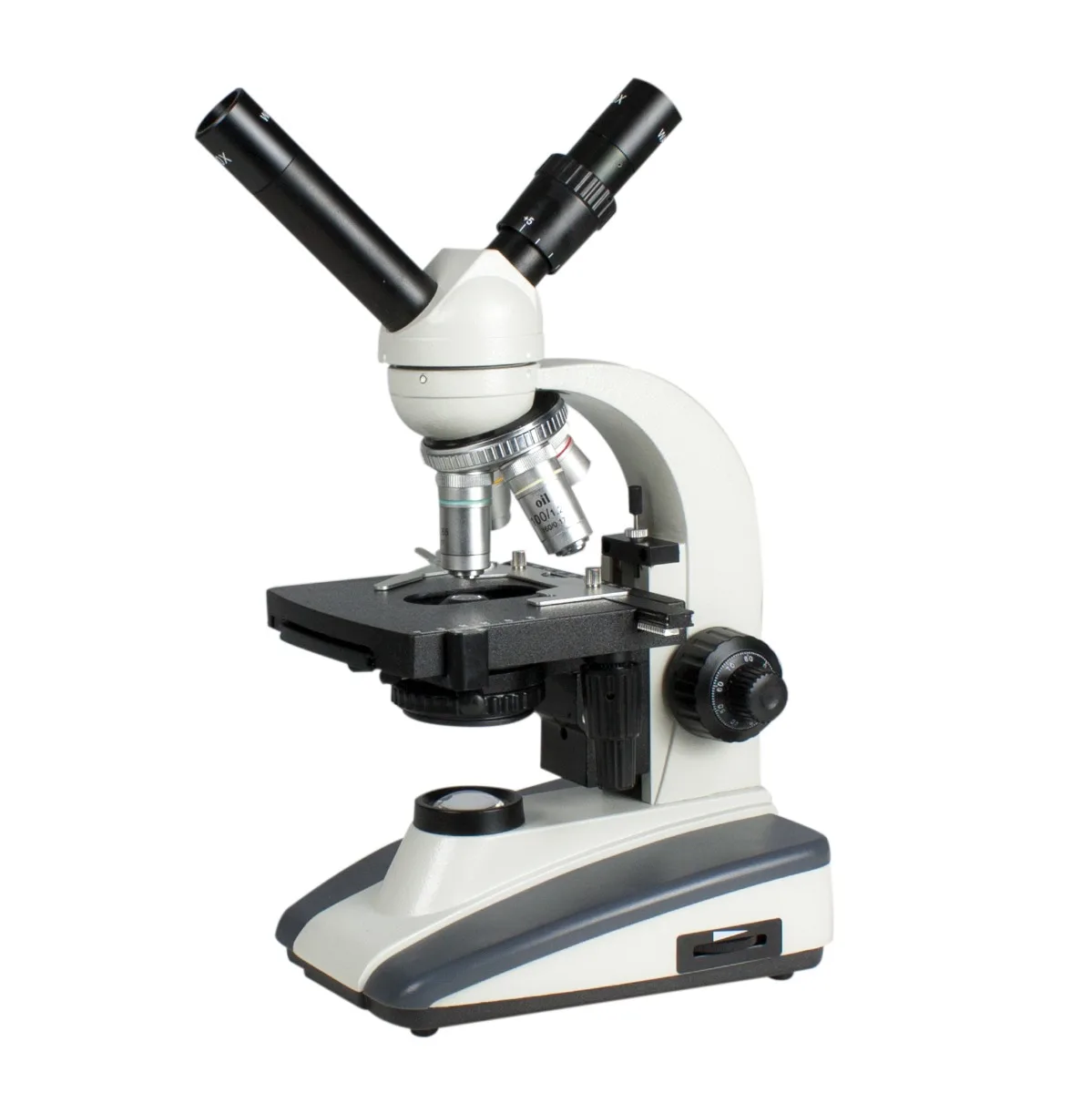

30-CXT-100-LED 45° Dual View 4X, 10X, 40XR, 100XR Mechanical Stage, 1.25 N.A. Abbe Condenser, Iris Diaphragm Coaxial

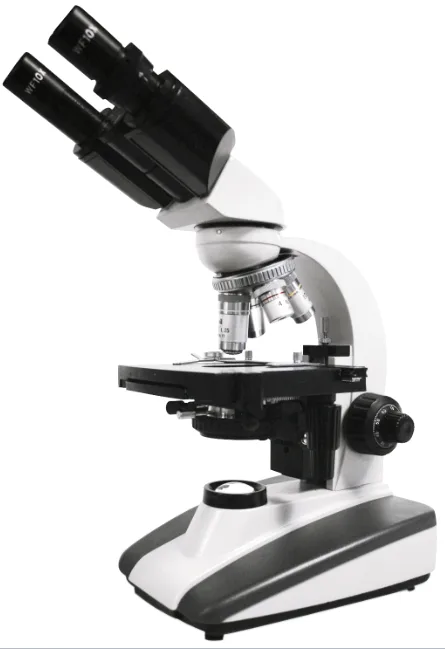

30-CXB-100-LED Binocular 4X, 10X, 40XR, 100XR Mechanical Stage, 1.25 N.A. Abbe Condenser, Iris Diaphragm Coaxial


Specifications

Model 30-M-LED 30-T-LED 30-M-100-LED 30-T-100-LED 30-CXM-LED 30-CXT-LED 30-CXM-100-LED 30-CXT-100-LED 30-CXB-100-LED
Body Metal stand with stain resistant finish, Euro design
Head
 Monocular, 45° inclined, 360° rotatable 45° Dual View, 45° inclined, 360° rotatable Monocular, 45° inclined, 360° rotatable 45° Dual View, 45° inclined, 360° rotatable Monocular, 45° inclined, 360° rotatable 45° Dual View, 45° inclined, 360° rotatable Monocular, 45° inclined, 360° rotatable 45° Dual View, 45° inclined, 360° rotatable Binocular, 30° inclined, 360° rotatable
Eyepiece 10X wide-field eyepiece with calibrated pointer 10X wide-field eyepieces, one with calibrated pointer 10X wide-field eyepiece with calibrated pointer 10X wide-field eyepieces, one with calibrated pointer 10X wide-field eyepiece with calibrated pointer 10X wide-field eyepieces, one with calibrated pointer 10X wide-field eyepiece with calibrated pointer 10X wide-field eyepieces, one with calibrated pointer 10X wide-field eyepieces, one with calibrated pointer, diopter adjustment on left eye tube
Nosepiece Three position reversed nosepiece Four position reversed nosepiece Three position reversed nosepiece Four position reversed nosepiece
Objectives 4X, 10X, 40XR DIN achromatic objectives are color-coded, parfocaled and parcentered 4X, 10X, 40XR, 100XR DIN achromatic objectives are color-coded, parfocaled and parcentered 4X, 10X, 40XR DIN achromatic objectives are color-coded, parfocaled and parcentered 4X, 10X, 40XR, 100XR DIN achromatic objectives are color-coded, parfocaled and parcentered
Stage Plain stage with locked-on, spring loaded stage clips Mechanical stage with 0.1mm increments, smooth X/Y calibrated movement, cross travel range of 7.5cm X 3.4cm tension adjustment to eliminate stage drift
Condenser 0.65 N.A. condenser 1.25 Spiral Condenser 1.25 N.A. Abbe condenser, rack and pinion adjustable
Diaphragm 5-hole disc diaphragm Iris Diaphragm Iris diaphragm with optically clear plastic cover
Focusing System
 Separate coarse and fine focus control, rack and pinion focusing system, safety rack stop Coaxial coarse and fine focus control, rack and pinion focusing system, safety rack stop
Illumination LED illumination with light intensity control
Power 3-wire grounded power cord
Accessories Vinyl dust cover and user manual
Warranty Limited 5 year

Additional information

Weight 9.0 kg
