WP-7 Series Zoom Stereo Microscopes with Articulating Arm Clamp Stand

WP-7 Series Zoom Stereo Microscopes with Articulating Arm Clamp Stand
WP-7 Series Zoom Stereo Microscopes with Articulating Arm Clamp Stand - Image 2

WP-7 Series Zoom Stereo Microscopes with Articulating Arm Clamp Stand

SKU WP-7 Series Zoom Stereo Microscopes

  • 45° inclined head, which rotates 360°. Simul-focal trinocular head allows the photo port and both eyepieces to be used simultaneously
  • Features a 54-76mm interpupillary adjustment, while both ocular tubes are diopter adjustable, to compensate for eye-strength difference when needed
  • 7X – 45X standard magnification range, and also has a field of view of 2 ½”. The parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
  • Industrial clamp stand with an adjustable counter-balanced arm, allows for easy, hand-guided, and up-and-down movement. It is ideal for observation of specimens that require a great deal of movement, or to cover a large sample working area, i.e. a 40” radius. Clamps to a table or desk
  • Articulating arm clamp stand offers a long and flexible working distance. Its rotating, swiveling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas; making it sure to meet your flexibility requirements

Description

These zoom stereo microscopes are ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the it is the perfect instrument for viewing any three-dimensional specimen or large objects. WP-7F features a simul-focal trinocular head which means the photo port and both eyepieces can be used simultaneously.

A hinged, spring-mounted arm promises versatility and provides ample space for the desired positioning over the bench-top, saving valuable work space. Each movement is individually adjusted and precisely positioned. The microscope can briefly be brought into place and returned again without difficulty.

Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty.

ITEM NO. HEAD EYEPIECES MAGNIFICATION STAND

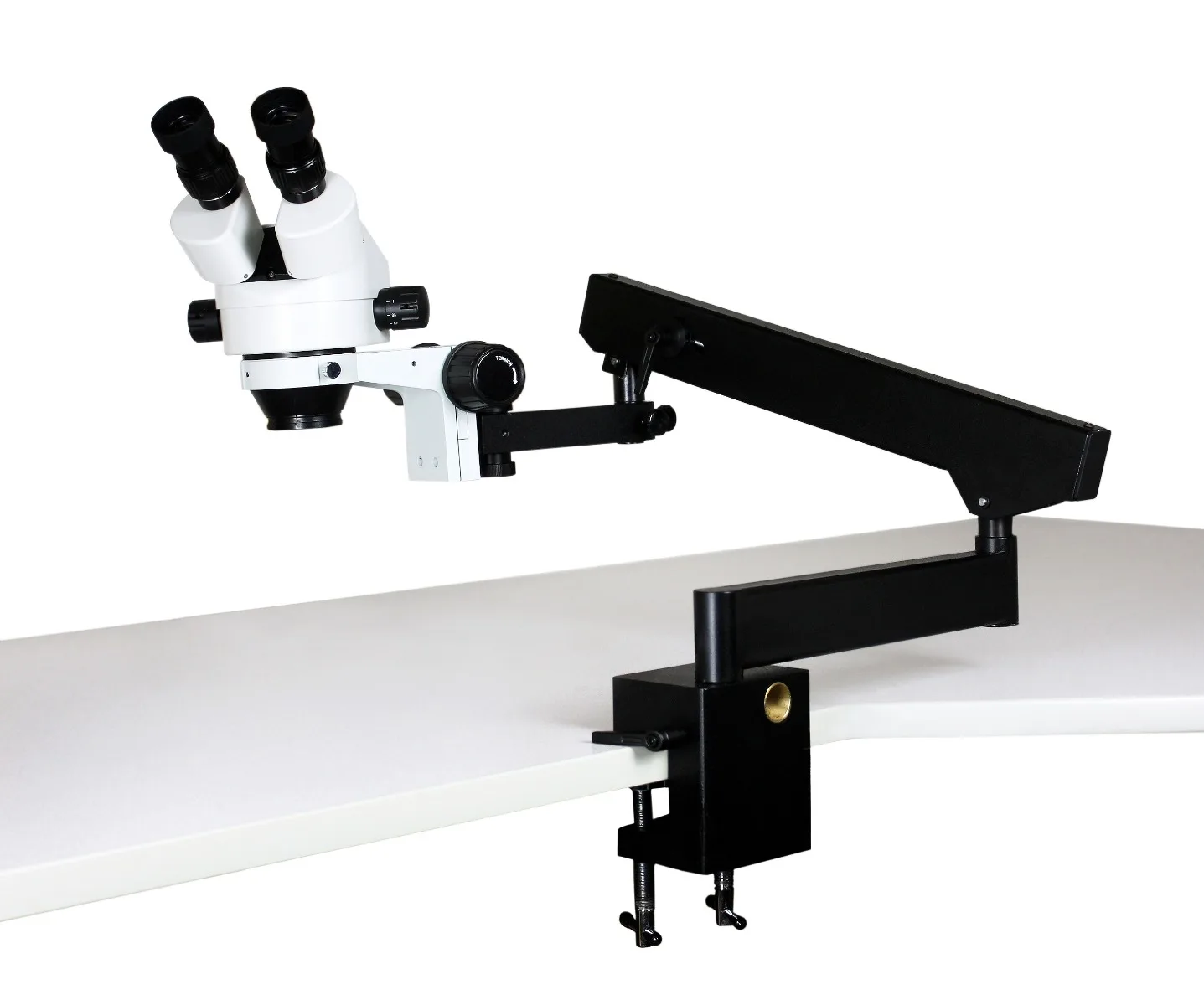

WP-7E Binocular 10X WF 7.0X to 45X Articulating Arm Clamp Stand

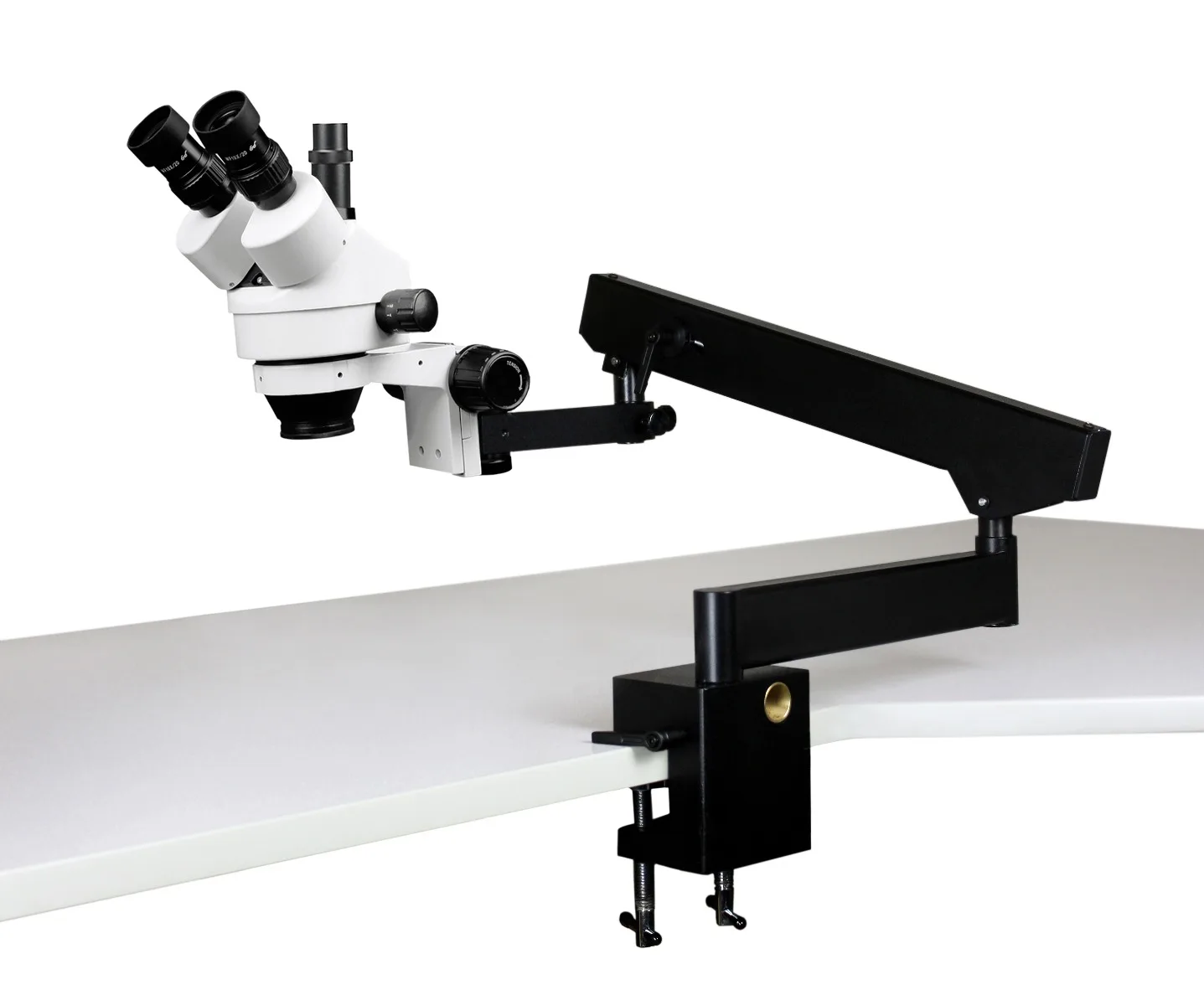

WP-7F Trinocular 10X WF 7.0X to 45X Articulating Arm Clamp Stand

Compatible with a wide range of accessories (links are below)

Specifications

Model WP-7E WP-7F
Head Binocular, 45° inclined, rotates 360°. Bilateral interpupillary adjustment of 54-76mm Simul-focal trinocular, 45° inclined, rotates 360°. C-mount ready. Bilateral interpupillary adjustment of 54-76mm
Head Movement X, Y, and Z axes
Eyepieces Paired 10X WF / 22mm high eyepoint. Both ocular tubes have a diopter adjustment of ±6. 2½” field of view
Magnification Range 7X – 45X
Zoom Range 0.7X – 4.5X
Zoom Ratio 1:6.4
Working Distance 100mm standard
Focusing Heavy duty rack and pinion focusing arm with tension adjustment
Stand Articulating arm clamp stand
Light Source None
Dimensions
 18″ x 16″ x 22″



Additional information

Weight 32.0 kg
