Description
These zoom stereo microscopes are ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the it is the perfect instrument for viewing any three-dimensional specimen or large objects. WP-3F features a simul-focal trinocular head which means the photo port and both eyepieces can be used simultaneously.
The solid cross block and brass inserts improve movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating, swiveling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas; making it sure to meet your flexibility requirements.
Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty.
| ITEM NO. | HEAD | EYEPIECES | MAGNIFICATION | STAND |

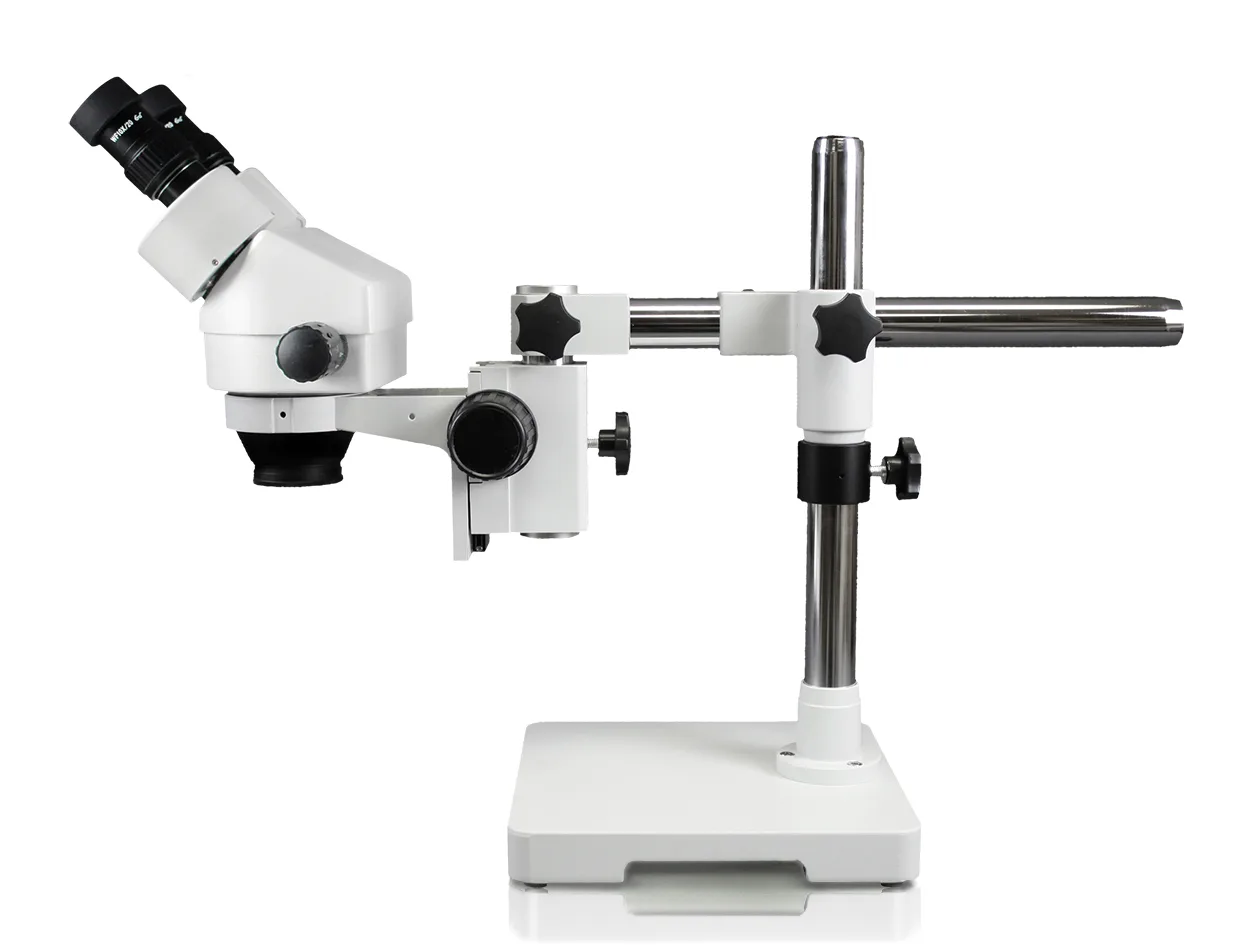

| WP-3E | Binocular | 10X WF | 7.0X to 45X | Single Arm Boom Stand |

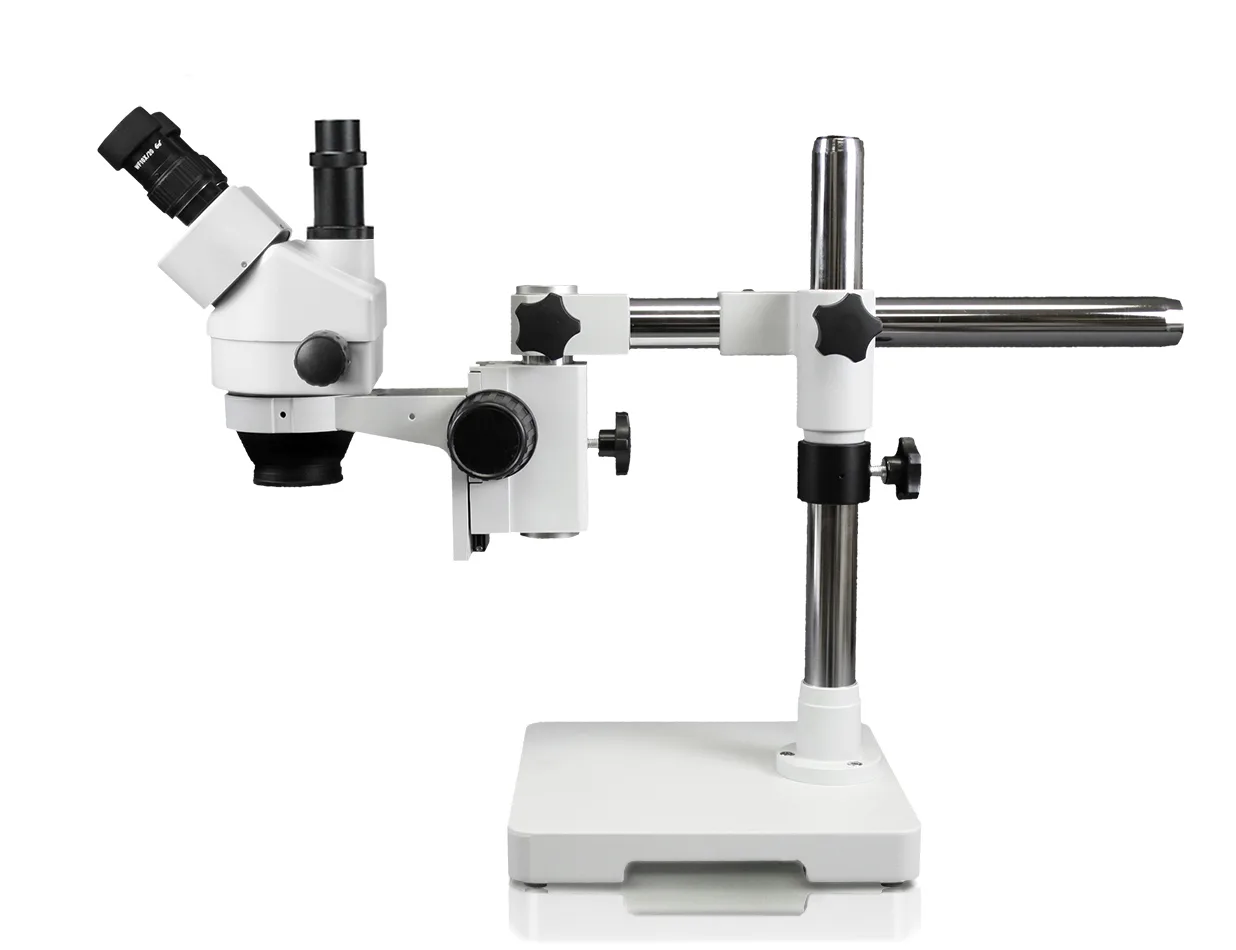

| WP-3F | Trinocular | 10X WF | 7.0X to 45X | Single Arm Boom Stand |
Specifications
| Model | WP-3E | WP-3F |
| Head | Binocular, 45° inclined, rotates 360°. Bilateral interpupillary adjustment of 54-76mm | Simul-focal trinocular, 45° inclined, rotates 360°. C-mount ready. Bilateral interpupillary adjustment of 54-76mm |
| Eyepieces | Paired 10X WF / 22mm high eyepoint. Both ocular tubes have a diopter adjustment of ±6. 2½” field of view | |
| Magnification Range | 7X – 45X | |
| Zoom Range | 0.7X – 4.5X | |
| Zoom Ratio | 1:6.4 | |
| Working Distance | v | |
| Focusing | Heavy duty rack and pinion focusing arm with tension adjustment | |
| Stand | Single arm boom stand with heavy rectangular base | |
| Light Source | None | |
| Dimensions |
18″ x 12″ x 22″ | |
