WP-1A Series Zoom Stereo Microscopes with Large Base Pillar Table Stand

WP-1A Series Zoom Stereo Microscopes with Large Base Pillar Table Stand
WP-1A Series Zoom Stereo Microscopes with Large Base Pillar Table Stand - Image 2

WP-1A Series Zoom Stereo Microscopes with Large Base Pillar Table Stand

SKU WP-1A Series Zoom Stereo Microscopes

  • 45° inclined head, which rotates 360°. Simul-focal trinocular head allows the photo port and both eyepieces to be used simultaneously
  • Both ocular tubes are diopter adjustable, to compensate for eye-strength difference when needed
  • 7X – 45X standard magnification range, and a field of view of 2 ½”
  • The parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
  • Pillar stand offers a long and flexible working distance, while the large table-top base provides a solid foundation to fit your observational needs. The black and white reversible stage plate provides a contrasting background for the specimen, while the stage clips secure it in place
  • Heavy and stable support arm with a lock-screw to position the 360° rotatable optical body
  • Precise, heavy-duty rack and pinion focusing mechanism, with large knobs and adjustable tension control

Description

These zoom stereo microscopes are ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional or temperature-sensitive specimen or object. WP-1AF features a simul-focal trinocular head which means the photo port and both eyepieces can be used simultaneously.

The compact, thin design of the large base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls. The pillar stand provides a long working distance, to offer flexibility when working with small or large samples.

Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty.

ITEM NO. HEAD EYEPIECES MAGNIFICATION STAND

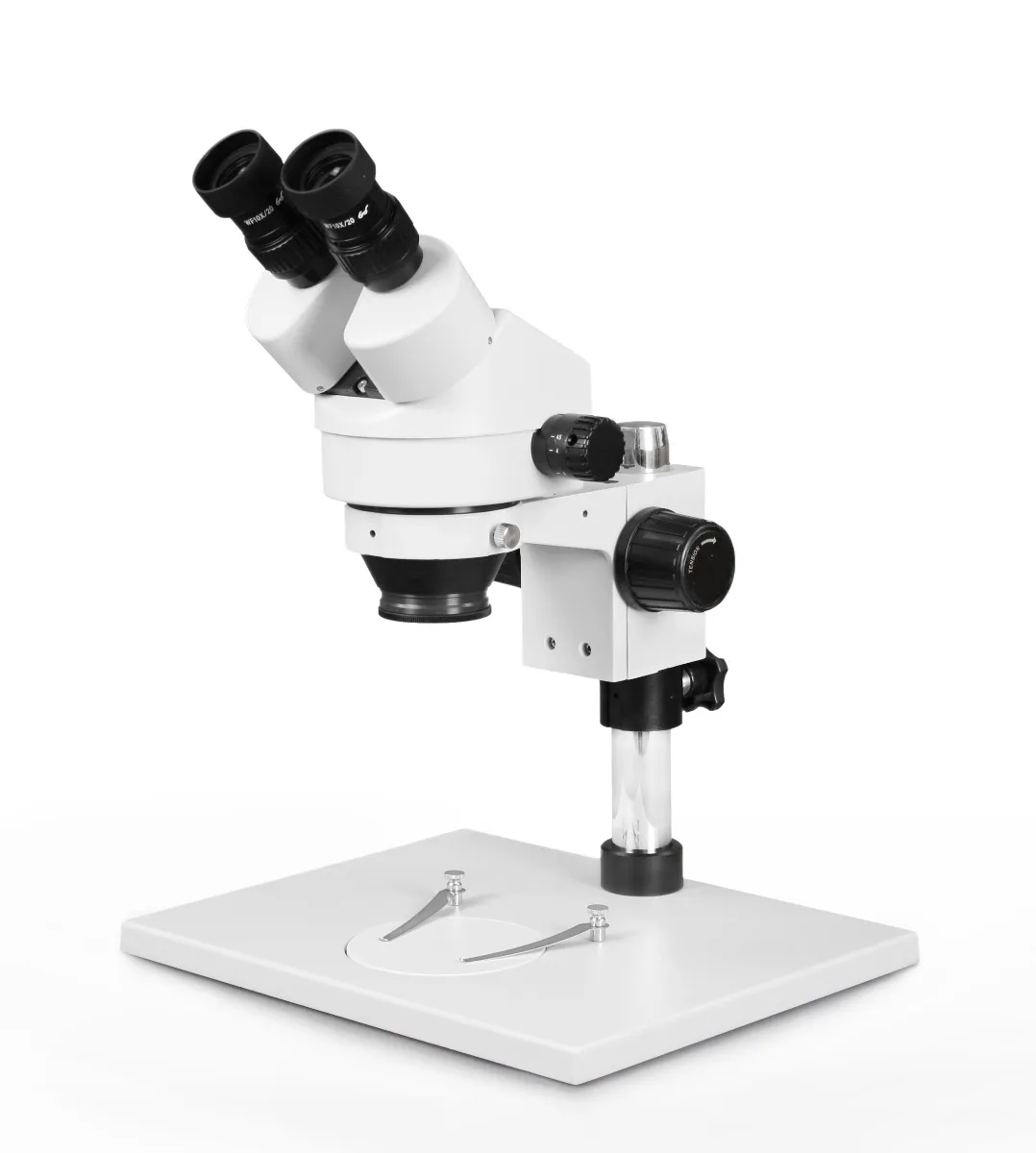

WP-1AE Binocular 10X WF 7.0X to 45X Pillar Stand with Large Base

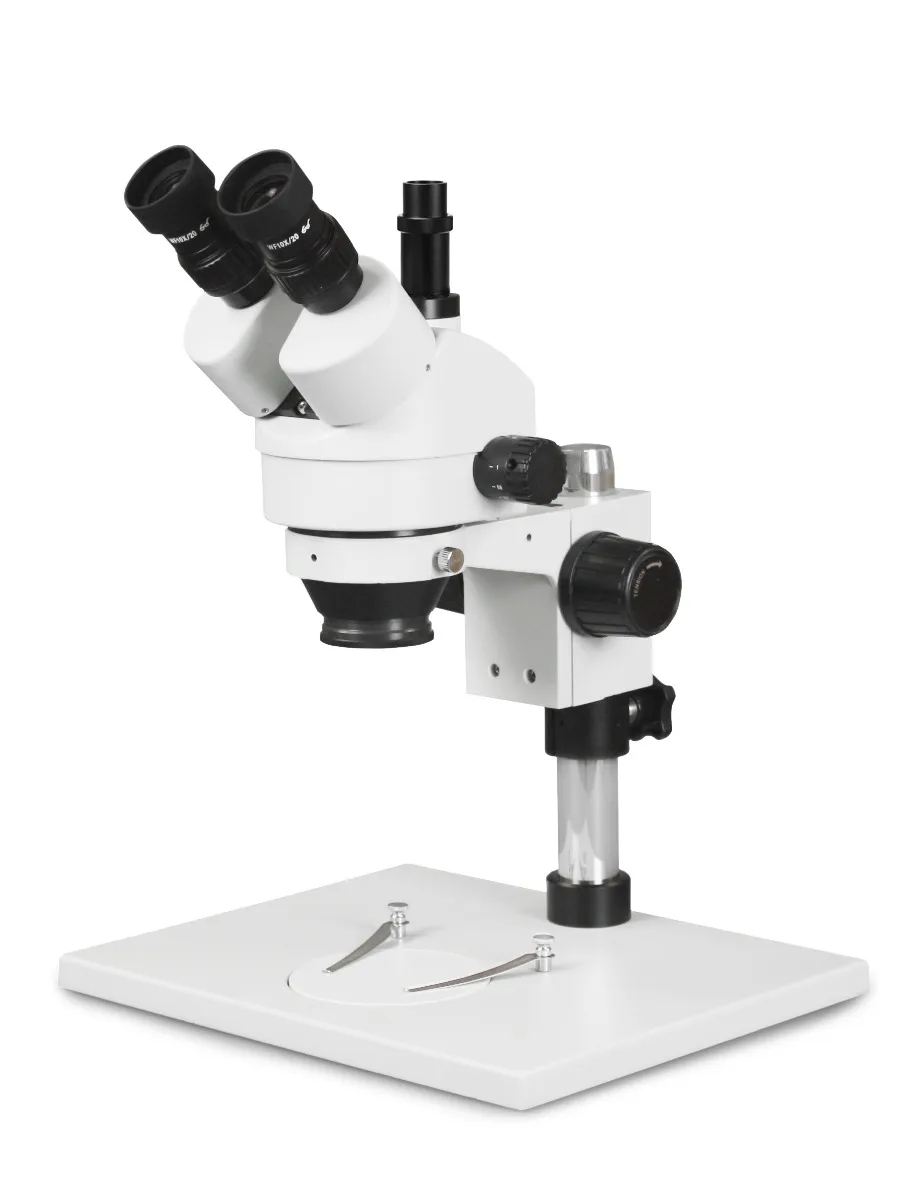

WP-1AF Trinocular 10X WF 7.0X to 45X Pillar Stand with Large Base

Compatible with a wide range of accessories (links are below)

Specifications

Model WP-1AE WP-1AF
Head Binocular, 45° inclined, rotates 360°. Bilateral interpupillary adjustment of 54-76mm Simul-focal trinocular, 45° inclined, rotates 360°. C-mount ready. Bilateral interpupillary adjustment of 54-76mm
Eyepieces Paired 10X WF / 22mm high eyepoint. Both ocular tubes have a diopter adjustment of ±6. 2½” field of view
Magnification Range 7X – 45X
Zoom Range 0.7X – 4.5X
Zoom Ratio 1:6.4
Working Distance Up to 8″ vertical movement. Up to 4″ optical working distance
Focusing Heavy duty rack and pinion focusing arm with tension adjustment
Stage Black & white reversible stage plate, paired spring loaded stage clips
Stand Pillar stand with large rectangular table base, heavy support arm rotates 360° with a screw-lock
Light Source None
Dimensions
 15″ x 14″ x 10″



Additional information

Weight 11.5 kg
