Description
These zoom stereo microscopes are ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects. WP-2AF features a simul-focal trinocular head which means the photo port and both eyepieces can be used simultaneously.
A friction collar secures the peg and allows the microscope to rotate around a vertical axis. Rotating, swiveling, and tilting functionalities allow for routine inspection of large samples not requiring constant horizontal movement of the microscope. It is built with a premium hard-coat anodized finish, making it abrasion-resistant, and giving it a hard surface.
Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty.
| ITEM NO. | HEAD | EYEPIECES | MAGNIFICATION | STAND |

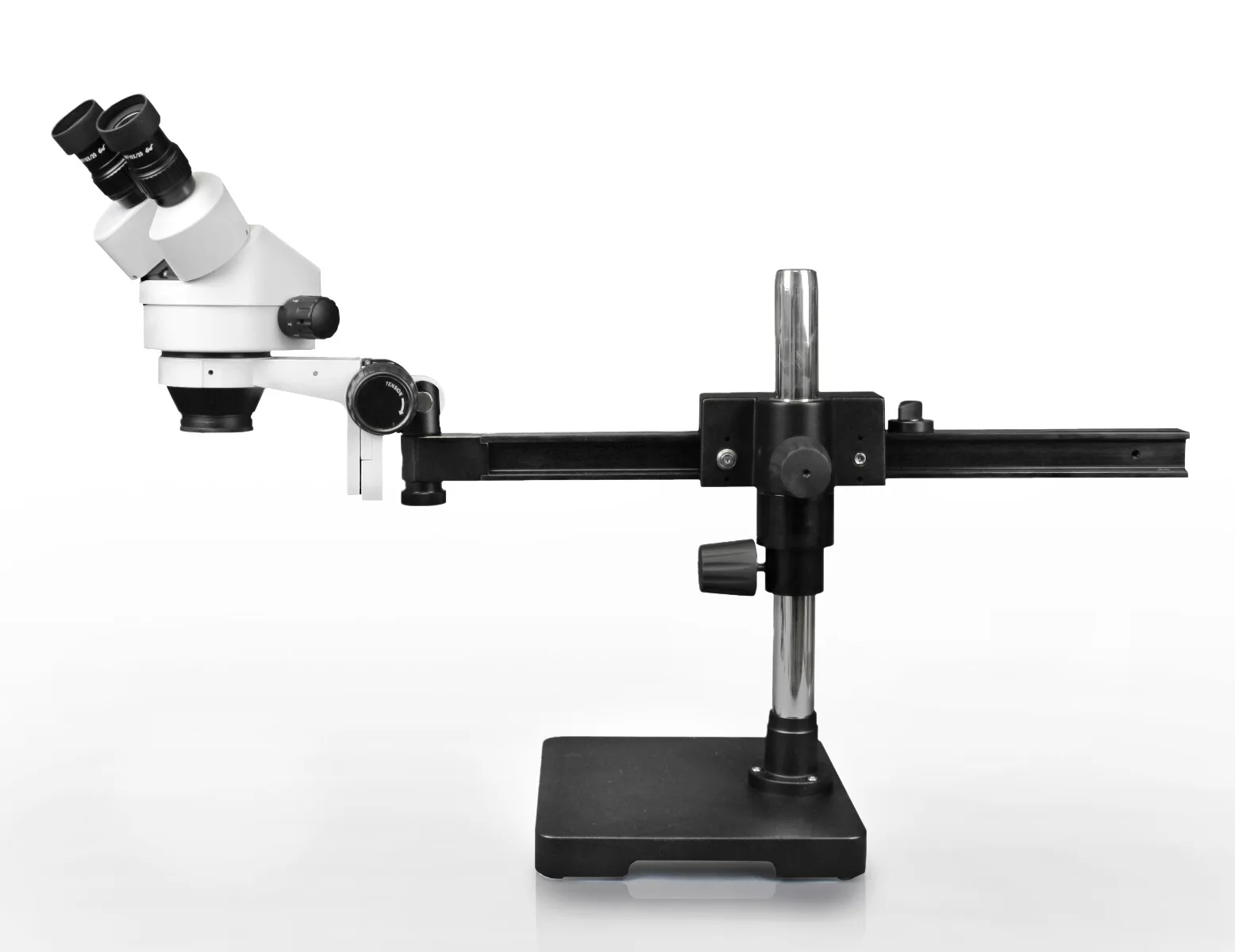

| WP-2AE | Binocular | 10X WF | 7.0X to 45X | Gliding Arm Boom Stand |

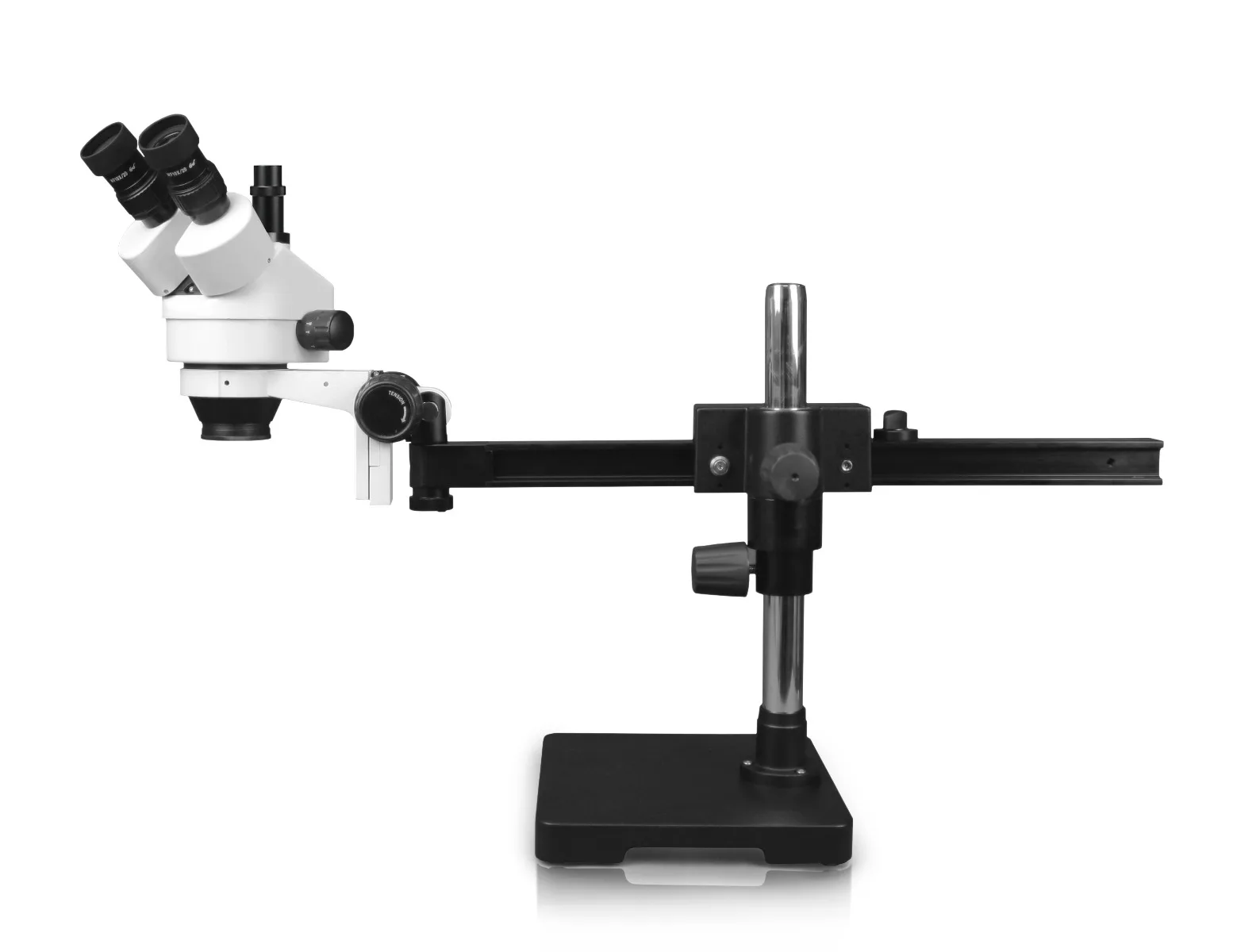

| WP-2AF | Trinocular | 10X WF | 7.0X to 45X | Gliding Arm Boom Stand |
Specifications
| Model | WP-2AE | WP-2AF |
| Head | Binocular, 45° inclined, rotates 360°. Bilateral interpupillary adjustment of 54-76mm | Simul-focal trinocular, 45° inclined, rotates 360°. C-mount ready. Bilateral interpupillary adjustment of 54-76mm |
| Eyepieces | Paired 10X WF / 22mm high eyepoint. Both ocular tubes have a diopter adjustment of ±6. 2½” field of view | |
| Magnification Range | 7X – 45X | |
| Zoom Range | 0.7X – 4.5X | |
| Zoom Ratio | 1:6.4 | |
| Working Distance | 100mm standard | |
| Focusing | Heavy duty rack and pinion focusing arm with tension adjustment | |
| Stand | Gliding arm boom stand with heavy rectangular base | |
| Light Source | None | |
| Dimensions |
24″ x 10″ x 17″ | |
