Description

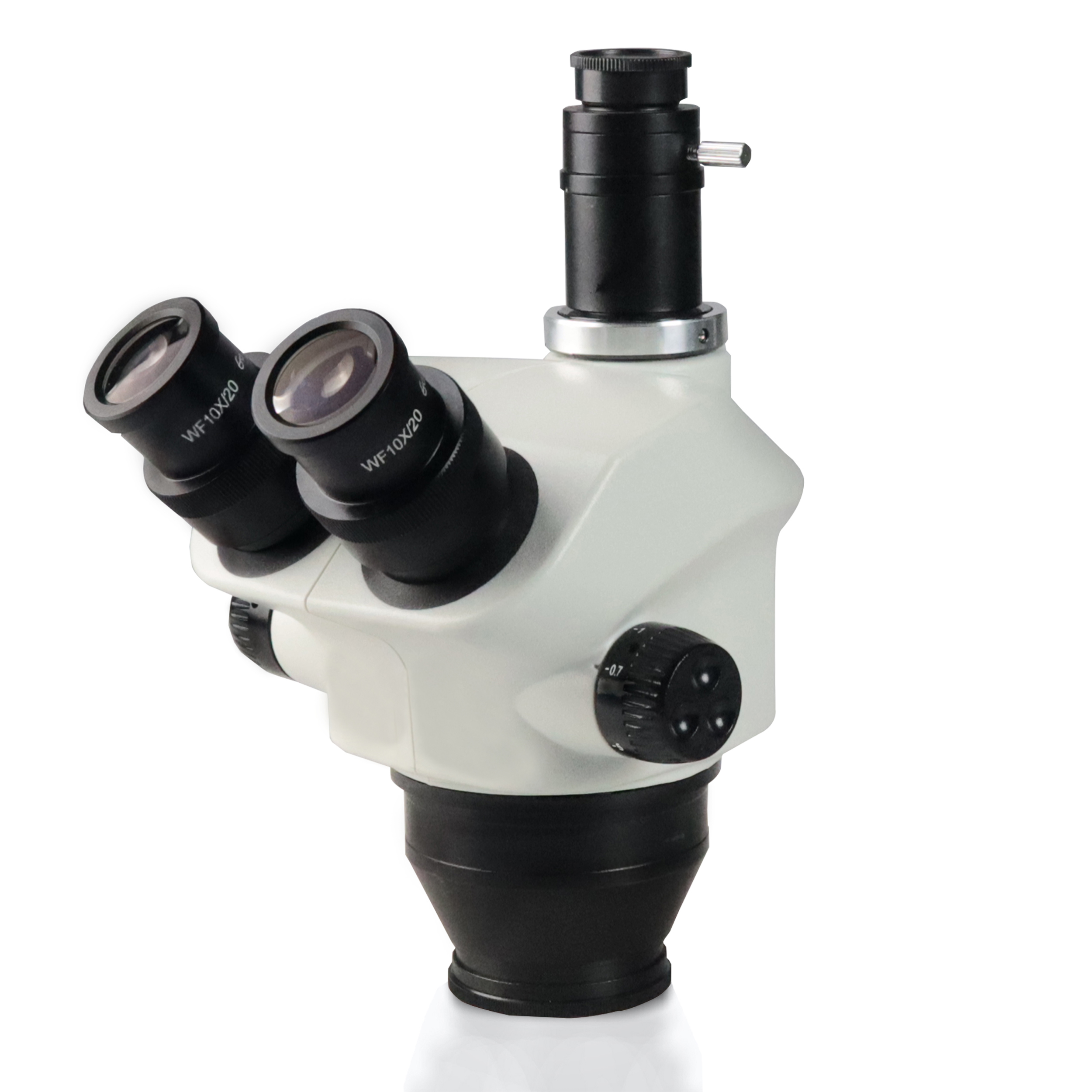

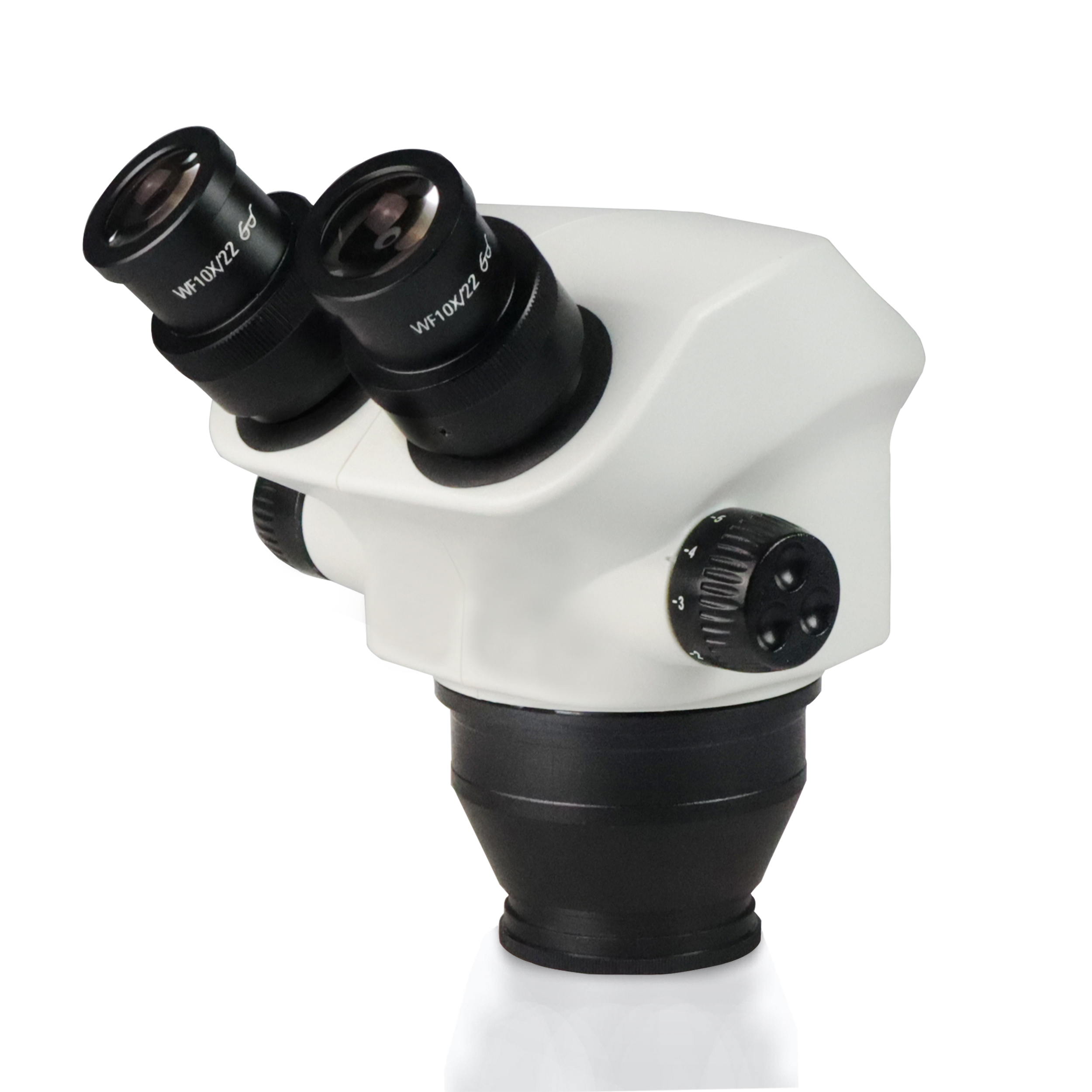

These zoom stereo microscope heads feature paired 10X wide-field high-eyepoint eyepieces with diopter adjustment on both eyepieces, synchronized bi-lateral interpupillary adjustment and a calibrated zoom range operable on both sides of the head. The standard magnification range is 7X to 50X but is able to be increased or reduced using compatible eyepieces and auxiliary lenses. The trinocular head is simul-focal which means the photo port and both eyepieces can be used simultaneously. The trinocular head is excellent for photo or video microscopy when connected with a digital camera.
Specifications
| Model | QZH-BH | QZI-TH |
| Head | Binocular head, 45° inclined, rotates 360° | Simul-focal trinocular head, 45° inclined, rotates 360° 40/60 light splitting ratio |
| Interpupillary Adjustment | Synchronized, bi-lateral adjustment of 55mm to 75mm | |
| Eyepieces | Paired 10X WF high-eyepoint eyepieces, rubber eye guards included, diopter adjustment of ±6 on both ocular tubes | |
| Objective Range | 0.7X to 5.0X | |
| Zoom Ratio | 1:7.1 | |
| Working Distance | 100mm | |
