Description

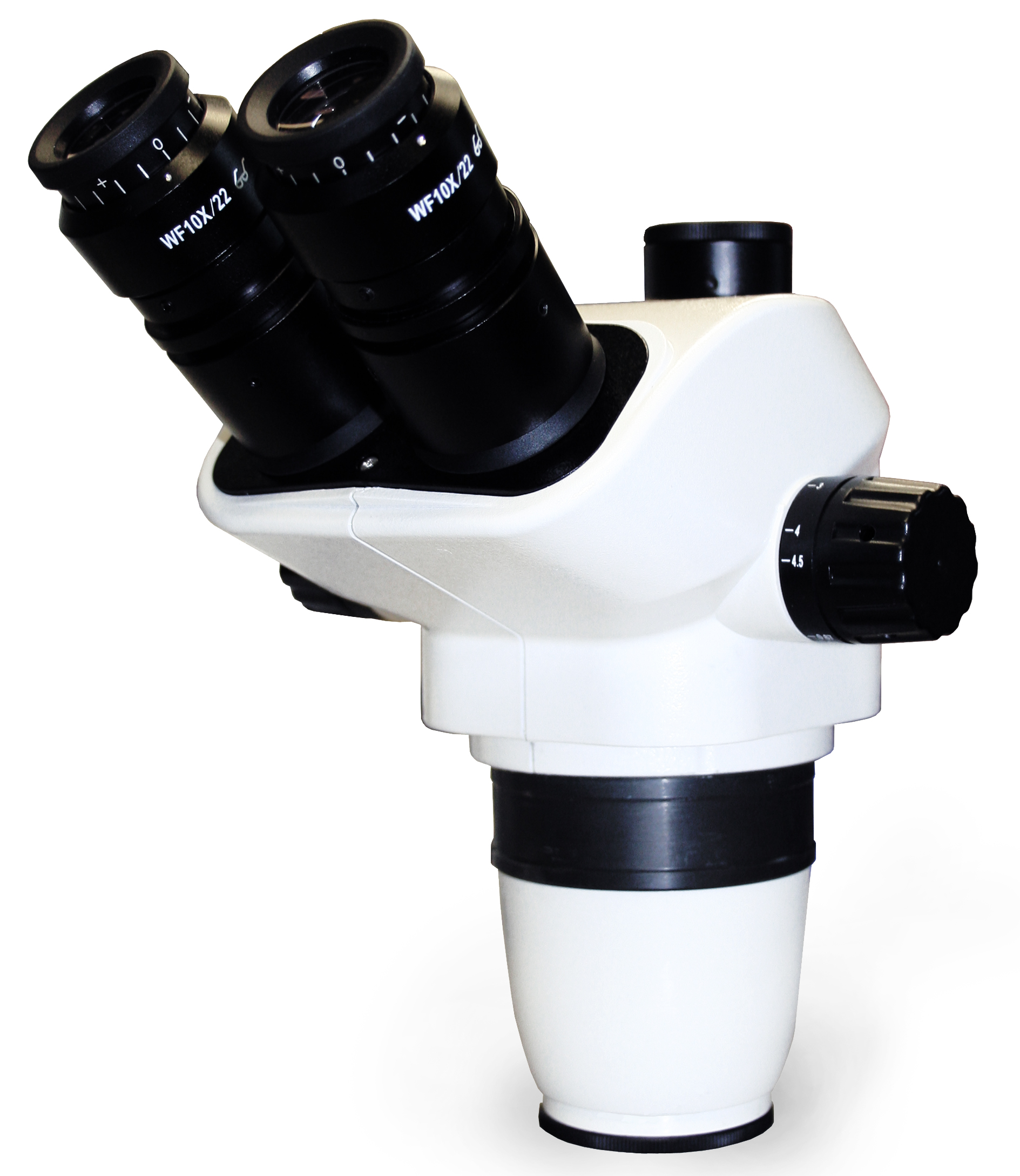

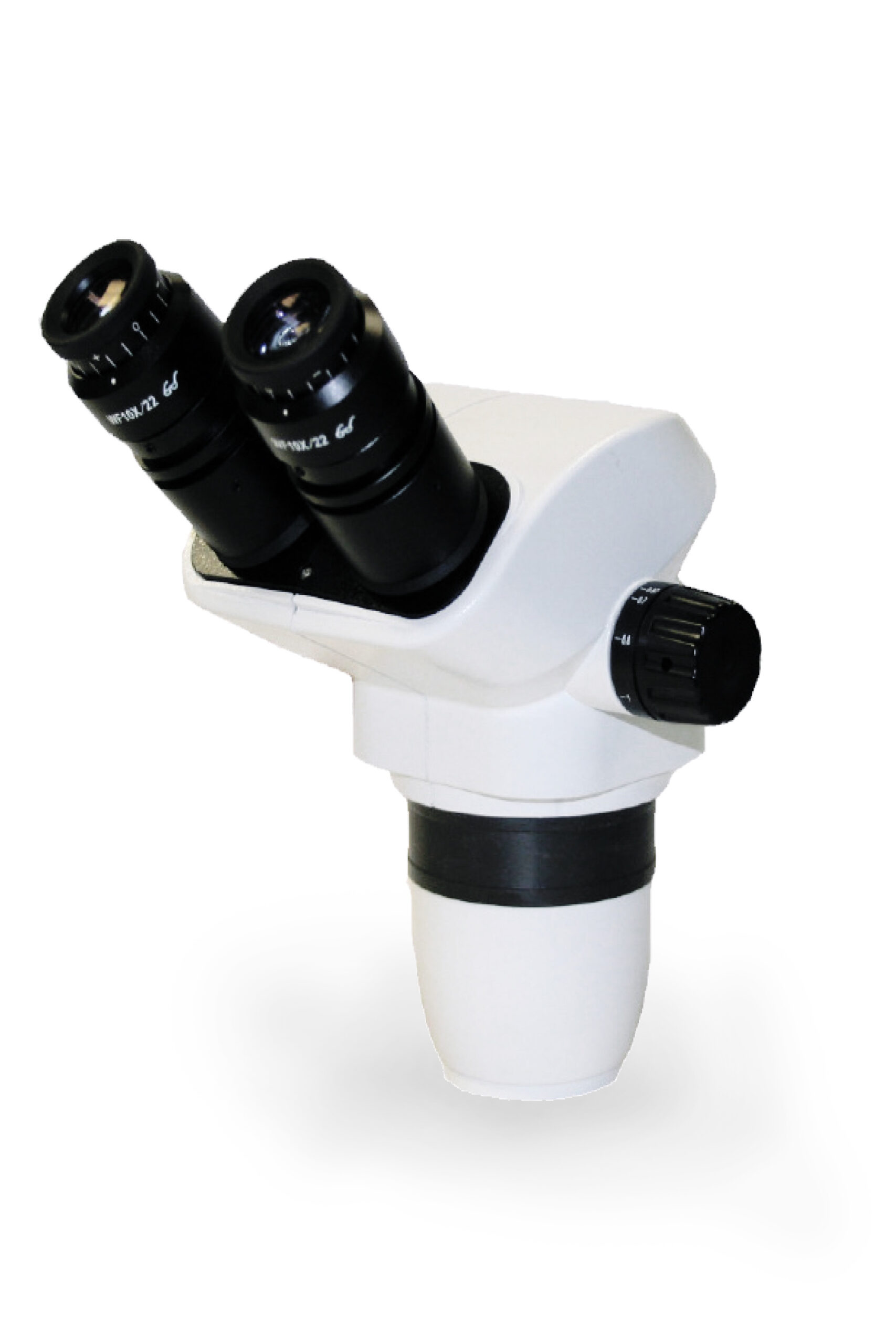

These microscope heads have a fully coated optical system which provides a sharp and clear image with extremely good flatness and contrast. Features include paired 10X wide-field, high-eyepoint eyepieces with diopter adjustment on both eyepieces, interpupillary adjustment from 54mm to 76mm, and focusing knobs on both sides of the head with tension adjustment. The standard magnification range is 6.7X to 45X but is able to be increased or reduced using compatible eyepieces and auxiliary lenses. The trinocular head is excellent for photo or video microscopy when connected with a digital camera.
Specifications
| Model | QZA-BH | QZB-TH |
| Head | Binocular head, 45° inclined, rotates 360° | Trinocular head, 45° inclined, rotates 360° 50/50 light splitting ratio |
| Interpupillary Adjustment | Synchronized, bi-lateral adjustment of 54mm to 76mm | |
| Eyepieces | Paired 10X WF high-eyepoint eyepieces, rubber eye guards included, diopter adjustment of ±5 on both ocular tubes | |
| Objective Range | 0.67X to 4.5X | |
| Zoom Ratio | 1:6.7 | |
| Working Distance | 105mm | |
