Description

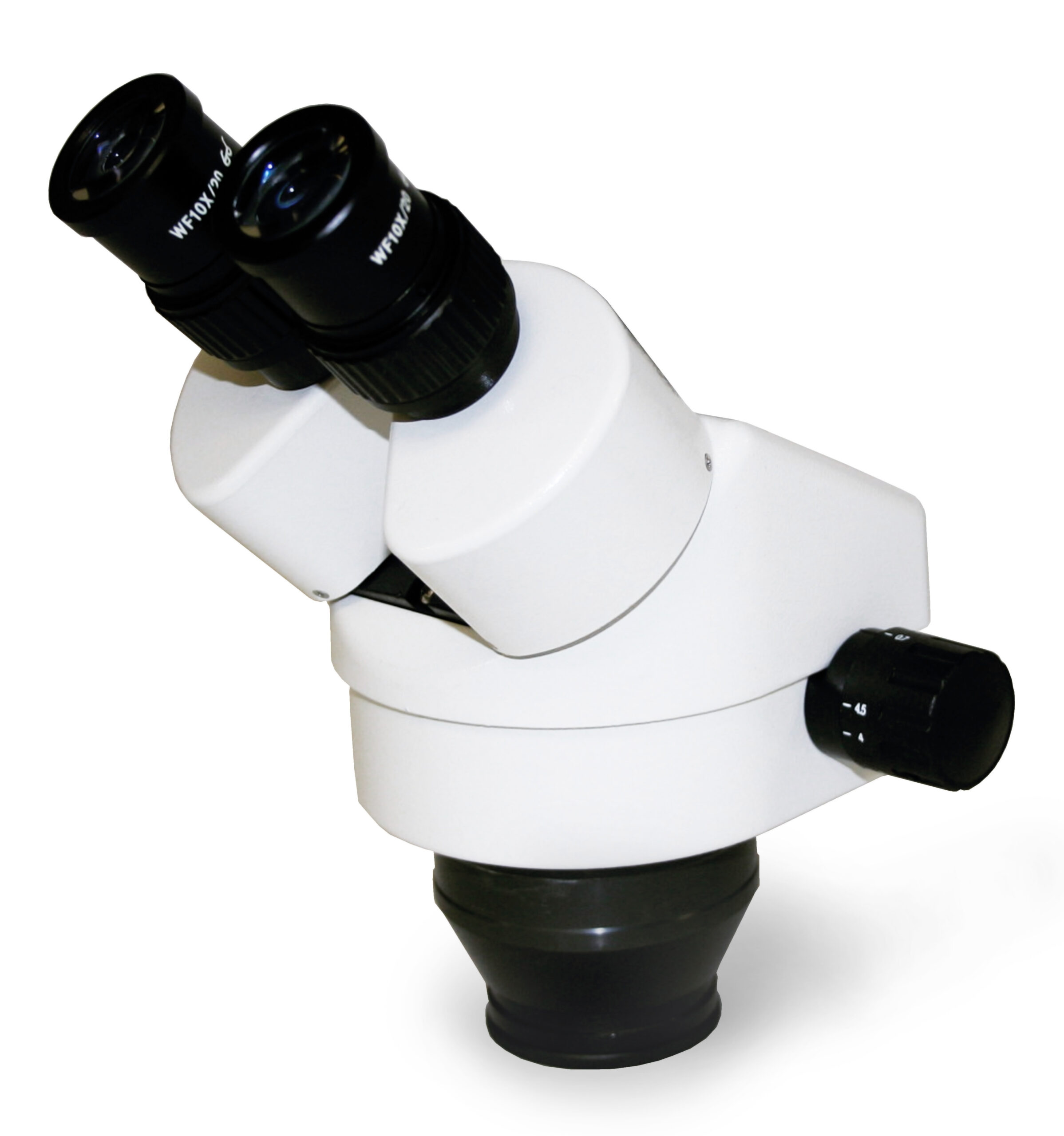

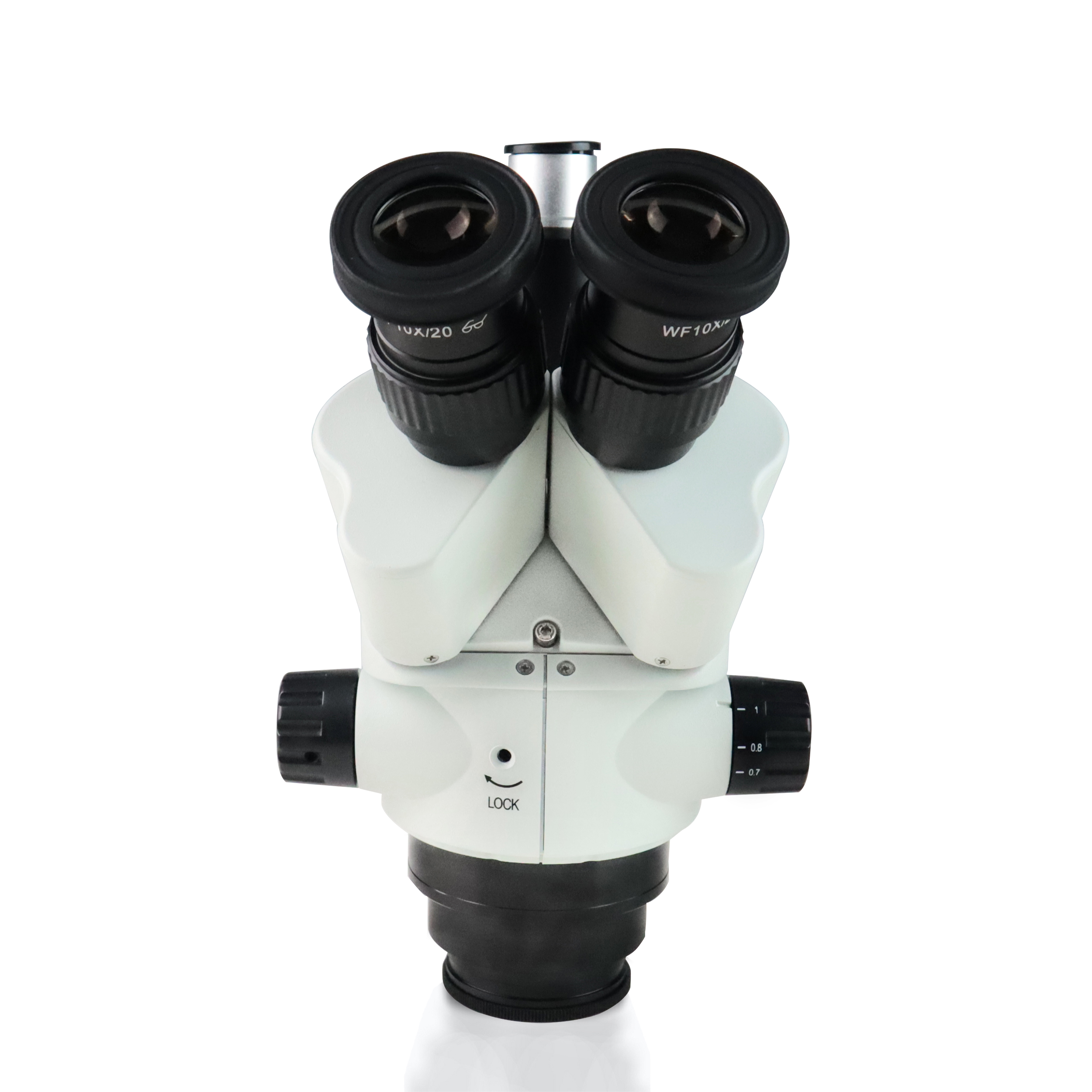

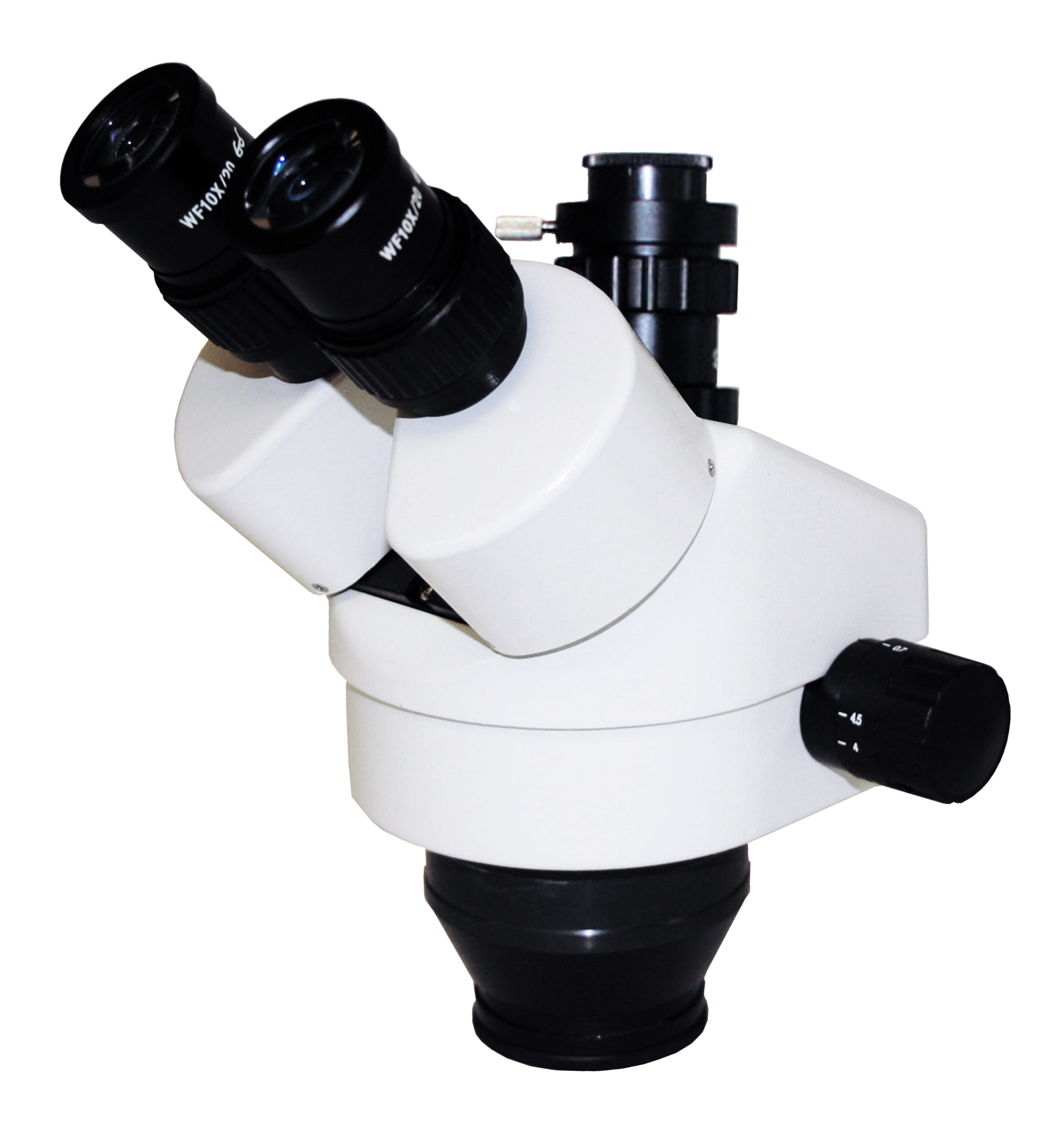

These zoom stereo microscope heads are ideal for laboratory and industrial applications. Features include paired 10X wide-field, high-eyepoint eyepieces with diopter adjustment on both eyepieces, synchronized bi-lateral interpupillary adjustment and a calibrated zoom range operable on both sides of the head. The standard magnification range is 7X to 45X but is able to be increased or reduced using compatible eyepieces and auxiliary lenses. The trinocular head is simul-focal which means the photo port and both eyepieces can be used simultaneously. Optional zoom lock is available on trinocular head to maintain a fixed magnification for calibrated measurement applications.
Specifications
| Model | QZE-BH | QZF-TH | QZF-THL |
| Head | Binocular head, 45° inclined, rotates 360° | Simul-focal trinocular head, 45° inclined, rotates 360° 20/80 light splitting ratio |
|
| Interpupillary Adjustment | Synchronized, bi-lateral adjustment of 52mm to 75mm | ||
| Eyepieces | Paired 10X WF high-eyepoint eyepieces, rubber eye guards included, diopter adjustment of ±6 on both ocular tubes | ||
| Objective Range | 0.7X to 4.5X | 0.7X to 4.5X, Lockable zoom | |
| Zoom Ratio | 1:6.4 | ||
| Working Distance | 100mm | ||
