Description

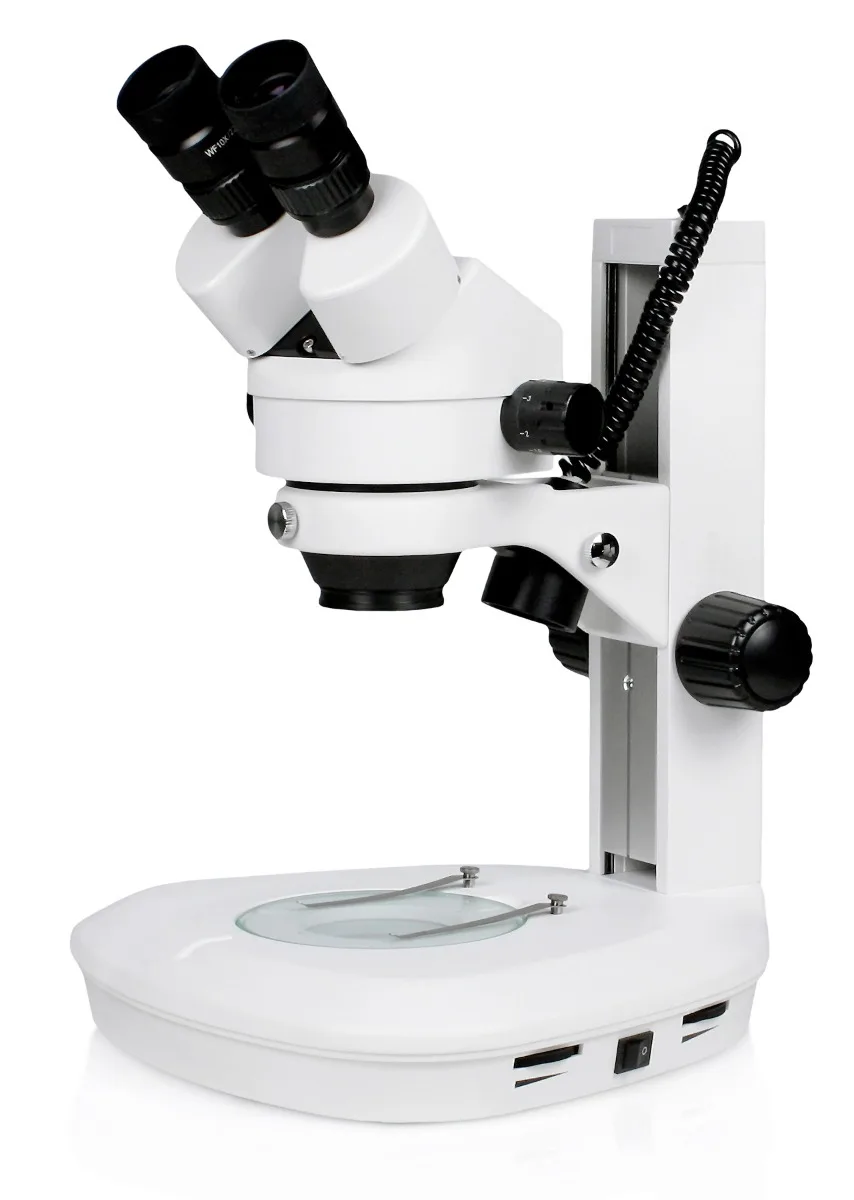

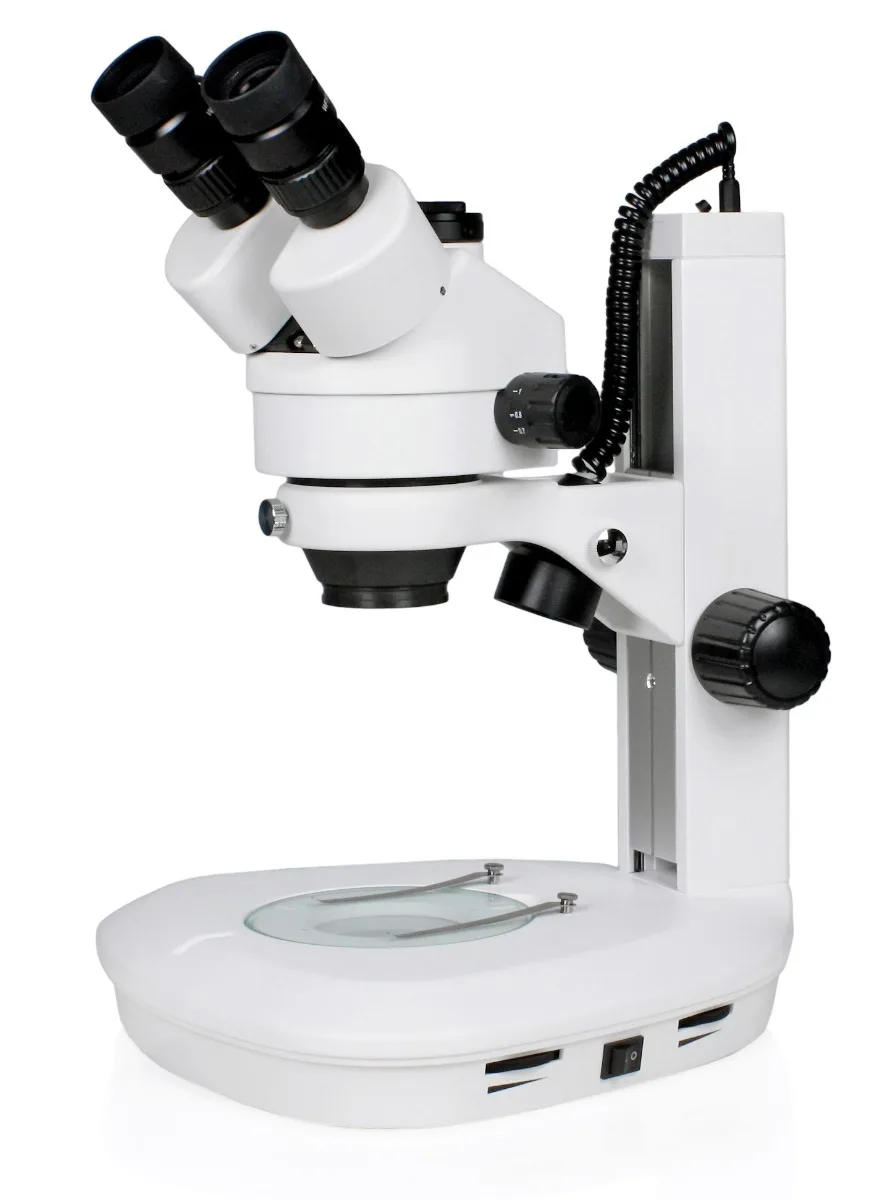

The QZE/QZF Series is ideal for studying living organisms, dissecting small specimens, studying crystalline or rock structure, and performing electronic or small part inspections. It offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments, and is designed to fit with a variety of lens accessories to increase or reduce magnification. Smooth in operation, it has a calibrated zoom range operable on both sides of the head. The trinocular model is excellent for photo or video microscopy when connected with a digital camera. Comes with a 5 year limited warranty.
Specifications
| Model | QZE | QZF |
| Body | All metal construction | |
| Head |
Binocular head, 45° inclined, rotates 360° | Simul-Focal trinocular head, 45° inclined, rotates 360° 20/80 light splitting ratio |
| Interpupillary Adjustment | Synchronized, bi-lateral adjustment of 54mm to 76mm | |
| Eyepiece | Paired 10X WF eyepieces, rubber eye guards included, diopter adjustment of ±6 on both ocular tubes | |
| Objective Range |
0.7X to 4.5X | |
| Zoom Ratio | 1:6.4 | |
| Stage | 95mm black/white stage plate, 95mm frosted stage plate, locked-on spring loaded stage clips | |
| Focusing System |
Heavy duty rack and pinon focusing with slip clutch and tension adjustment | |
| Working Distance | 100mm | |
| Illumination | Top/Bottom LED illumination, separate light intensity control for each light, top light is diagonally adjustable | |
| Power | 3-wire grounded power cord | |
| Accessories | Vinyl dust cover and user manual | |
| Warranty | Limited 5 year | |
Optional Auxiliary Lens
| Item No. | Auxilary Lens | Working Distance | 10X Eyepiece | 15X Eyepiece | 20X Eyepiece | |||
| Total Magnification | Field Diameter | Total Magnification | Field Diameter | Total Magnification | Field Diameter | |||
| AX13 | 0.3X | 287mm | 2.1X – 13.5X | 70.8mm – 12.1mm | 3.2X – 20.3X | 55.0mm – 10.2mm | 4.2X – 27.0X | 38.4mm – 6.3mm |
| AX14 | 0.7X | 117mm | 5.3X – 33.8X | 35.1mm – 5.6mm | 7.9X – 50.6X | 27.6mm – 4.3mm | 10.5X – 67.5X | 17.8mm – 2.9mm |
| AX15 | 0.5X | 165mm | 3.5X – 22.5X | 57.1mm – 8.9mm | 5.25X – 33.75X | 42.8mm – 6.7mm | 7.0X – 45.0X | 28.6mm – 4.4mm |
| AX16 | 1.5X | 45mm | 10.5X – 67.5X | 19.0mm – 3.0mm | 15.75X – 101.25X | 14.3mm – 2.2mm | 21.0X – 135.0X | 9.5mm – 1.5mm |
| AX17 | 2.0X | 30mm | 14.0X – 90.0X | 14.3mm – 2.2mm | 21X – 135X | 10.7mm – 1.7mm | 28X – 180X | 7.1mm – 1.1mm |
