Description
The M Series has a base designed to provide comfort while viewing, and stability while operating this instrument. A calibrated pointer provides actual measurements and a reversed nosepiece provides more working room on the stage area and facilitates easy slide changes. The built-in Köhler illumination system provides high contrast and evenly distributed light to the sample. A great instrument for industry and lab use. Comes with a 5 year limited warranty, excluding bulbs.
Specifications
| Model | M-M-100-LED | M-T-100-LED | M-B-100-LED | M-TT-100-LED |
| Body | Rugged cast metal stand with stain resistant finish | |||
| Head |

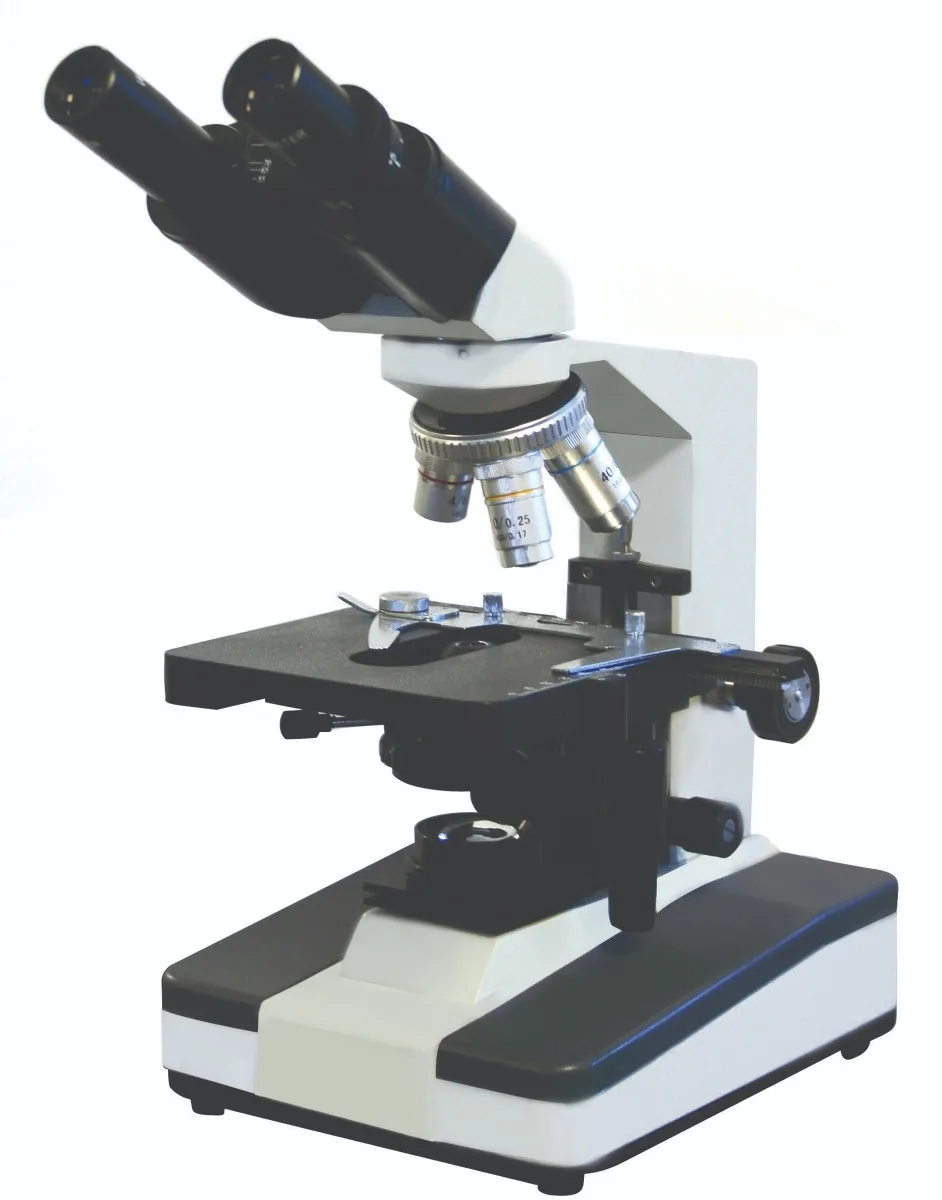

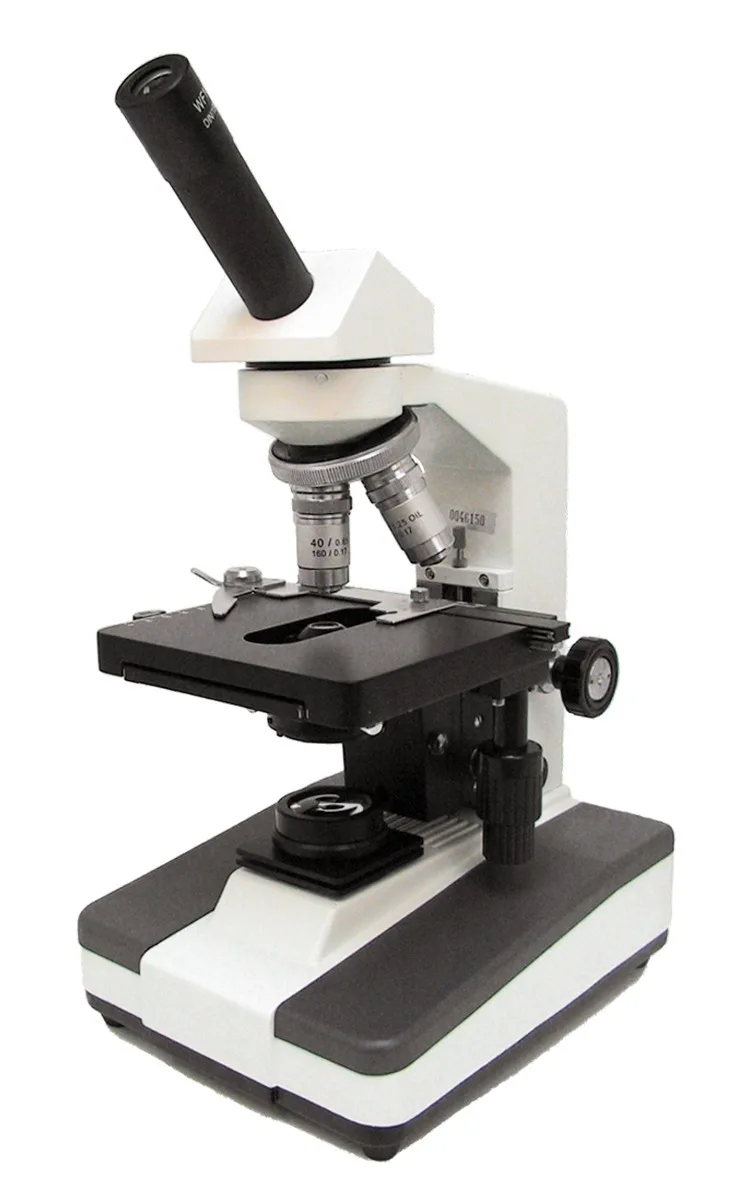

Monocular, 45° inclined, rotates 360° | Dual view, 45° inclined, rotates 360° | Binocular, 30° inclined, rotates 360° | Trinocular, 30° inclined, rotates 360° |
| Interpupillary Distance | N/A | 55mm to 75mm | ||
| Eyepiece | 10X wide-field eyepiece with calibrated pointer | Paired 10X wide-field eyepieces – one with calibrated pointer | ||
| Nosepiece | Four position reversed nosepiece with positive stop clicks | |||
| Objectives | 4X, 10X, 40XR, 100XR DIN achromatic objectives are color-coded, parfocaled and parcentered | |||
| Stage | 5.5″ x 5.25″ built-in double layer mechanical stage with smooth X/Y calibrated movement and cross travel range of 75mm x 50mm | |||
| Condenser | Rack and pinion 1.25 N.A. Abbe condenser | |||
| Diaphragm | Iris diaphragm with swing-out filter holder | |||
| Focusing System |
Separate coarse and fine focus control, gear movement for smooth operation | |||
| Illumination | LED Köhler illumination with light intensity control | |||
| Power | 3-wire grounded power cord | |||
| Accessories | Vinyl dust cover and user manual | |||
| Warranty | Limited 5 year | |||
| Model | M-CXM-100-LED | M-CXT-100-LED | M-CXB-100-LED | M-CXTT-100-LED |
| Body | Rugged cast metal stand with stain resistant finish | |||
| Head |

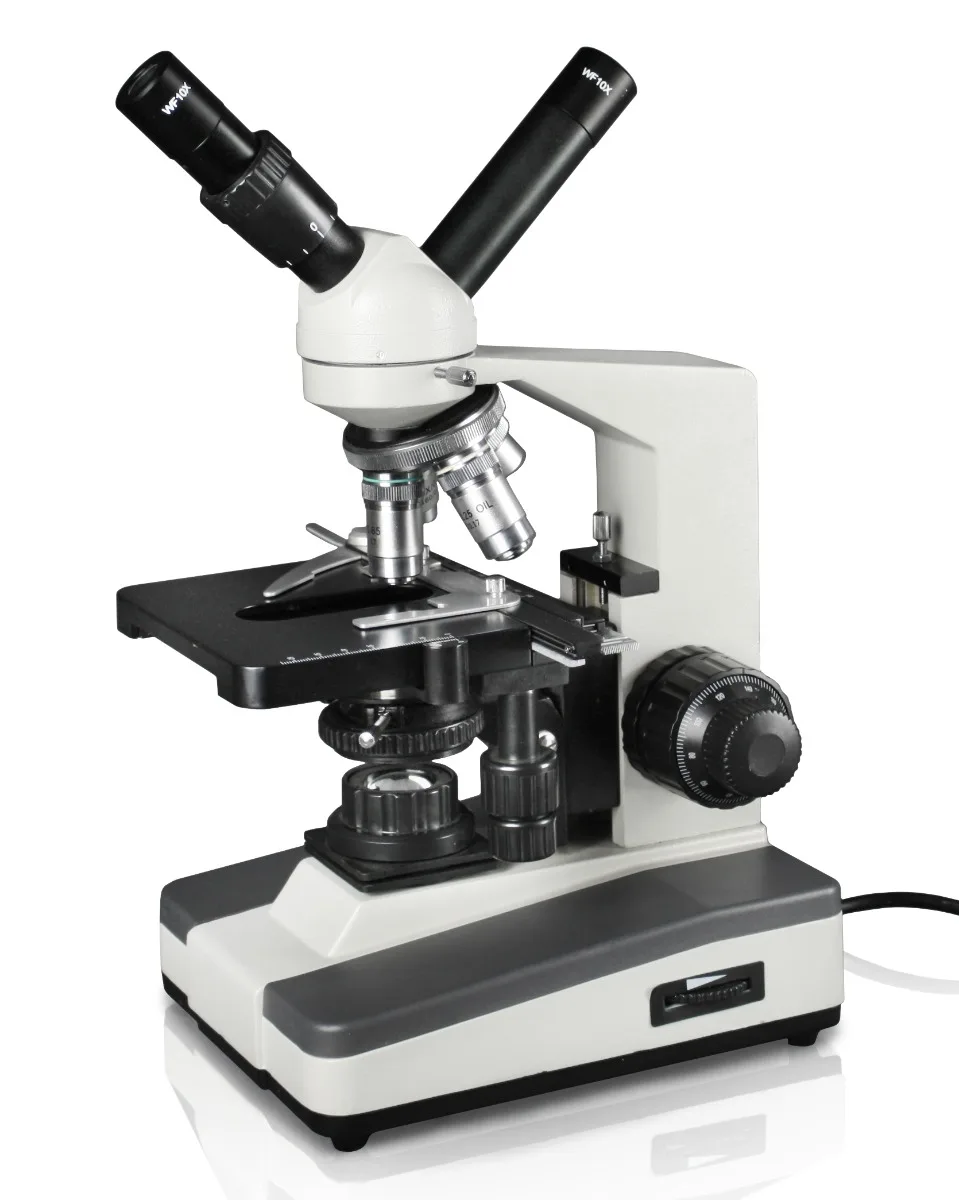

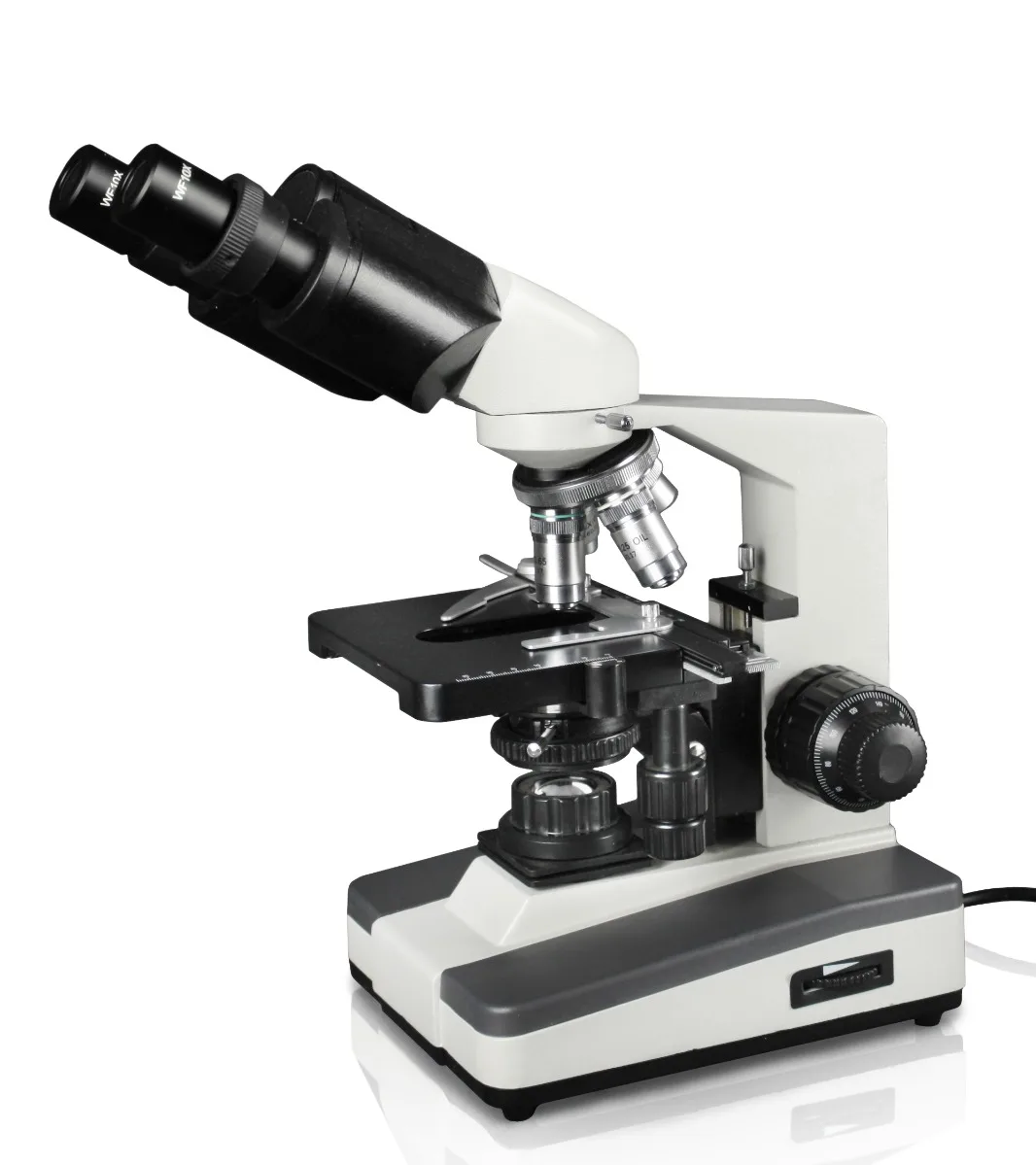

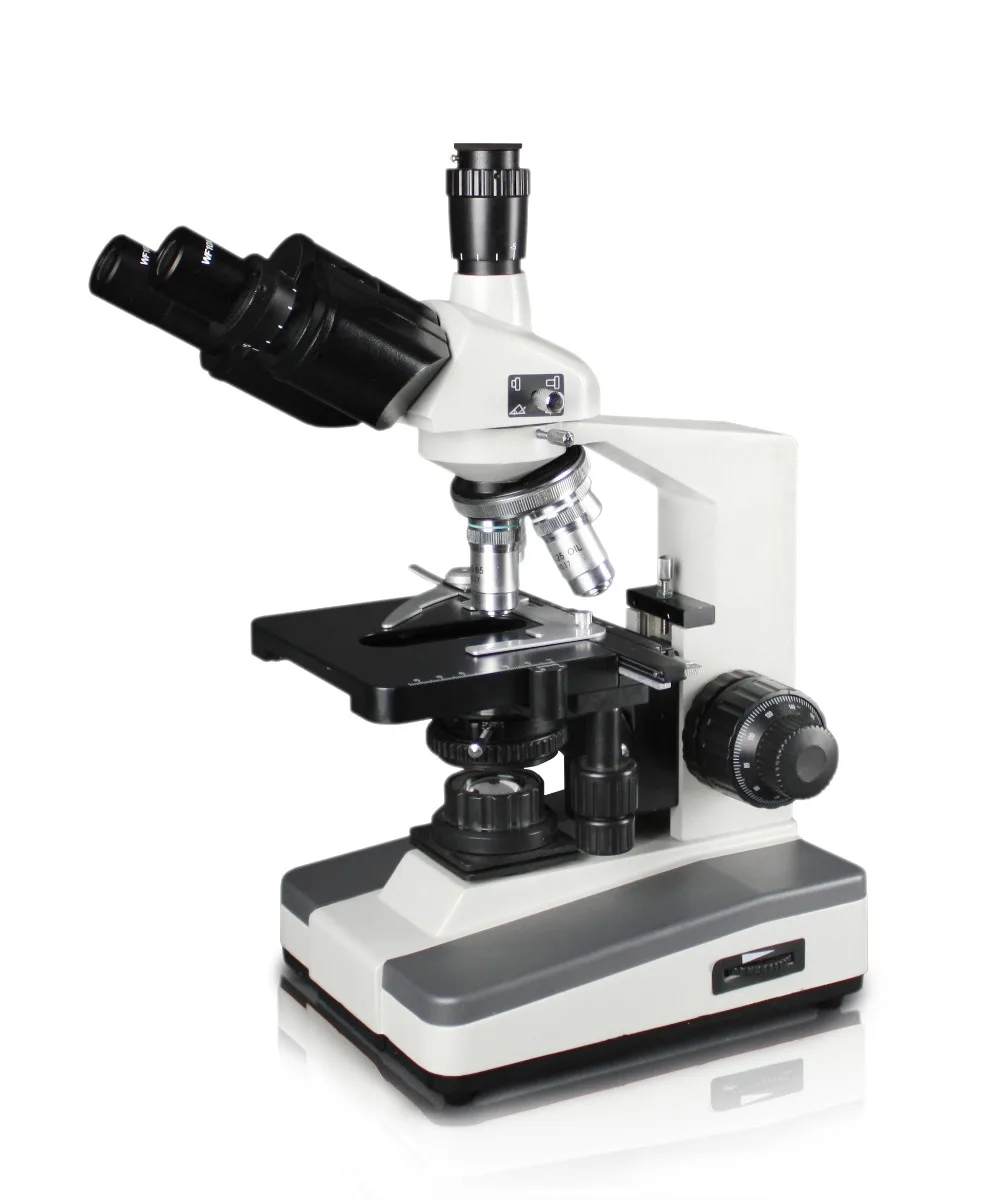

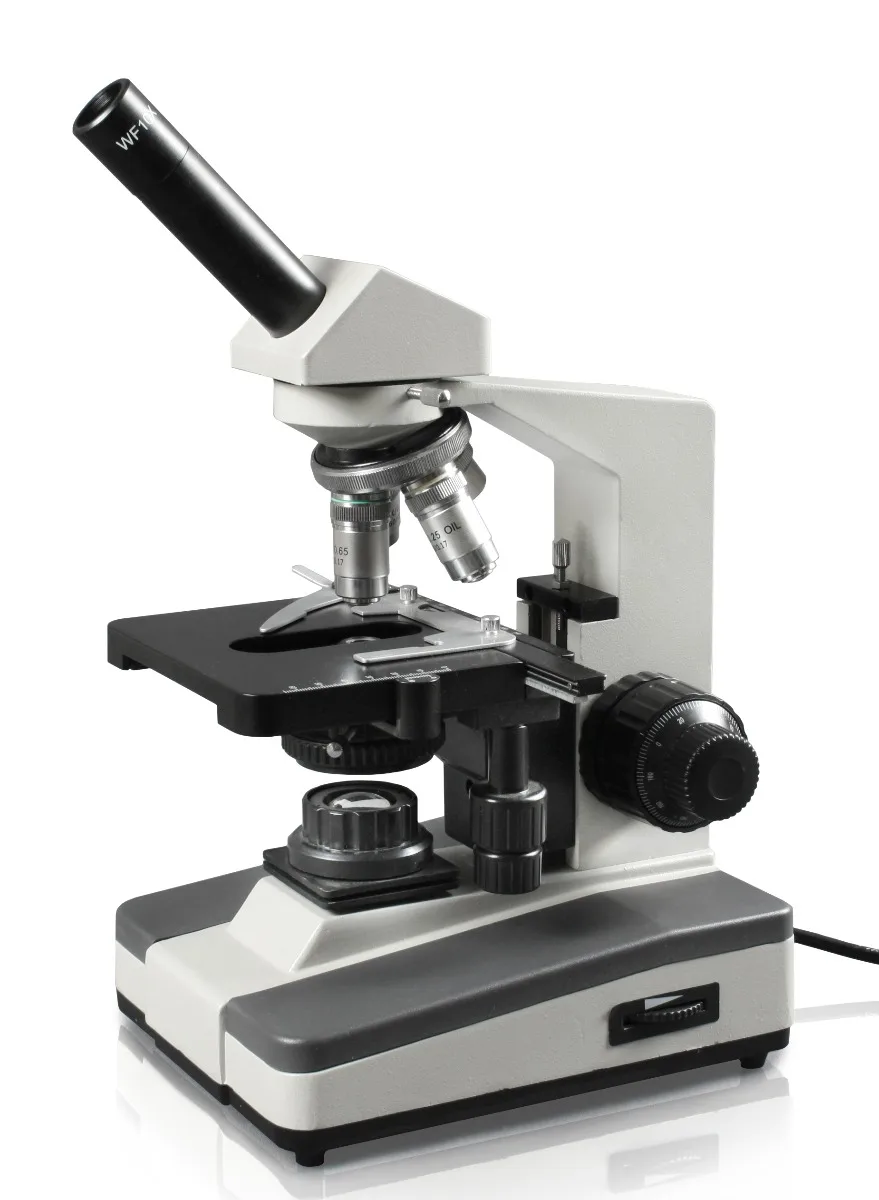

Monocular, 45° inclined, rotates 360° | Dual view, 45° inclined, rotates 360° | Binocular, 30° inclined, rotates 360° | Trinocular, 30° inclined, rotates 360° |
| Interpupillary Distance | N/A | 55mm to 75mm | ||
| Eyepiece | 10X wide-field eyepiece with calibrated pointer | Paired 10X wide-field eyepieces – one with calibrated pointer | ||
| Nosepiece | Four position reversed nosepiece with positive stop clicks | |||
| Objectives | 4X, 10X, 40XR, 100XR DIN achromatic objectives are color-coded, parfocaled and parcentered | |||
| Stage | 5.5″ x 5.25″ built-in double layer mechanical stage with smooth X/Y calibrated movement and cross travel range of 75mm x 50mm | |||
| Condenser | Rack and pinion 1.25 N.A. Abbe condenser | |||
| Diaphragm | Iris diaphragm with swing-out filter holder | |||
| Focusing System |
Coaxial coarse and fine focus control, gear movement for smooth operation | |||
| Illumination | LED Köhler illumination with light intensity control | |||
| Power | 3-wire grounded power cord | |||
| Accessories | Vinyl dust cover and user manual | |||
| Warranty | Limited 5 year | |||
