Description
The 4000 series compound microscopes feature a 45° inclined sliding binocular or trinocular head, designed to reduce eye and neck strain. They are equipped with a 55mm – 75mm interpupillary adjustment, and a diopter adjustment on both ocular tubes to compensate for eye-strength difference when needed. They feature a quadruple nosepiece with four DIN achromatic objectives, which are parfocaled and parcentered to ensure the image stays centered and focused during every magnification change. For added safety, microscopes have a rack-stop which helps to prevent damage to slides and objective lenses, while the slip-clutch system protects gears from damage.
| 4008 |
Binocular |
10X wide-field |
4X, 10X, 40XR, 100XR (oil) |
6V/20W Halogen |

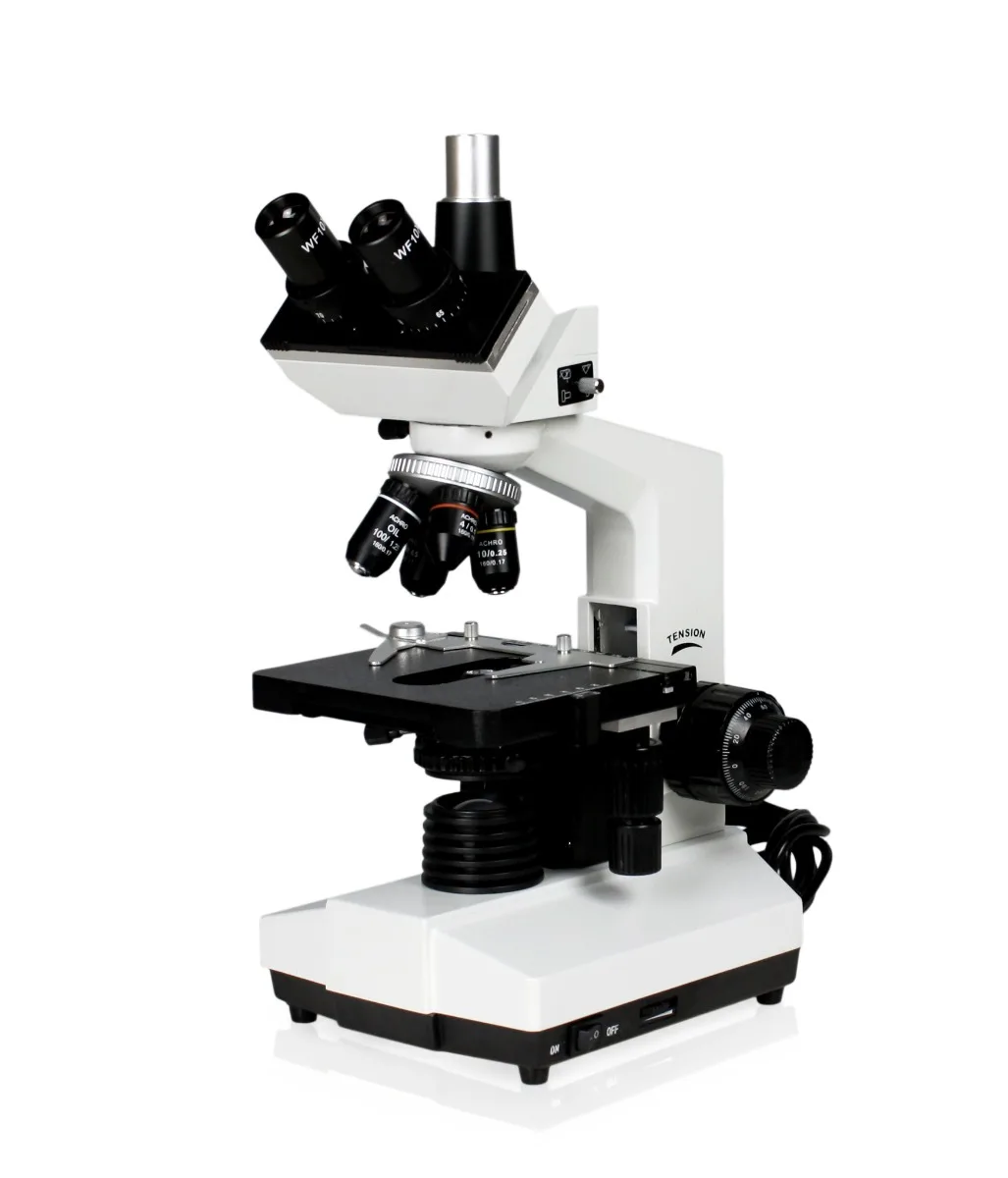

| 4010 |
Trinocular |
10X wide-field |
4X, 10X, 40XR, 100XR (oil) |
6V/20W Halogen |
Specifications
| Model |
4008 |
4010 |
| Body |
Rugged cast metal stand with stain resistant finish |
Head
|
Binocular, 45° inclined, 360° rotatable |
Trinocular, 45° inclined, 360° rotatable |
| Eyepiece |
Paired 10X wide-field eyepieces |
| Nosepiece |
Four position nosepiece with positive stop clicks |
| Objectives |
4X, 10X, 40XR, 100XR DIN achromatic objectives are color-coded, parfocaled and parcentered |
| Stage |
14cm x 14cm stage, built-in double layer mechanical stage with smooth X-Y travel range of 7.5cm x 5cm |
| Condenser |
Rack and pinion adjustable 1.25 N.A. Abbe condenser |
| Diaphragm |
Turn-wheel opening iris diaphragm with plastic shield protector |
Focusing System
|
Coaxial coarse and fine focusing with gear movement and tension adjustment |
| Illumination |
20W halogen illumination with light intensity control |
| Power |
3-wire grounded power cord |
| Accessories |
Vinyl dust cover and user manual |
| Warranty |
Limited 5 year |
