SKU 7000 Series Microscopes

  • Siedentopf binocular or trinocular head, 30° inclined, rotate 360°
  • Reversed nosepiece facilitates easy slide changes
  • Double layer, built-in mechanical stage is low-profile and ball-bearing, with a mounted specimen holder, ensuring easy mobility and precise control of specimen under observation
  • Pre-centered 1.25 N.A. Abbe condenser, iris diaphragm and blue filter for optimal resolution and image contrast
  • Köhler illumination provides critical resolution images for more exact techniques like phase contrast and photo micrography

Description

These full feature, oil immersion microscopes are designed to meet the demands in universities, laboratories and hospitals. The color-coded DIN objectives offer superior resolution, clarity and precision. The infinity corrected objectives provide more depth and greater flatness with edge sharpness for additional clarity and contrast. A halogen illumination provides intense light for maximum resolutionwhile a field diaphragm enables set-up of the built-in Köhler illumination system. Capable of phase contrast, dark field and polarization observation with optional accessories. Comes complete with a dust cover and instruction manual. 5-year limited warranty, excluding bulbs.

*Note: Infinity objectives are not interchangeable with DIN objectives

ITEM NO. HEAD OBJECTIVES
  CONDENSER ILLUMINATION

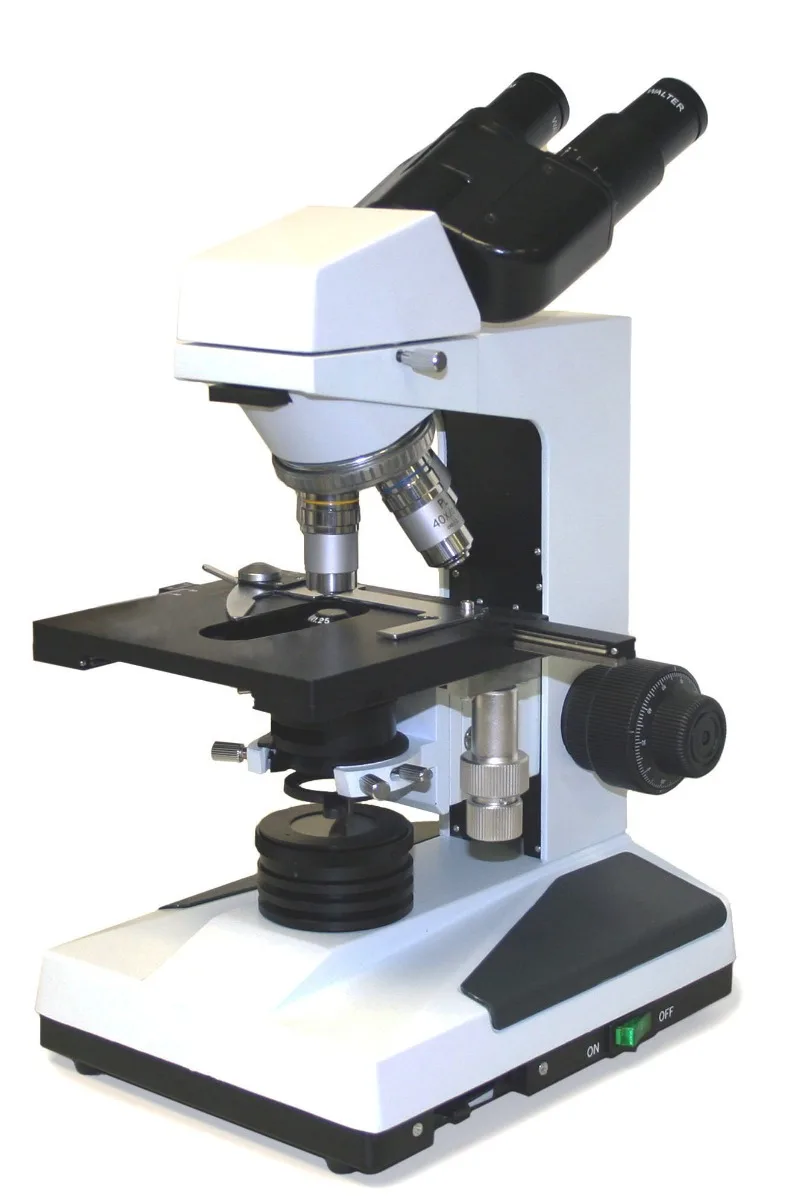

7008 Binocular Achromatic 4X, 10X, 40XR, 100XR  1.25 N.A. Abbe 6V, 20W Halogen

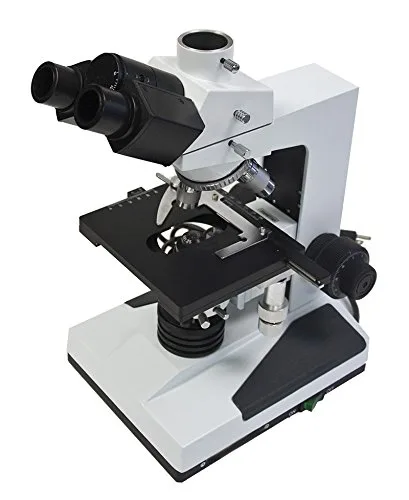

7010 Trinocular Achromatic 4X, 10X, 40XR, 100XR  1.25 N.A. Abbe 6V, 20W Halogen
7008P Binocular Plan Achromatic 4X, 10X, 40XR, 100XR  1.25 N.A. Abbe 6V, 20W Halogen
7010P Trinocular Plan Achromatic 4X, 10X, 40XR, 100XR  1.25 N.A. Abbe 6V, 20W Halogen
7008PPC Binocular Plan Achromatic 4X, 10X, 40XR, 100XR  1.25 N.A. Phase 6V, 20W Halogen
7010PPC Trinocular Plan Achromatic 4X, 10X, 40XR, 100XR  1.25 N.A. Phase 6V, 20W Halogen
7008PIC Binocular Plan Infinity 4X, 10X, 40XR, 100XR  1.25 N.A. Abbe 6V, 20W Halogen

                     P=Plan Achromatic        PC=Phase Contrast       PPC=Plan Phase Contrast        PIC=Plan Infinity Optics


Optional Accessories:
ITEM NO. DESCRIPTION UOM
DARK-DD Dark Field Condenser – Dry Each
DARK-OO Dark Field Condenser – Oil Each
PC104 Phase Contrast Kit with Plan Achromatic Objectives Kit
KIT-P-7000 Polarization Kit Kit

Phase contrast kit includes: 10X, 20X, 40XR, 100XR DIN plan achromatic objectives, 1.25 N.A. sigle turret phase contenser, three 32mm filters (green, yellow, blue), a phase centering telescope and ¼oz bottle of immersion oil.

Specifications

Model 7008 7010
Head Siedentopf binocular head, 30° inclined, 360° rotatable Siedentopf trinocular head, 30° inclined, 360° rotatable
Eyepiece 10X wide-field eyepieces
Nosepiece Reversed, four position nosepiece with positive stop clicks
Objectives 4X, 10X, 40XR, 100XR DIN achromatic objectives, parfocaled, parcentered, color-coded
Stage
 Double layer, built-in mechanical stage with smooth cross travel motion of 76mm x 50mm, mounted specimen holder, right-handed pendant drop coaxial controls
Condenser Pre-centered, rack and pinon 1.25 N.A. Abbe condenser
Diaphragm Iris diaphragm with blue filter
Focusing Coaxial coarse and fine focus control with built-in slip clutch and rack stop
Illumination Halogen Köhler illumination with light intensity control
Power 3-wire grounded power cord
Warranty 5 year limited warranty

Additional information

Weight 20.0 kg
