Description
These full feature, oil immersion microscopes are designed to meet the demands in universities, laboratories and hospitals. The color-coded DIN objectives offer superior resolution, clarity and precision. The low-drive stage controls are ergonomically placed and withn easy reach of fingertips. A halogen illumination provides intense light for maximum resolution, while a field diaphragm enables set-up of the built-in Köhler illumination system. Capable of phase contrast, dark field and polarization observation with optional accessories. Comes complete with a dust cover and instruction manual. 5-year limited warranty, excluding bulbs.
Specifications
| Model | 6008 | 6010 |
| Head | Siedentopf binocular head, 30° inclined, 360° rotatable | Siedentopf trinocular head, 30° inclined, 360° rotatable |
| Eyepiece | 10X wide-field eyepieces | |
| Nosepiece | Reversed, four position nosepiece with positive stop clicks | |
| Objectives | 4X, 10X, 40XR, 100XR semi-plan DIN achromatic objectives, parfocaled, parcentered, color-coded | |
| Stage |
Double layer, built-in mechanical stage with smooth X/Y travel and mounted specimen holder | |
| Condenser | Pre-centered 1.25 N.A. Abbe condenser | |
| Diaphragm | Iris diaphragm with blue filter | |
| Focusing | Coaxial coarse and fine focus control with built-in slip clutch and rack stop | |
| Illumination | 6V, 20W Halogen Köhler illumination with light intensity control | |
| Power | 3-wire grounded power cord | |
| Warranty | 5 year limited warranty | |
| ITEM NO. | HEAD | DIN OBJECTIVES |
CONDENSER |

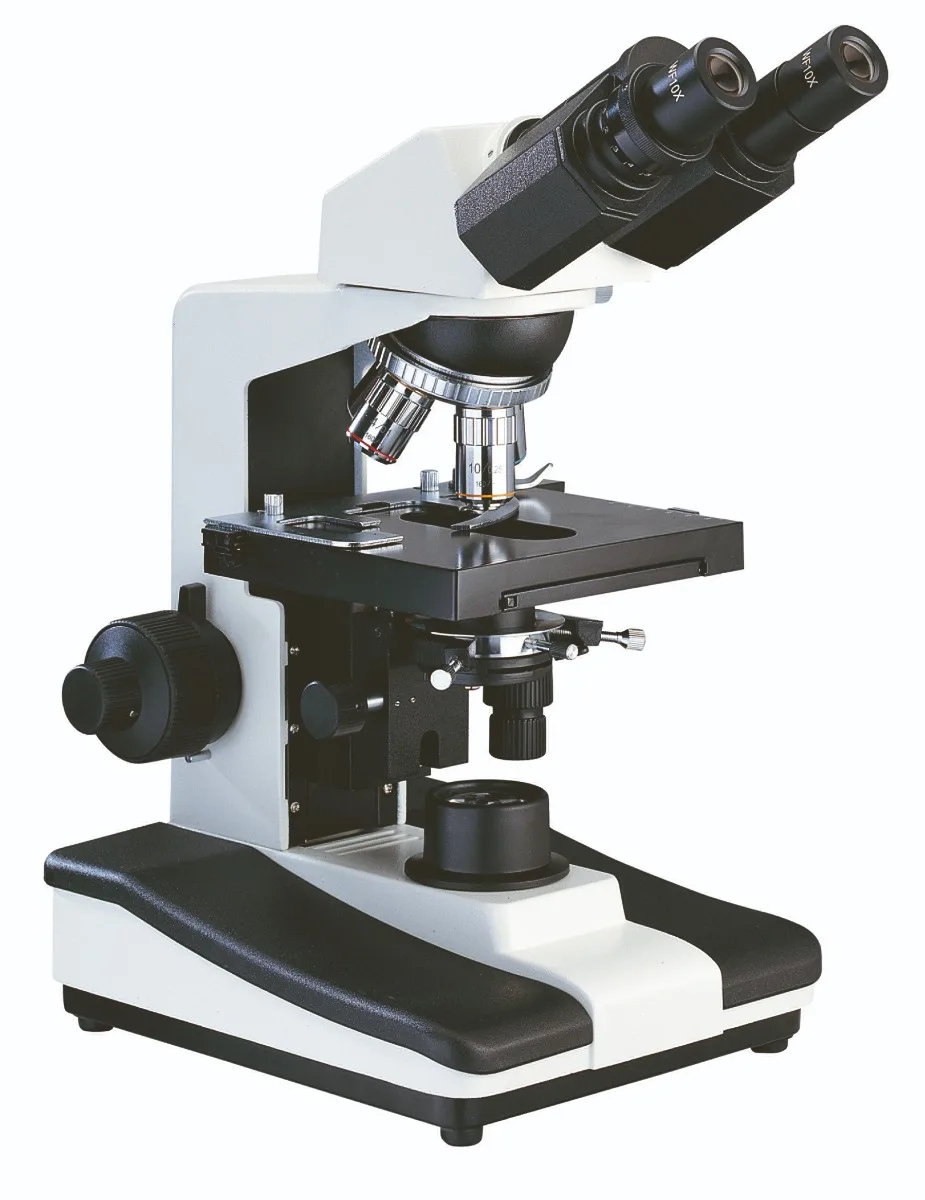

| 6008 | Binocular | Semi-Plan Achromatic 4X, 10X, 40XR, 100XR | 1.25 N.A. Abbe |

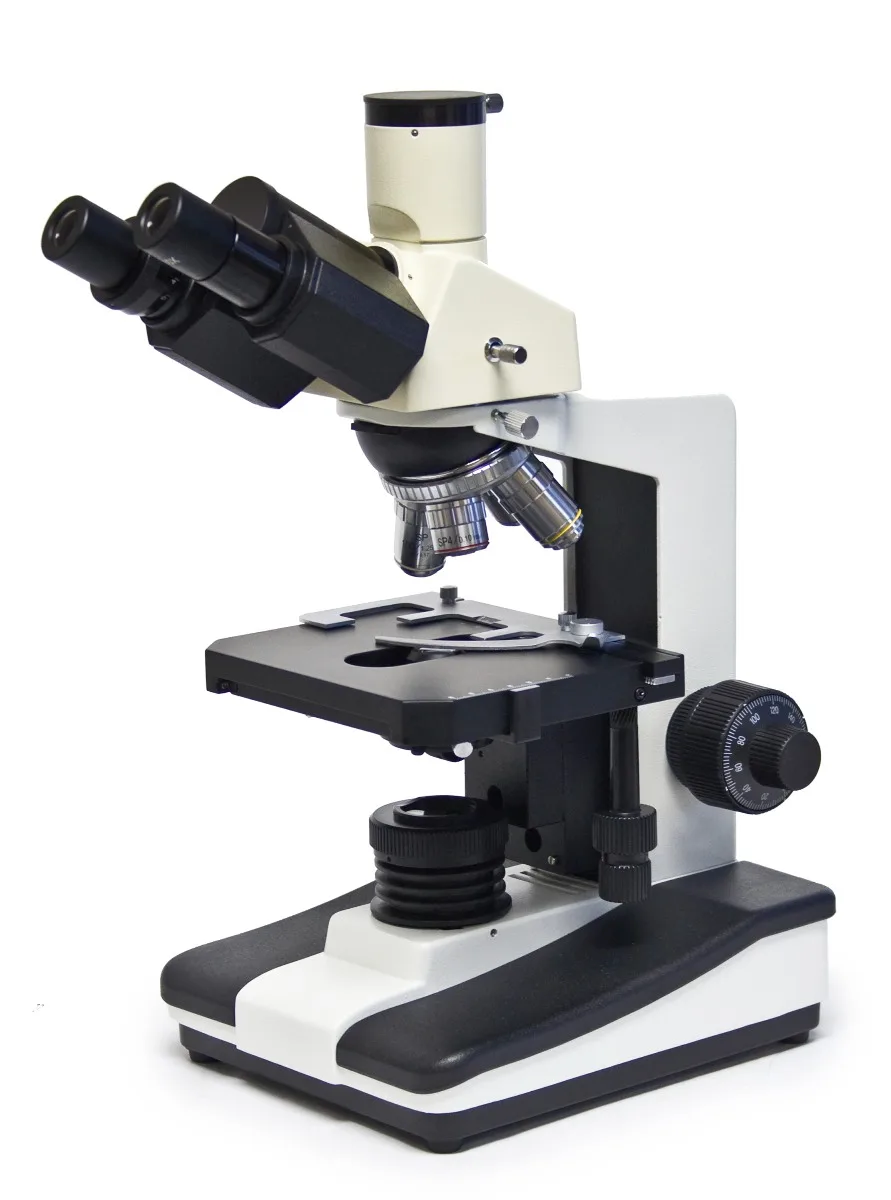

| 6010 | Trinocular | Semi-Plan Achromatic 4X, 10X, 40XR, 100XR | 1.25 N.A. Abbe |
| 6008P | Binocular | Plan Achromatic 4X, 10X, 40XR, 100XR | 1.25 N.A. Abbe |
| 6010P | Trinocular | Plan Achromatic4X, 10X, 40XR, 100XR | 1.25 N.A. Abbe |
| 6008DF | Binocular | Semi-Plan Achromatic 4X, 10X, 40XR, 100XR | Dark Field |
| 6008PC | Binocular | Achromatic 4X, 10X, 40XR, 100XR | 1.25 N.A. Phase |
| 6008PPC | Binocular | Plan Achromatic 4X, 10X, 40XR, 100XR | 1.25 N.A. Phase |
P=Plan Achromatic DF=Dark Field PC=Phase Contrast PPC=Plan Phase Contrast
Optional Accessories:
| ITEM NO. | DESCRIPTION | UOM |
| DARK-D | Dark Field Condenser – Dry | Each |

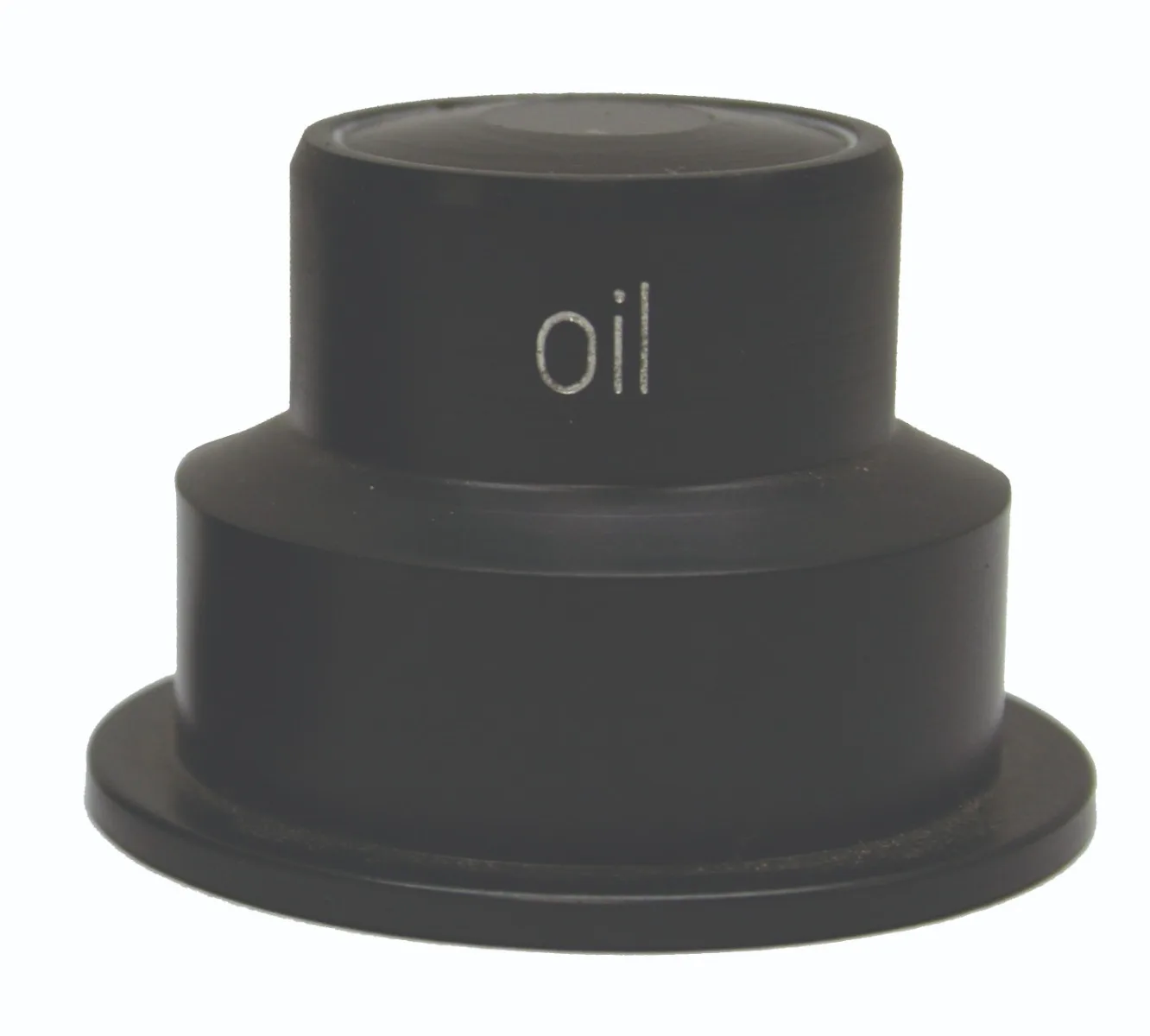

| DARK-O | Dark Field Condenser – Oil | Each |
| PC101 | Phase Contrast Kit with Achromatic Objectives | Kit |
| PC102 | Phase Contrast Kit with Plan Achromatic Objectives | Kit |

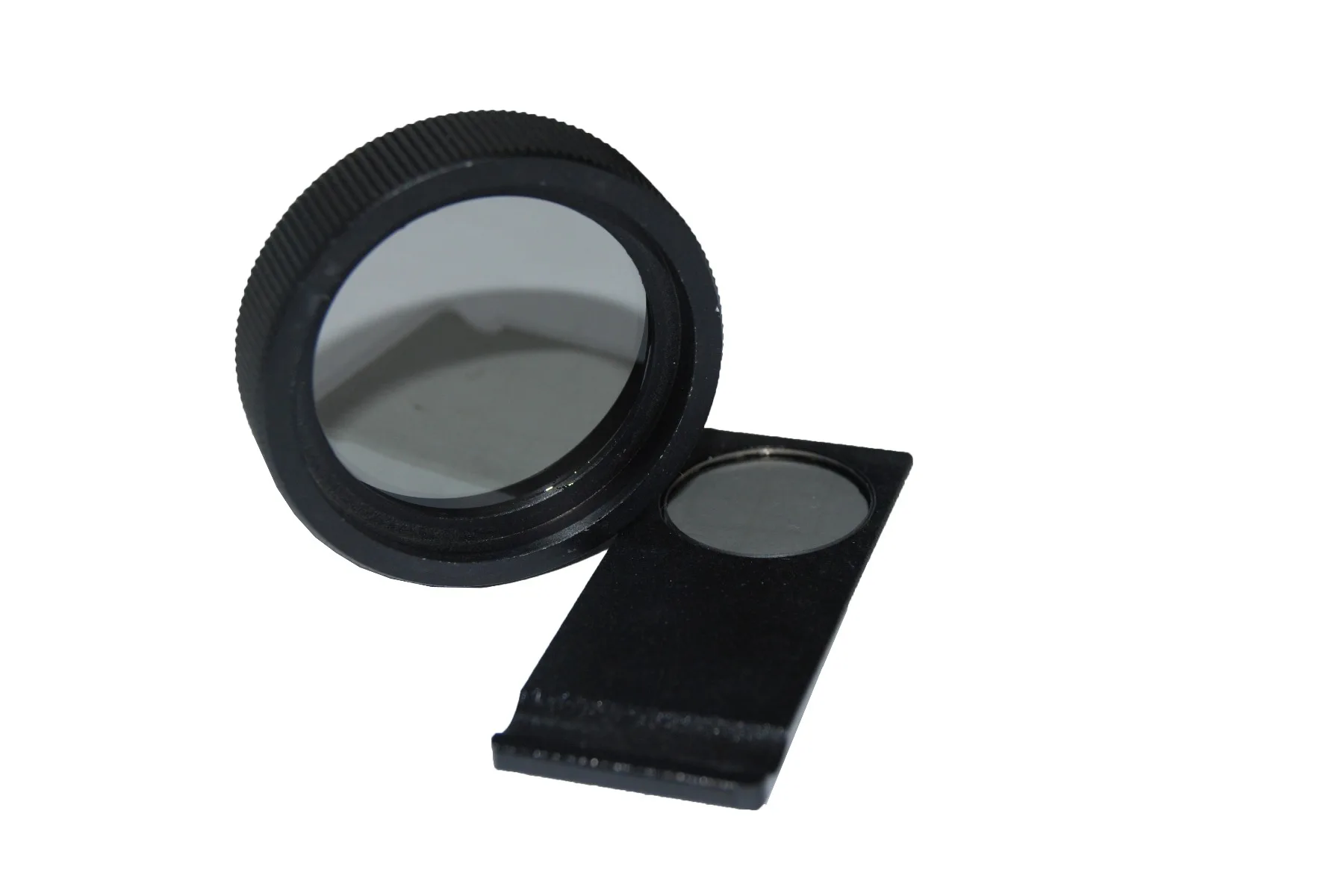

| KIT-P-6000 | Polarization Kit | Kit |

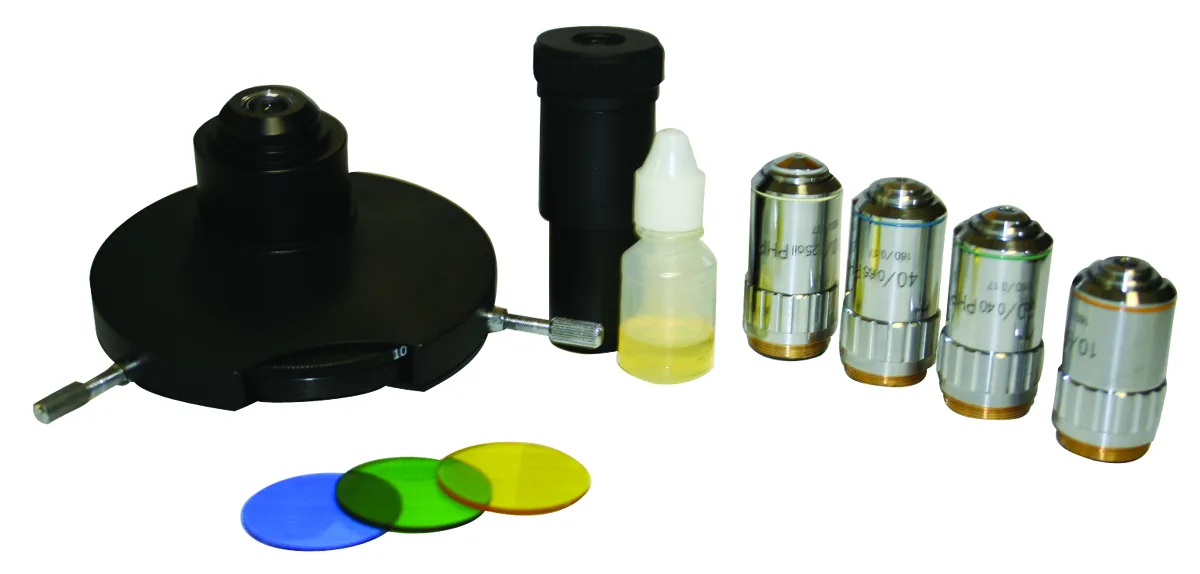

Phase contrast kit includes: 4X, 10X, 40XR, 100XR DIN achromatic (PC101) or plan achromatic objectives (PC102), 1.25 N.A. sigle turret phase condenser, three 32mm filters (green, yellow, blue), a phase centering telescope and ¼oz bottle of immersion oil.
