Description

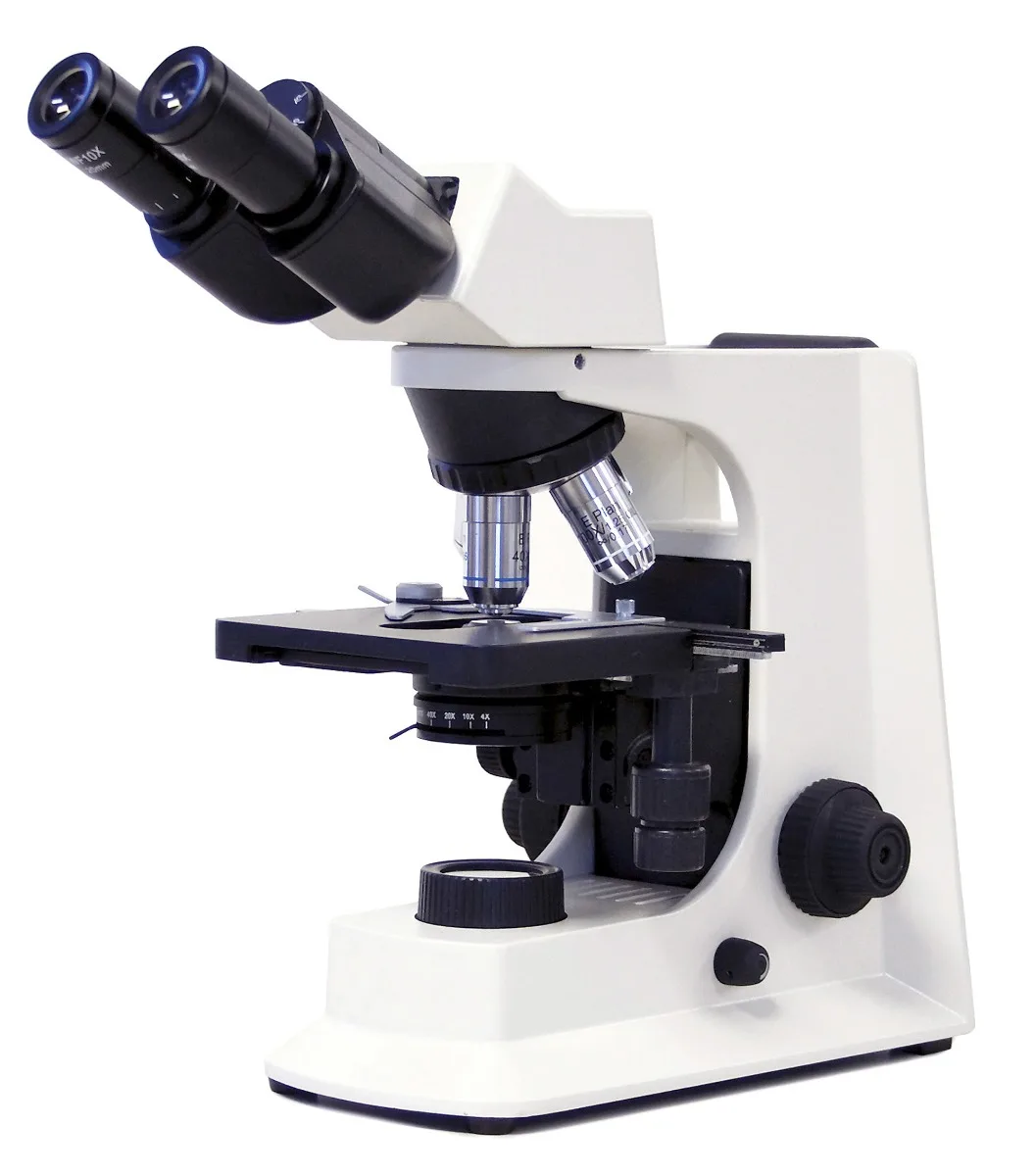

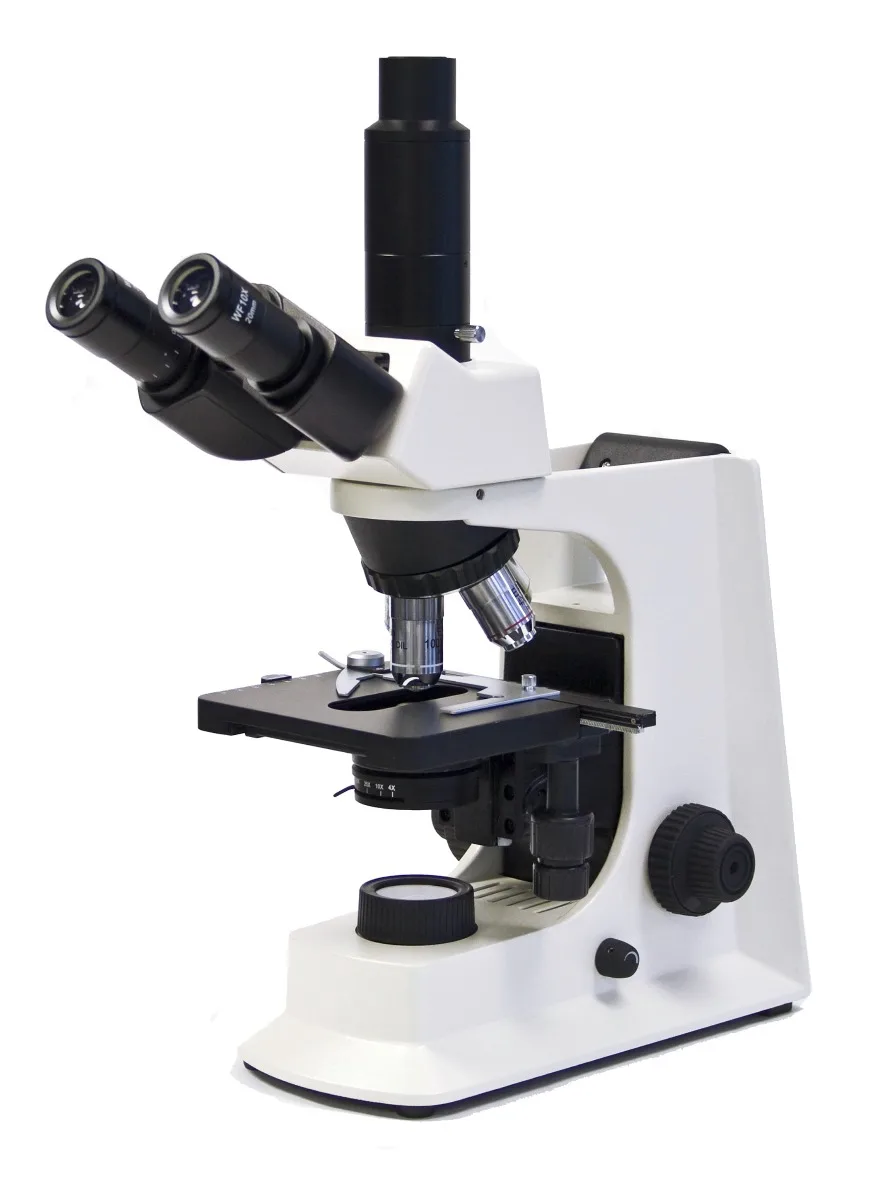

The 1000 Series microscopes deliver quality results. Microscopes feature infinity corrected optics that enhance image quality and allows objectives to remain parfocaled when optical components are added or removed. The rectangular shape and cast aluminum stand are vibration proof and provides a strong and stable operating base. The frame and handle makes this microscope easy to carry and moved around any work space. Comes complete with a dust cover and instruction manual. 5-year limited warranty, excluding bulbs.
Specifications
| Model | 1008 | 1010 |
| Body | Cast aluminum with enamel finish, rectangular shape | |
| Head |
Sidentopf binocular, 30° inclined, rotates 360° Interpupillary adjustment: 50mm – 75mm |
Siedentopf trinocular, 20/80 light splitting ratio, 30° inclined, rotates 360° Interpupillary adjustment: 50mm – 75mm |
| Eyepiece | 10X wide-field eyepieces | |
| Nosepiece | Four position reversed nosepiece | |
| Objectives | 4X, 10X, 40XR, 100XR Infinity corrected, semi-plan DIN objectives | |
| Stage | 145mm X 140mm Built-in double layer mechanical stage, Vernier scales, smooth X/Y calibrated movement with cross travel range of 76mm X 52mm | |
| Condenser | 1.25 N.A. Abbe condenser with diaphragm position guide markings for their respective objectives | |
| Focusing System |
Low position coaxial coarse and fine focusing knobs, 26mm coarse movement stroke, fine focus graduation of 2µm | |
| Illumination | 3W LED illumination, light intensity control | |
| Power | 3-wire ground power cord | |
| Accessories | Vinyl dust cover and user manual | |
| Warranty | Limited 5 year | |
Optional Accessories
| ITEM NO. | DESCRIPTION | UOM |

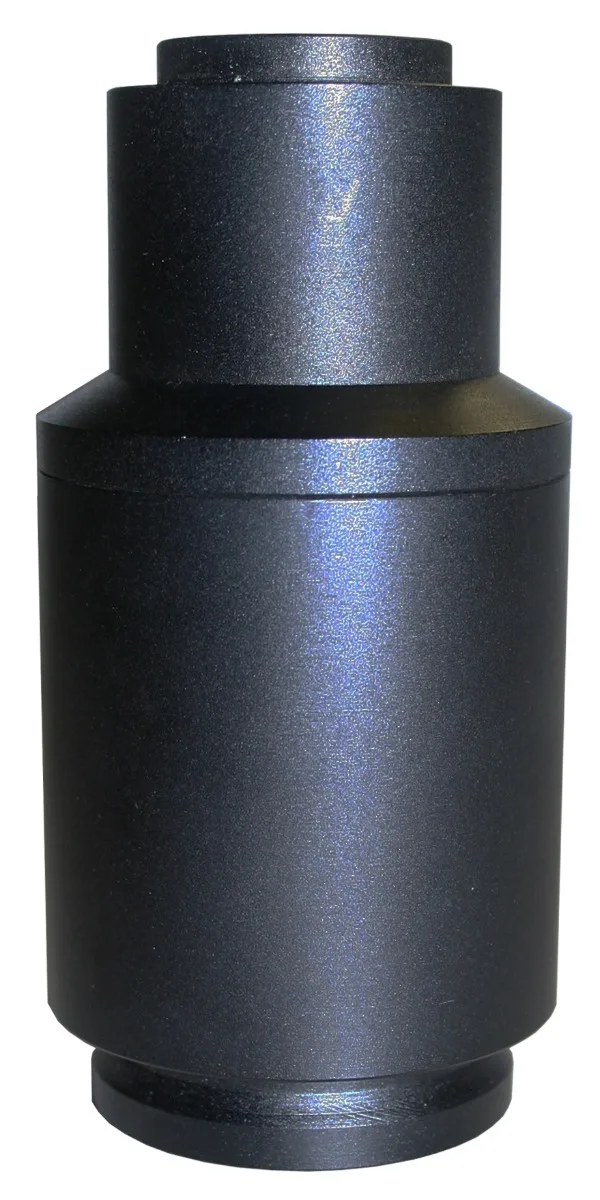

| CM-05 | 0.47X Focus Adjustable C-Mount | Each |

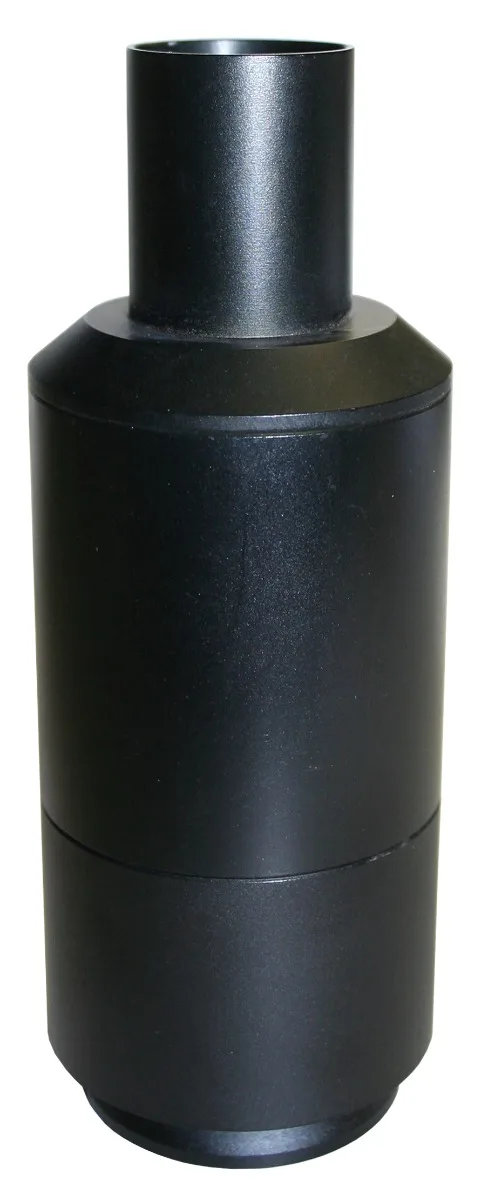

| CM-10 | 1X C-Mount | Each |

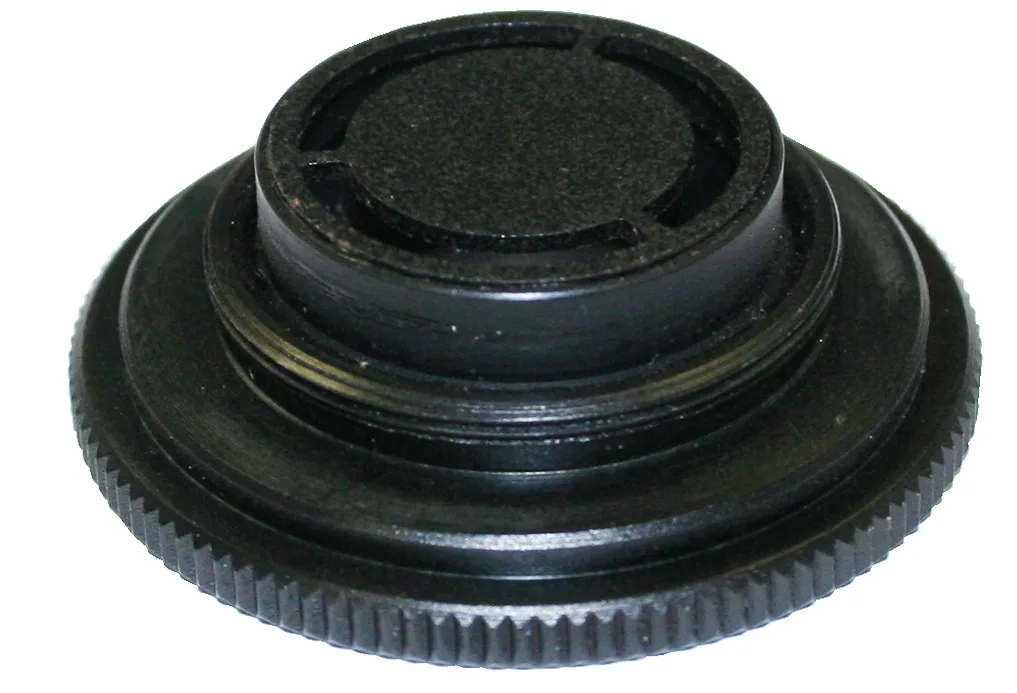

| DARK-10 | Dark Field Condenser | Each |

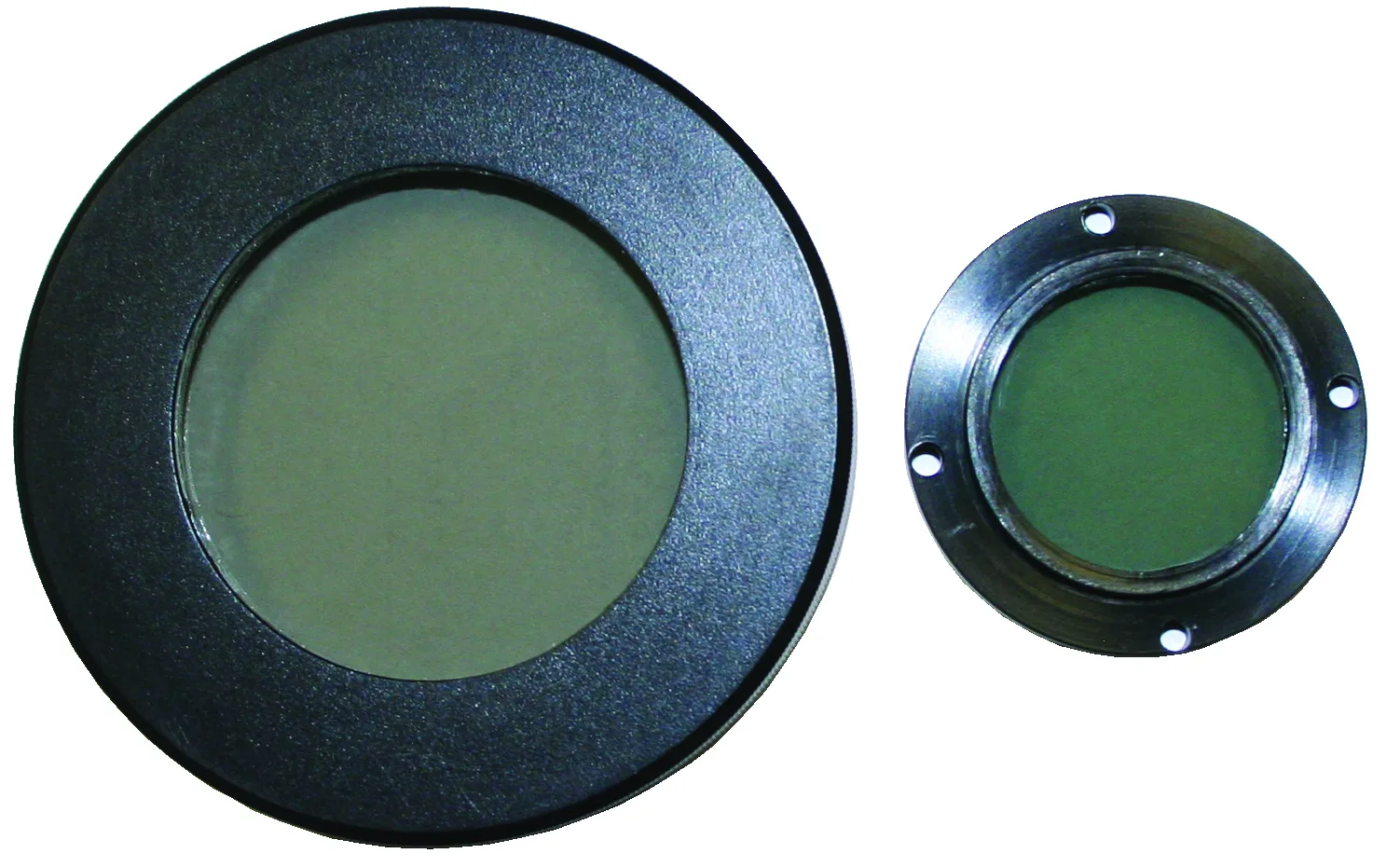

| KIT-P-1000 | Polarization Kit | Kit |
