Description

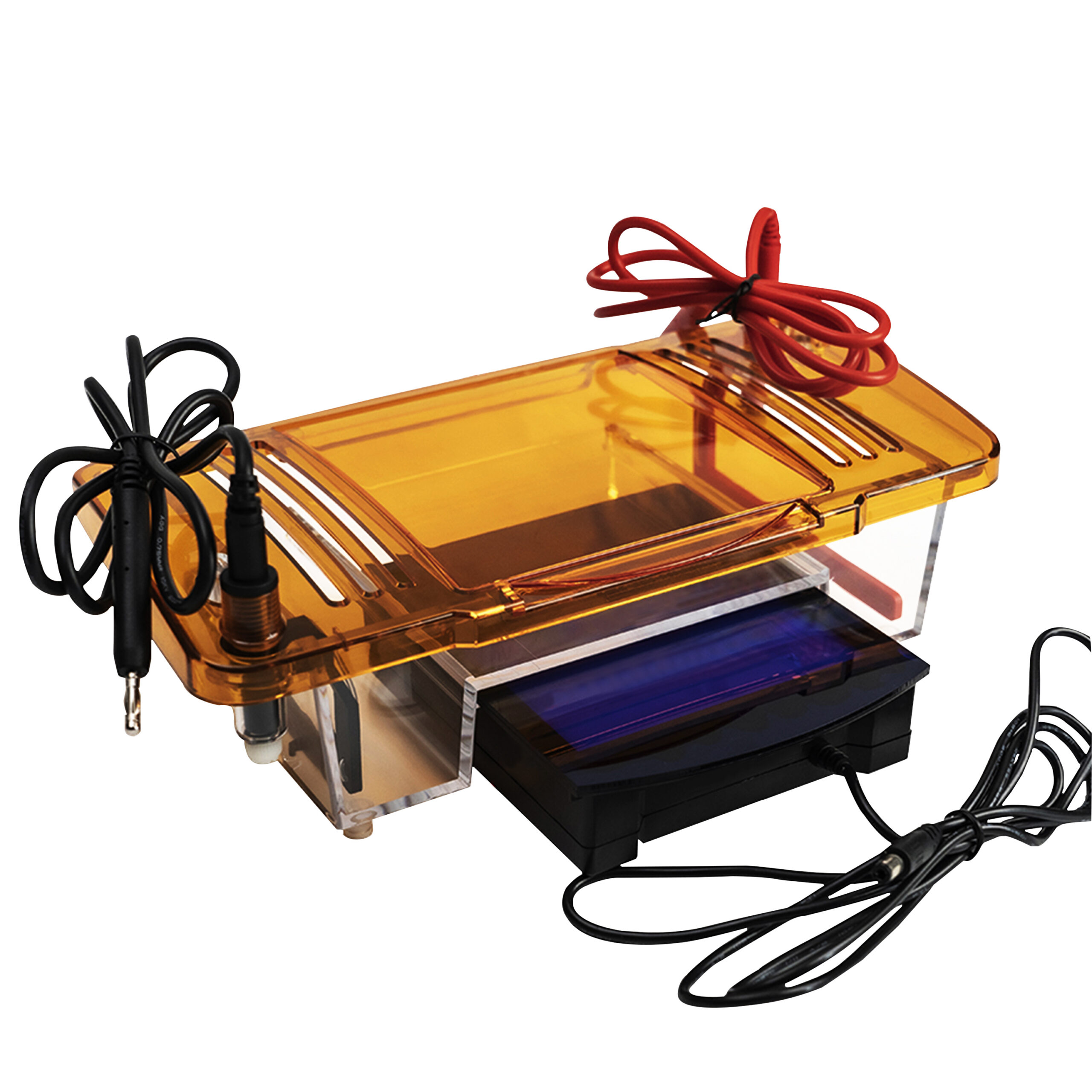

The uniquely designed Horizontal Electrophoresis System features a built-in blue light at the bottom of the tank, allowing clear visualization of sample bands during electrophoresis. When used with the EL-PS2 Programmable Electrophoresis Power Supply, which includes a dedicated 12V output port, the blue light is perfectly powered—safe and convenient. With this system, you can observe sample bands in real time throughout the run, ensuring better experimental results. Ideal for rapid agarose electrophoresis separation experiments of small amounts of DNA and RNA samples.
This unit requires 650mL of buffer solution and a power supply.
Features
- Integrated design combining a horizontal electrophoresis tank and a blue light transilluminator—bands can be viewed directly at any time during electrophoresis
- Perforated lid for heat dissipation and easy observation
- Removable electrode assembly and electrode tips for convenient cleaning and maintenance
- Convenient gel maker with fixed sample comb slots
- Gel trays have a black band that indicates where to insert the comb, as well as direction of gel placement inside the electrophoresis tank

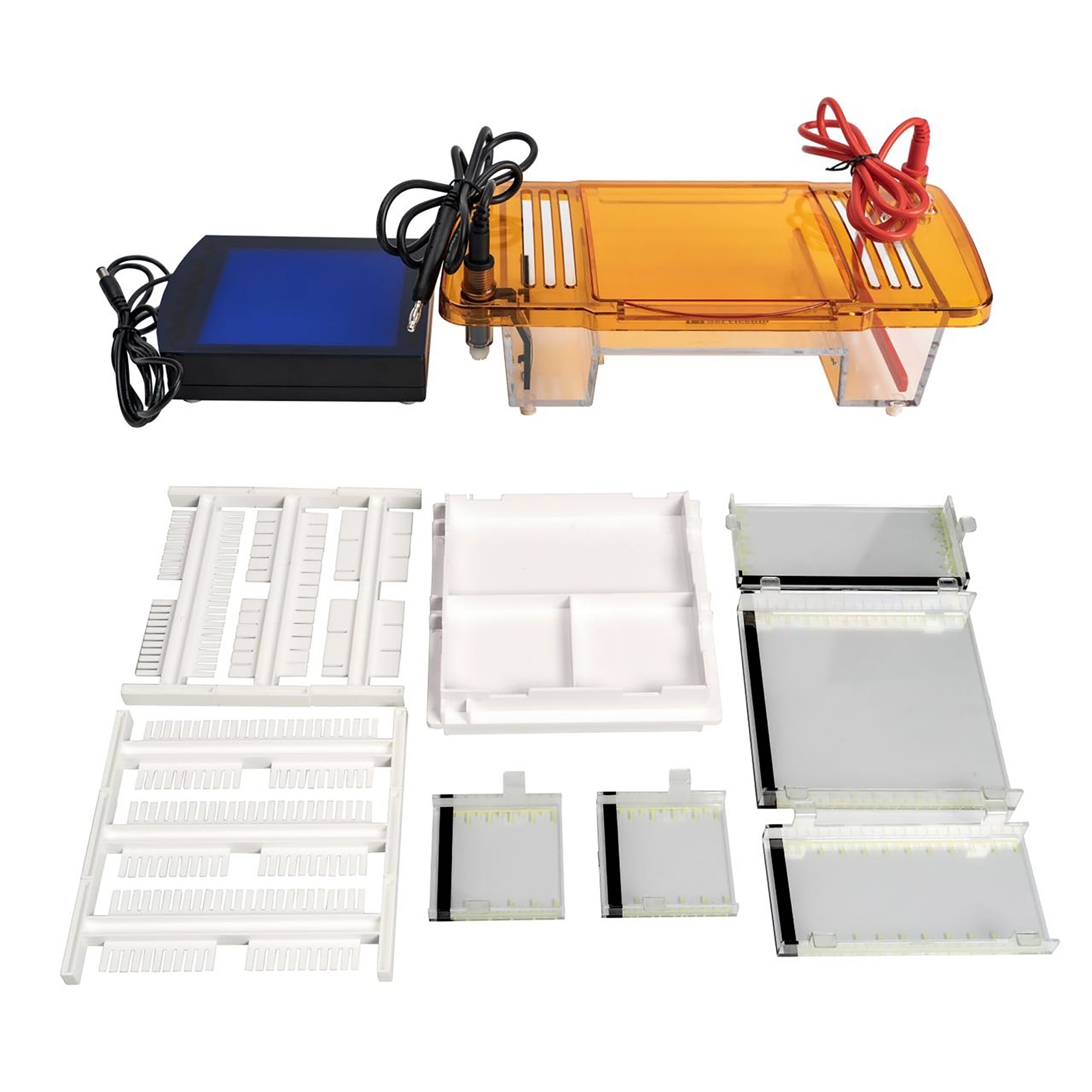

Unit Includes:

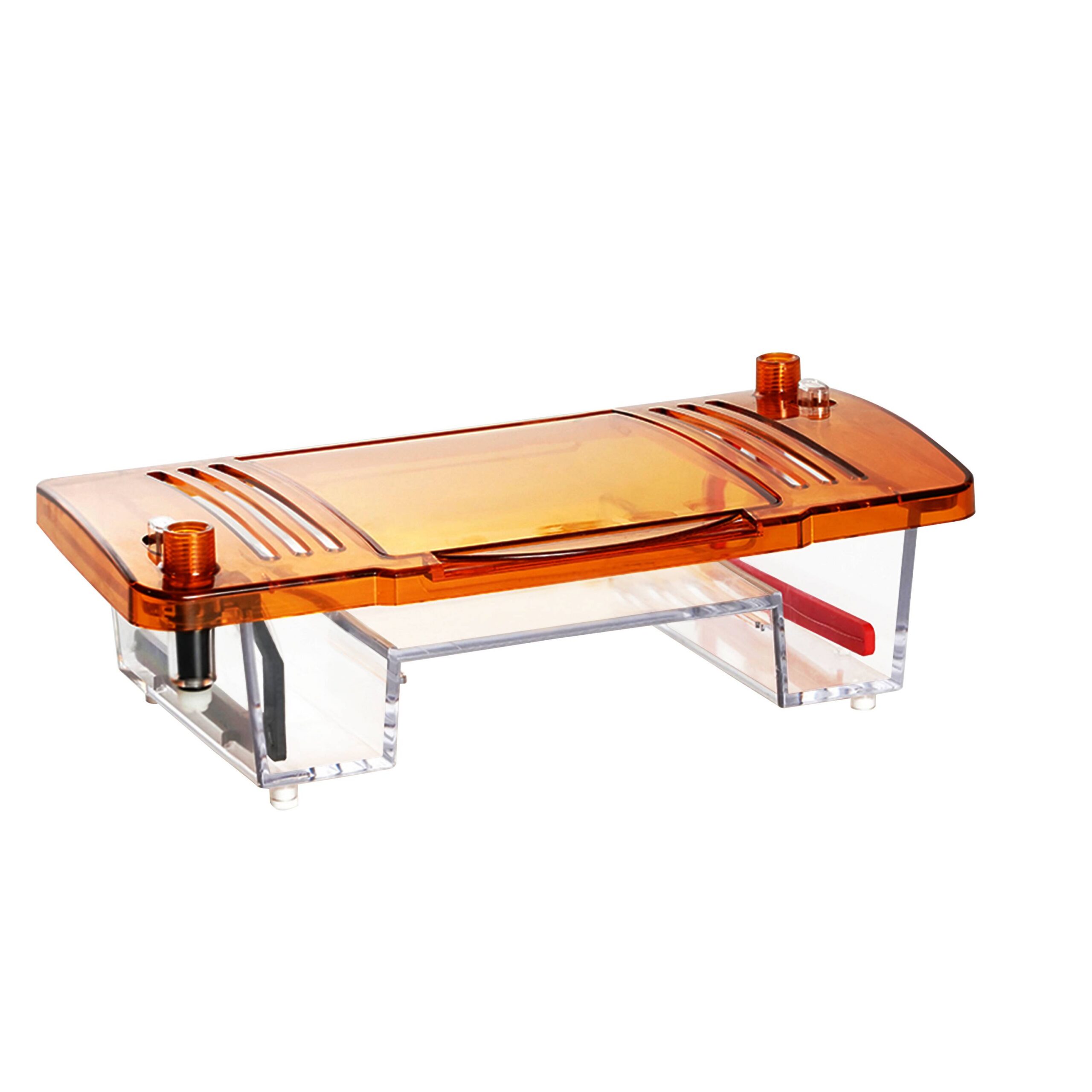

- (1) Horizontal electrophoresis tank with cover and power leads

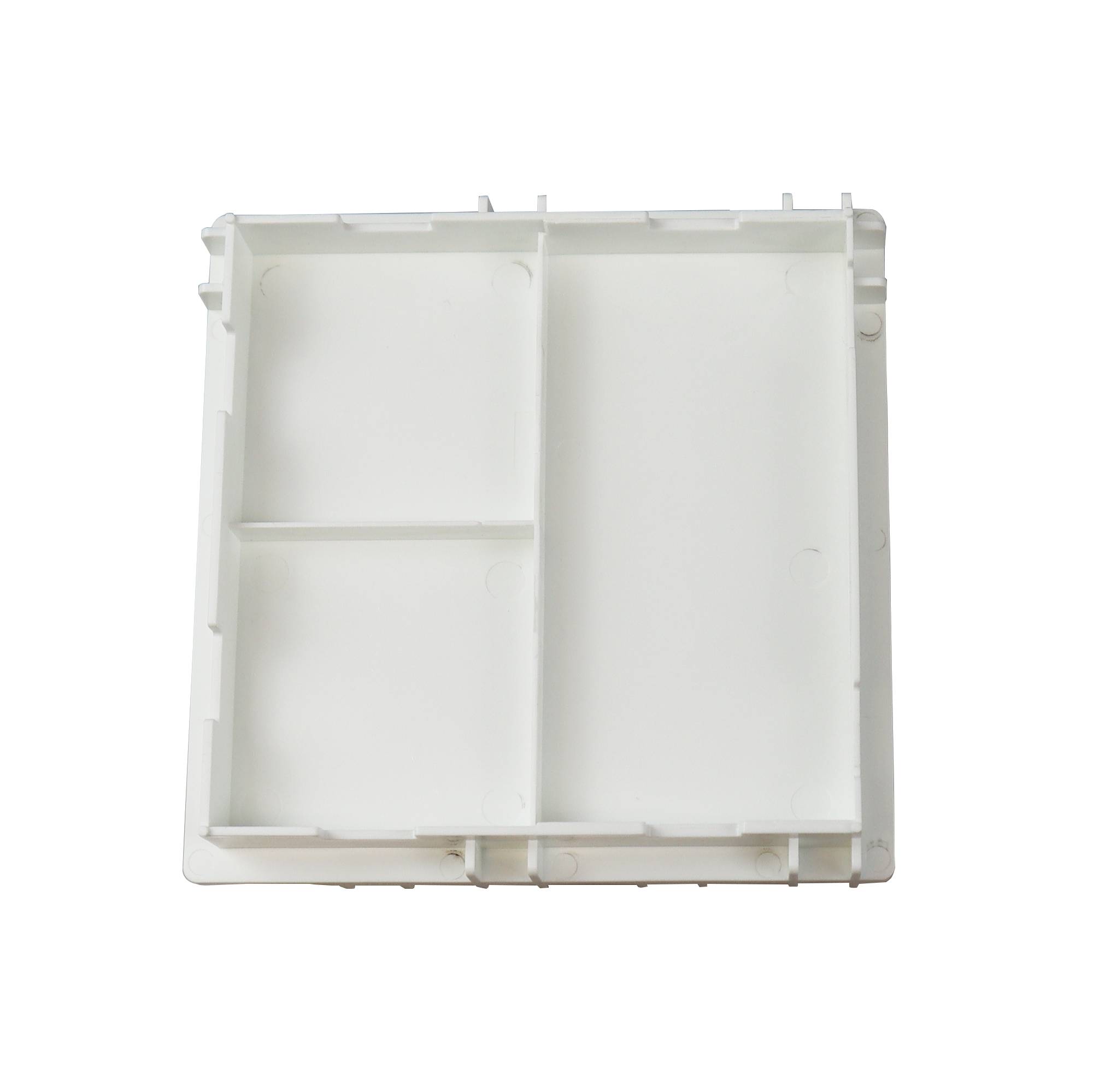

- (1) Gel maker
- (2) 60 x 60mm gel tray
- (1) 60 x 120mm gel tray
- (1) 120 x 60mm gel tray
- (1) 120 x 120mm gel tray
- (4) 1.0mm 25-tooth/11-tooth sample comb
- (1) 1.5mm 13-tooth/6-tooth sample comb
- (1) 2.0mm 3-tooth/2-tooth sample comb

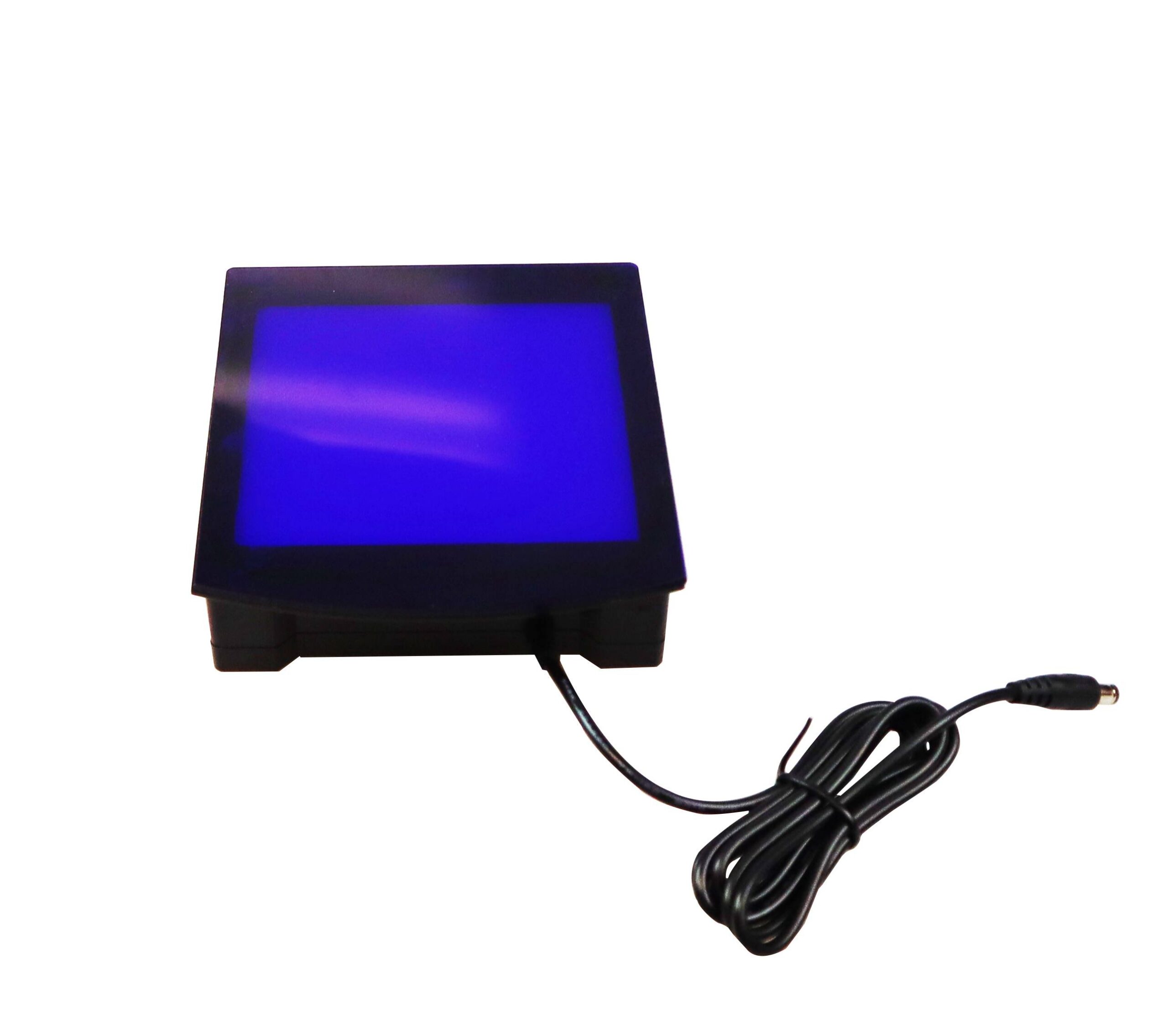

- (1) Blue light transilluminator, 470nm wavelength
