Description

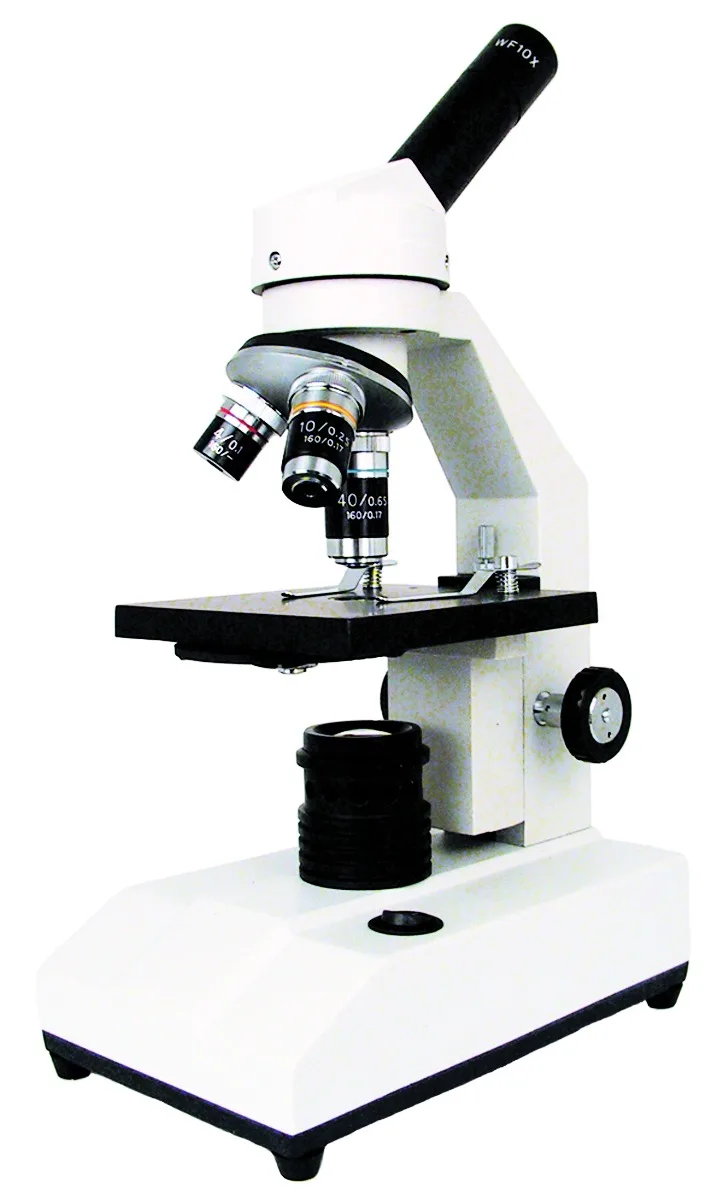

This student inclined microscope features a monocular head with full 360° rotation and a locked on 10X wide-field eyepiece with calibrated pointer. Features full-size, color-coded DIN standard objectives on revolving triple nosepiece with positive click stops. The rugged all metal construction makes this a durable and ideal student microscope because it requires minimum maintenance with features designed to prevent accidents common to most student microscopes. Our slip clutch with tension adjustment to protect focusing mechanism with safety rack stop prevents damage to objectives and slides. Comes with a vinyl dust cover and user manual. Suitable for grades 6-9. 5 year limited warranty, excluding bulbs.
| 3048-LED |
10X WF |
4X, 10X, 40XR |
LED Corded |
Specifications
| Body |
Rugged all metal construction |
Head
|
Monocular head, 45° inclined, 360° rotatable |
| Eyepiece |
Locked-on 10X wide-field eyepiece with calibrated pointer |
| Nosepiece |
Reverse, three position nosepice with positive stop clicks |
| Objectives |
4X, 10X, 40XR DIN objectives are color-coded |
| Stage |
Plain stage with locked-on spring loaded stage clips |
Focusing System
|
Coarse focusing, slip clutch with tension adjustment to protect focusing mechanism, safety rack stop |
| Diaphragm |
Calibrated 5 hole disc diaphragm |
| Illumination |
LED, on/off switch |
| Accessories |
Vinyl dust cover and user manual |
| Warranty |
Limited 5 year |
