Description

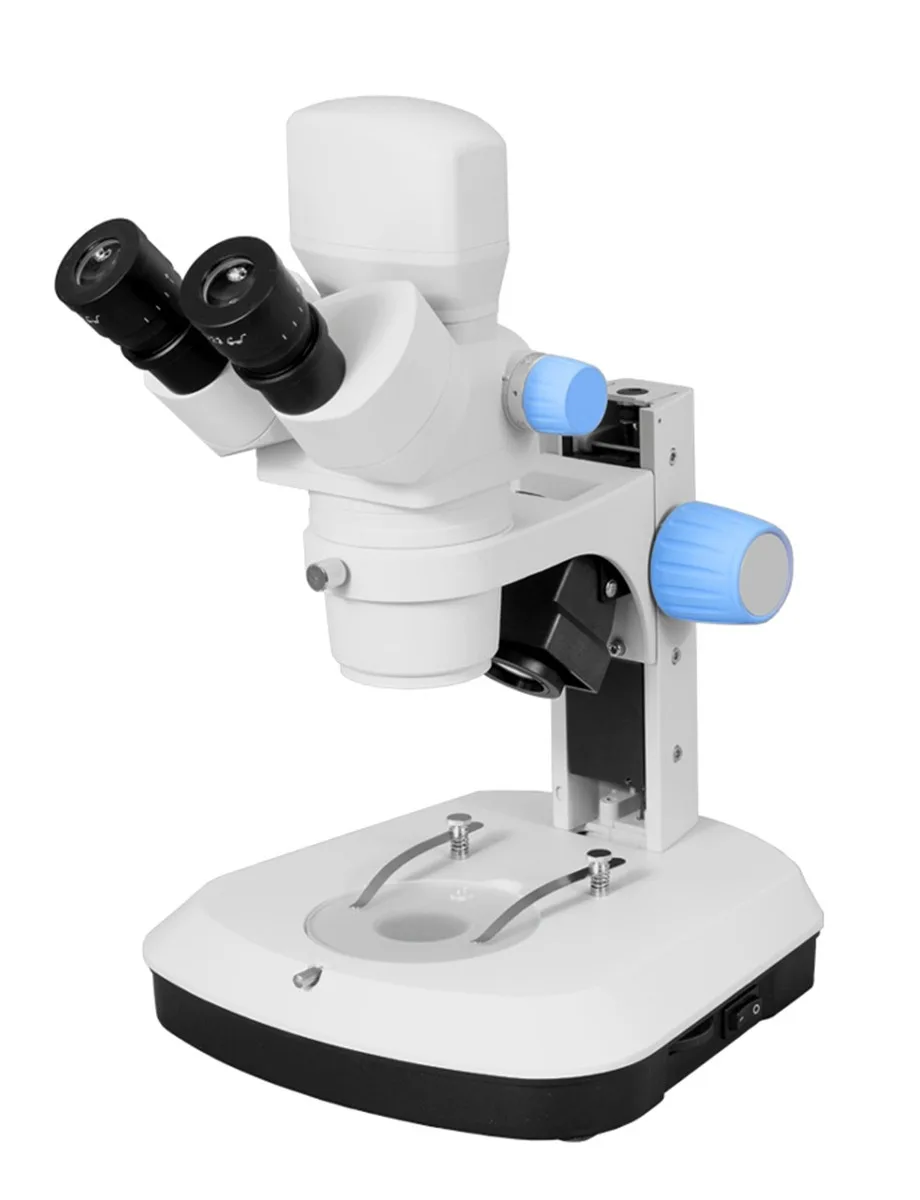

The QZ-300D5 offer crisp, high resolution, precision optics that provide excellent erect and unreversed stereoscopic images. Microscope features synchronized bilateral interpupillary adjustment with dioptic adjustment on both eyepieces. Smooth in operation, it has a calibrated zoom range operable on both sides of the head. The 5MP digital camera offers plug-and-play capabilities with our free and easy-to-use software when using USB2.0 connection. Comes with a 5 year limited warranty on microscope and 1 year warranty on camera.
| ITEM NO. | RESOLUTION | HEAD | EYEPIECES | MAGNIFICATION | ILLUMINATION |
| QZ-300D5 | 5MP | Binocular | 10X WF | 6.6X to 50X | LED Top & Bottom |
Specifications
Microscope Specifications:
| Body | All metal construction |
| Head |
Binocular head, 45° inclined, rotates 360° |
| Interpupillary Adjustment | Synchronized, bi-lateral adjustment of 54mm to 76mm |
| Eyepiece | Paired 10X/23mm WF high eyepoint eyepieces, rubber eye guards included, diopter adjustment on both ocular tubes |
| Objective Range |
0.66X to 5.0X |
| Zoom Ratio | 1:7.6 |
| Stage | 99.5mm black/white stage plate, 99.5mm frosted stage plate, locked-on spring loaded stage clips |
| Focusing System |
Heavy duty rack and pinon focusing with slip clutch and tension adjustment |
| Working Distance | 110mm |
| Illumination | Top/Bottom LED illumination, separate light intensity control for each light, top light is diagonally adjustable |
| Power | 3-wire grounded power cord |
| Accessories | Vinyl dust cover and user manual |
| Warranty | Limited 5 year |
Camera Specifications:
| Image Sensor | CMOS |
| Resolution | 5 mega pixels |
| Max Resolution | 2952 x 1944 |
| Data Output | USB2.0 port, 480mps |
| Power | USB cable connected to computer |
| Compatibility | Windows 2000/XP/Vista/7/8/10 operating systems |
| Software | OPT Pro |
| Accessories | USB cable, CD with software |
| Warranty | 1 year |
