Description

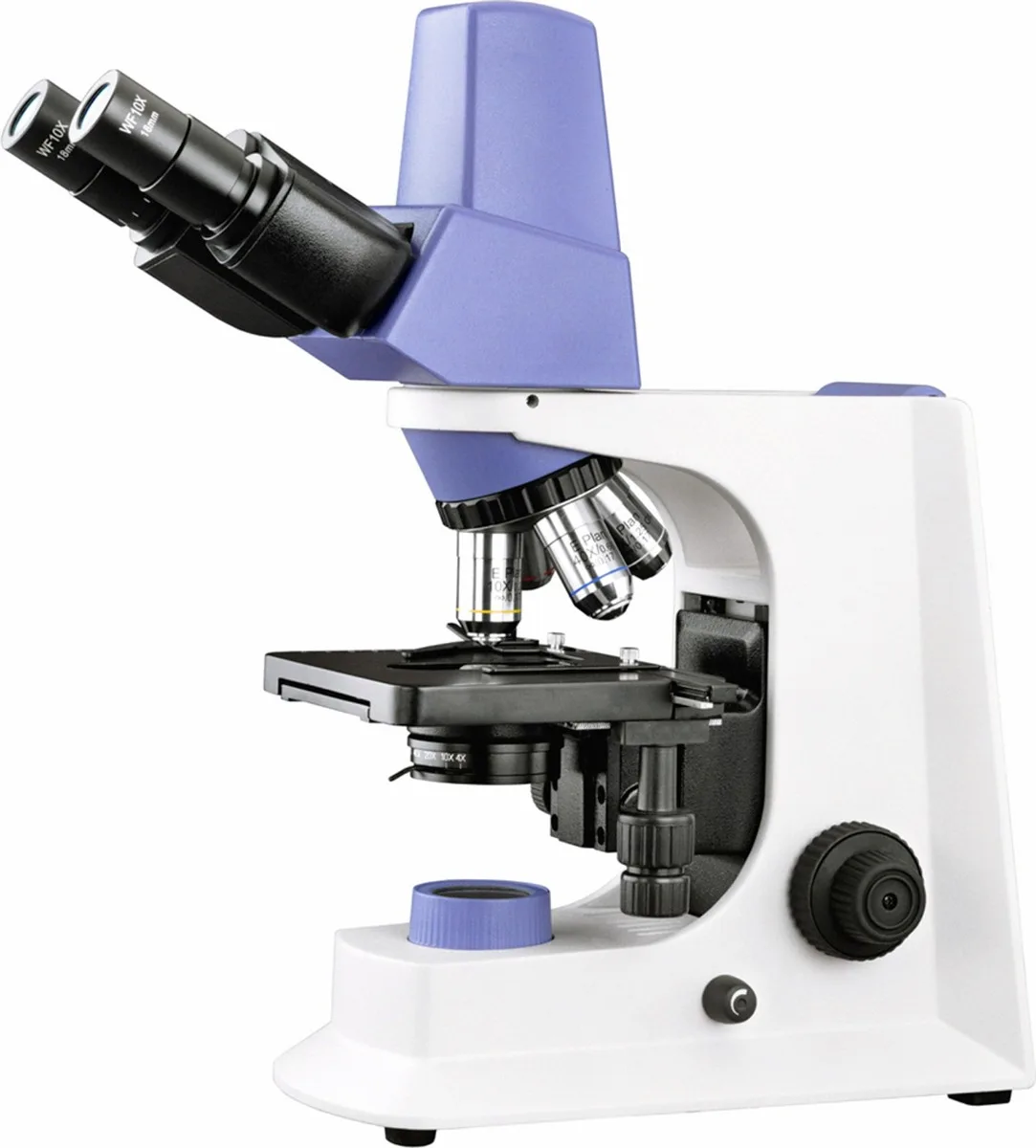

The 1008D5 microscope delivers quality results. Microscope features infinity corrected optics that enhance image quality and allows objectives to remain parfocaled when optical components are added or removed. The rectangular shape and cast aluminum stand are vibration proof and provides a strong and stable operating base. The frame and handle makes this microscope easy to carry and moved around any work space.The 5MP digital WiFi camera offers plug-and-play capabilities with our free and easy-to-use software when using USB2.0 connection. Comes complete with a dust cover and instruction manual. 5-year limited warranty on microscope, 1-year warranty on camera.
| ITEM NO. | RESOLUTION | HEAD | INFINITY SEMI-PLAN DIN OBJECTIVES |
ILLUMINATION |
| 1008D5 | 5MP | Binocular | 4X, 10X, 40XR, 100XR | 3W LED |
Specifications
Microscope Specifications:
| Body | Cast aluminum with enamel finish, rectangular shape |
| Head |
Sidentopf binocular, 30° inclined, rotates 360°; Interpupillary adjustment: 50mm – 75mm |
| Eyepiece | 10X wide-field eyepieces |
| Nosepiece | Four position reversed nosepiece |
| Objectives | 4X, 10X, 40XR, 100XR Infinity corrected, semi-plan DIN objectives |
| Stage | 145mm X 140mm Built-in double layer mechanical stage, Vernier scales, smooth X/Y calibrated movement with cross travel range of 76mm X 52mm |
| Condenser | 1.25 N.A. Abbe condenser with diaphragm position guide markings for their respective objectives |
| Focusing System |
Low position coaxial coarse and fine focusing knobs, 26mm coarse movement stroke, fine focus graduation of 2µm |
| Illumination | 3W LED illumination, light intensity control |
| Power | 3-wire ground power cord |
| Accessories | Vinyl dust cover and user manual |
| Warranty | Limited 5 year |
Camera Specifications:
| Image Sensor | CMOS |
| Resolution | 5 mega pixels |
| Max Resolution | 2952 x 1944 |
| Frame Speed | 6-30 frames per second |
| Data Output | USB2.0 port, 480mps |
| Power | USB cable connected to computer |
| Compatibility | Windows 2000/XP/Vista/7/8/10 operating systems |
| Software | OPT Pro |
| Accessories | USB cable, CD with software |
| Warranty | 1 year |
