Description

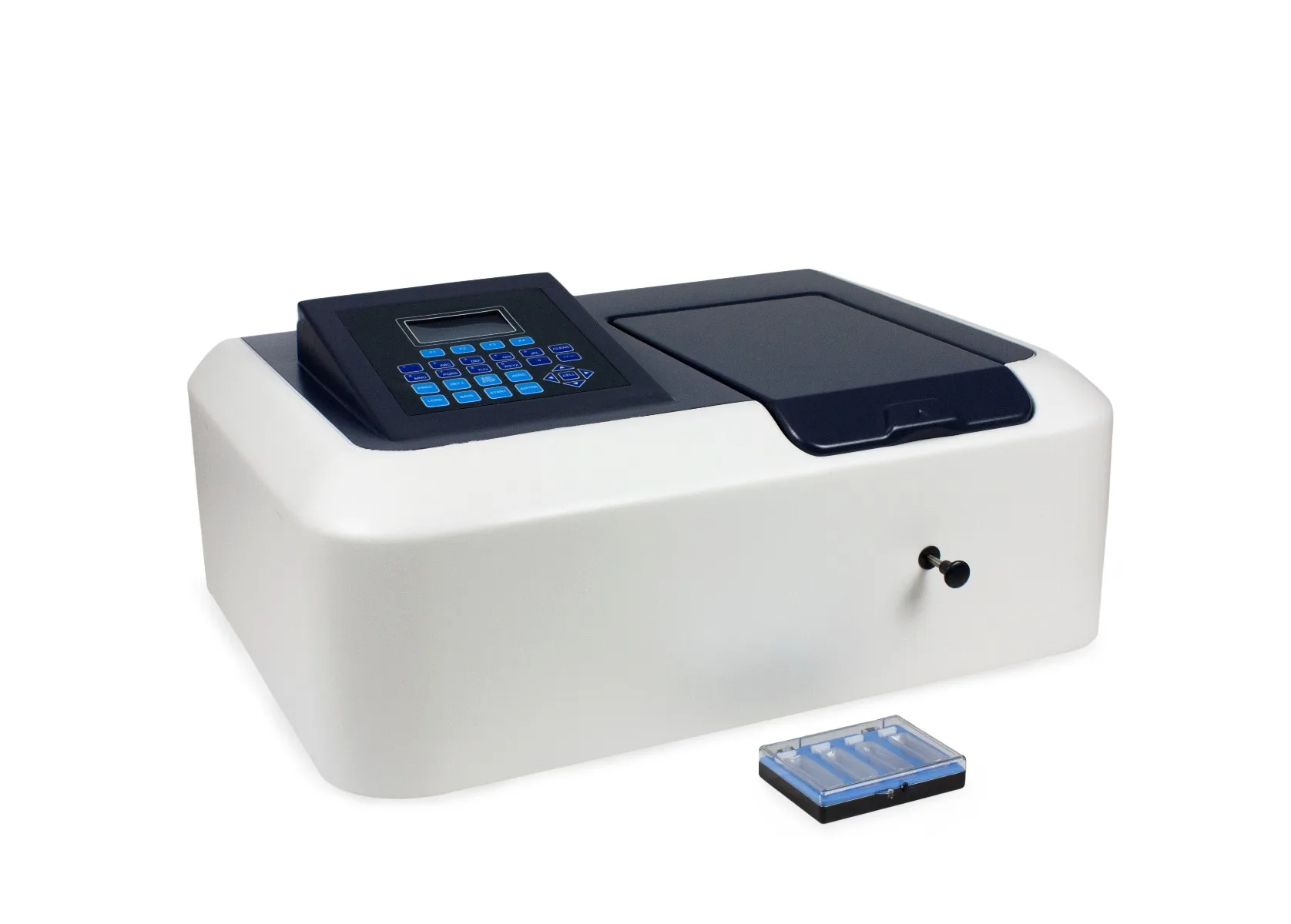

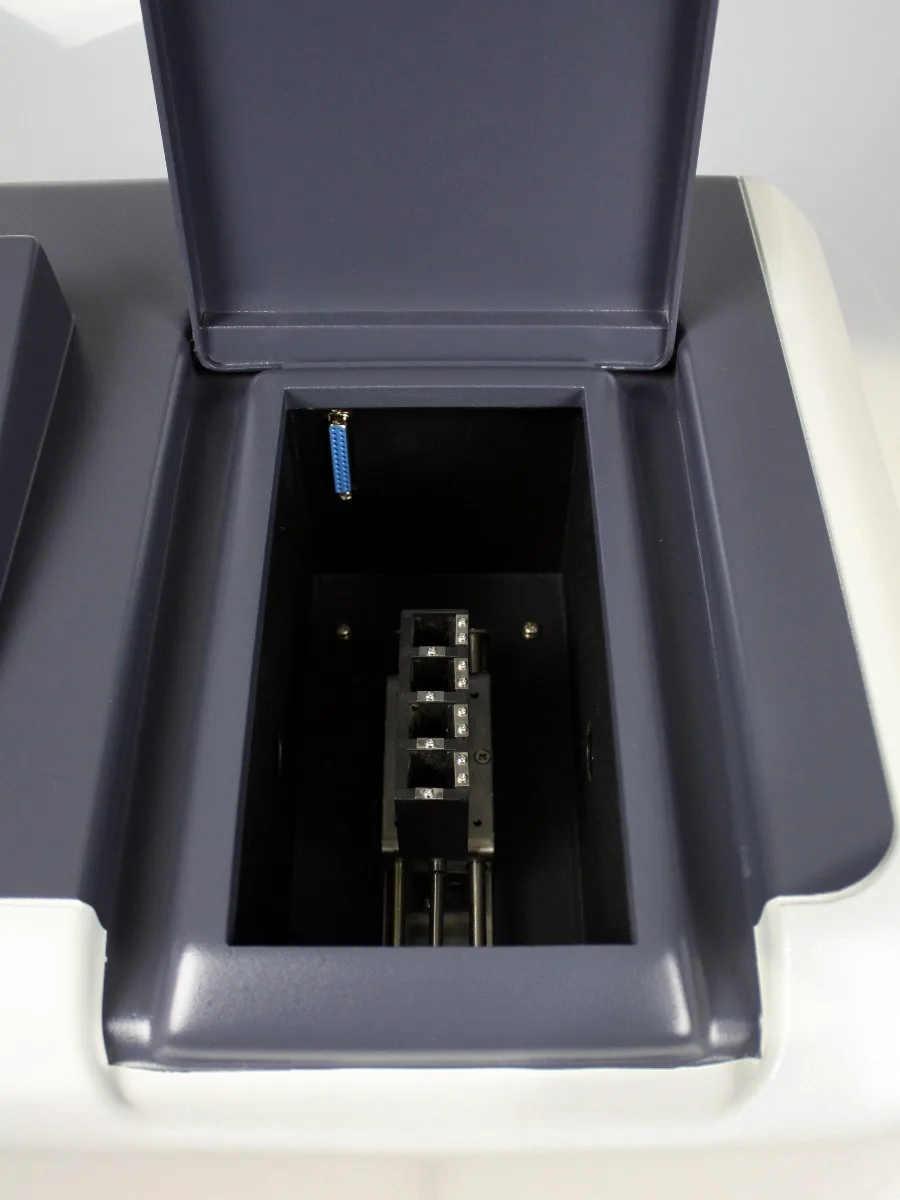

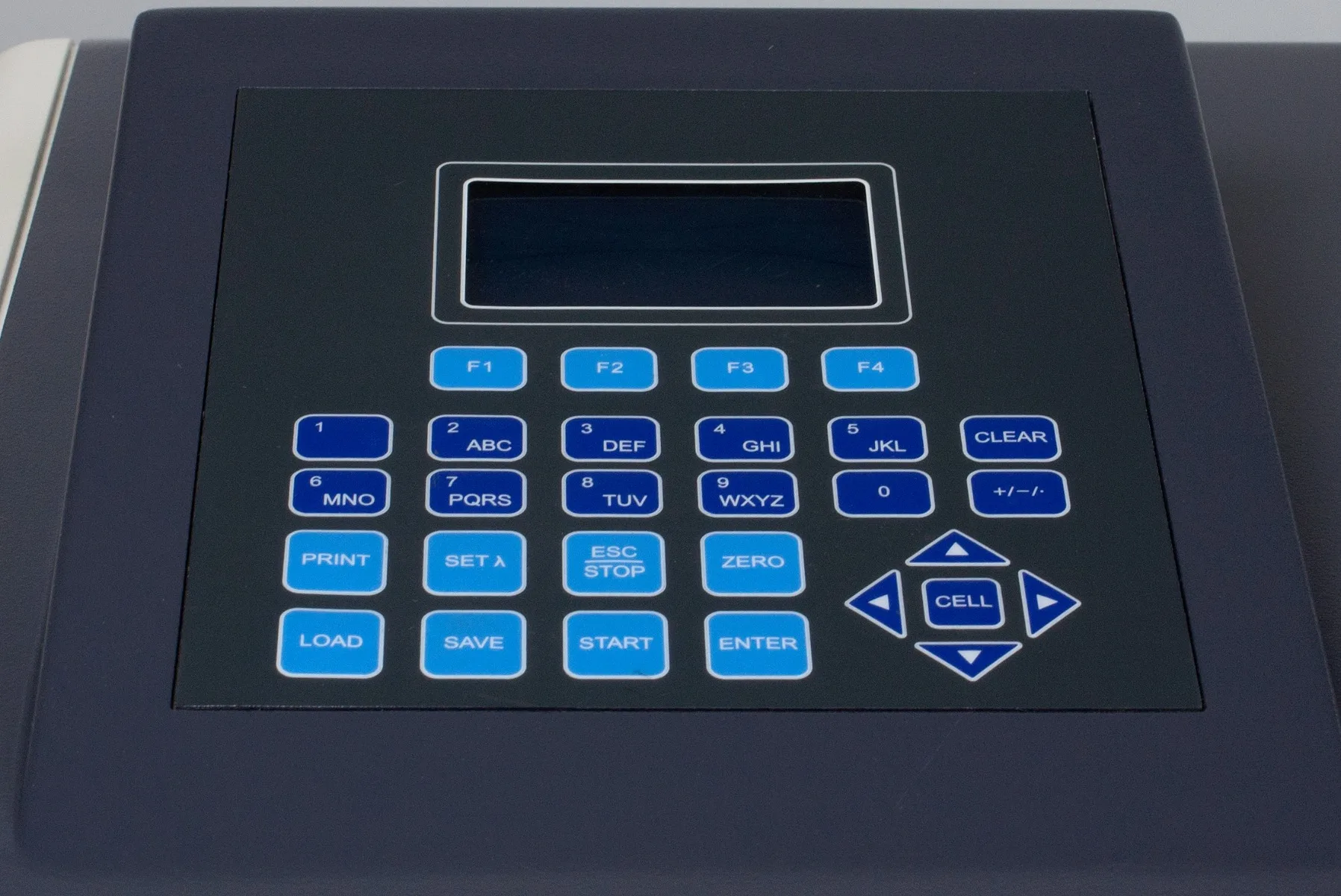

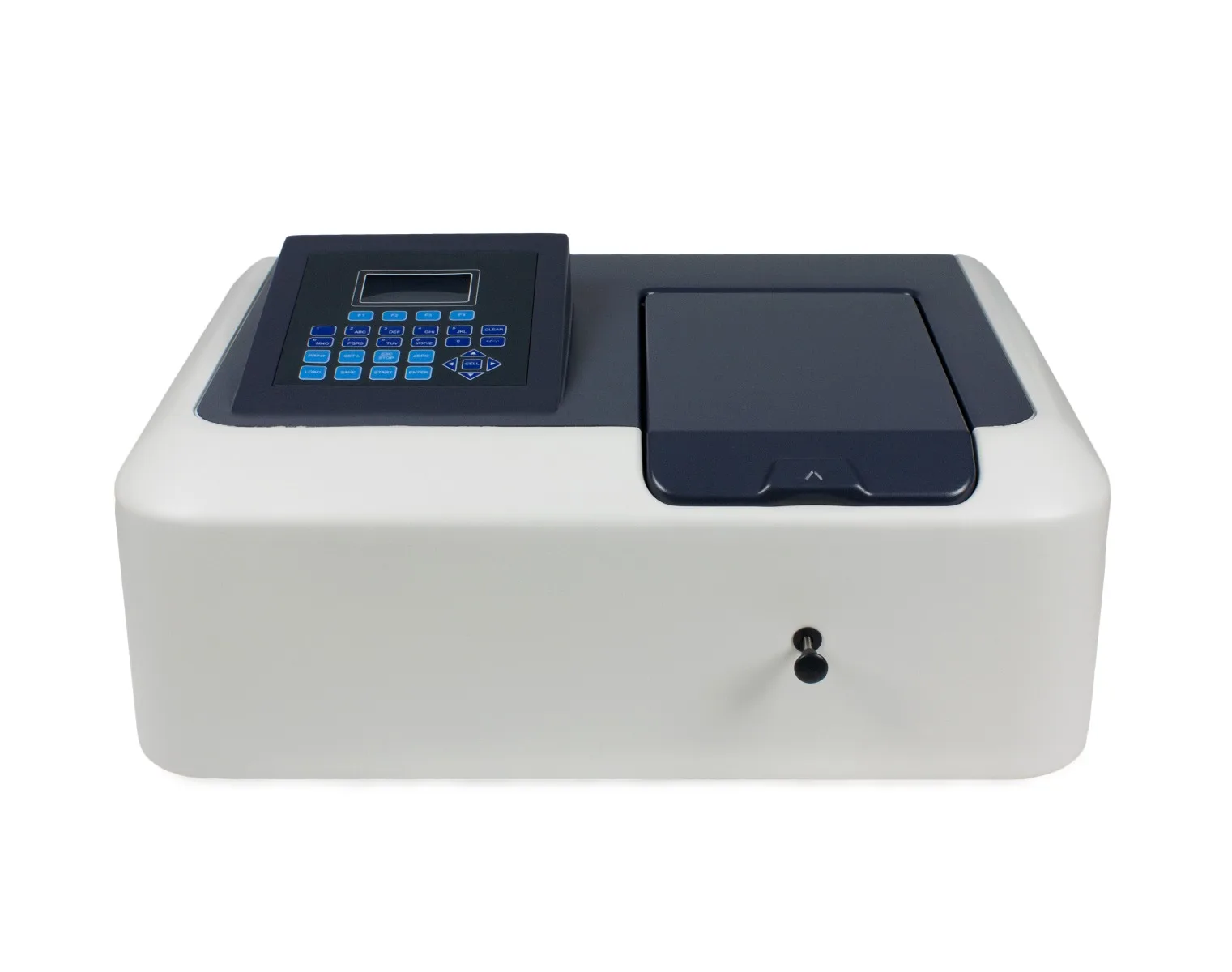

This Walter Products S600 spectrophotometer is equipped with a 4-position cell holder for 10mm cells, and features a large sample compartment for up to 100mm path length cells. Its many functions include basic photometric mode, quantitative analysis, multi-wavelength tests and more. The expanded key panel input and the large LCD screen display allow for more room to work with, and a clear and easy reading of absorbance, transmittance, factor, and concentration levels. The pre-aligned lamps are conveniently placed for easy replacement, while the optical parts are mounted on an aluminum foundation which provides a steady and firm base. It is ideal for students to use in college, university, and general laboratory settings.
Specifications
| Wavelength Range | 200-1000nm |
| Bandwidth | 2nm |
| Optical System | Single Beam with Littrow System, 1200 lines/mm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ±0.2nm |
| Wavelength Resolution | 0.1nm |
| Display | 128×64 Graphic Dots LCD |
| Stray Energy | ≤0.05%T at 220nm & 340nm |
| Photometric Range | 0-200% Transmittance, -0.3-2.5 Absorbance, 0-9999 Concentration |
| Photometric Accuracy | ±0.5% Transmittance (0-100%T) |
| Photmetric Repeatability | Better than 0.3% Transmittance |
| Scan Speed | Max 2000nm/min (PC Control) |
| Baseline Flatness | ±0.002A (PC Control) |
| Stability | ±0.002A/h (500nm, 0A) |
| Noise | ≤0.1%T/3 min (250/500nm, 0%T); ≤0.3%T/3 min (250/500nm, 100%T) |
| Cuvette Capability | up to 100mm Pathlength |
| Detector | Silicon Photodiode |
| Data Output | USB 1.0 |
| Light Source | Halogen, Deuterium |
| Power | AC 80-240V, 50/60Hz |
| Dimensions | 18″ x 14″ x 8″ / 457 x 356 x 203mm |
| Weight | 33lb / 15kg |
| Warranty | 1 Year |
