Description

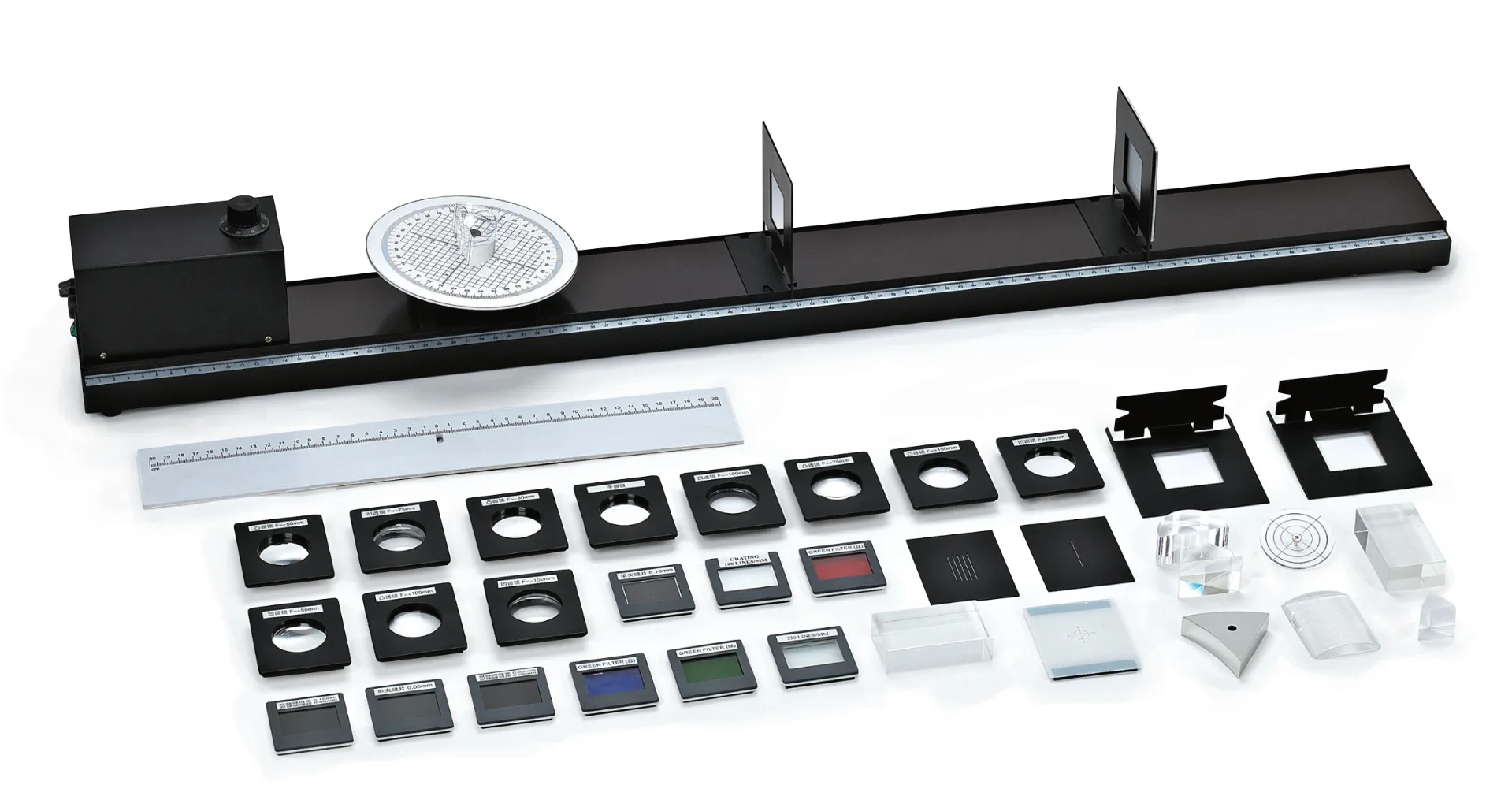

This delicate optics experiment features an optical aluminum platform, 4 L-shaped optical benches, a light source, an angular scale and other accessories. With sample data, it can complete 15 optical experiments (listed below). Comes with an instructional manual, a CD and an aluminum storage case.
Specifications
- (1) Optical Aluminum Platform: 100cm long, anode treatment, two sides attach acrylic meterstick, the min. scale 1mm, the recess on the platform attaches magnetic shim
- (4) Optical Benches: L shape, 90 x 90mm, attach dial pointer
- (1) Light Source: 12V18W, can rotate left and right. 110V or 220V
- (1) Angular Scale: High quality plate steel, 150mm dia. Metal barking varnish disposal. Has the graduation and Perkin’s
- (1) Angular Scale Base: high-quality plate steel, the surface used metal barking varnish disposal, with magnetic shim, Inclination 5°
- (1) Arrow Shape Hole: 62x75mm, with cross arrow shape hole and transparent round hole, with magnetic shim
- (1) Diffraction Graduated Scale: 410x60mm, with scale size, range is 200mm-0-200-mm, accuracy 1mm, has diffraction hole with magnetic shim
- (1) Screen: 75x75mm with magnetic shim
- (1) Three-side Reflect Cylinder: K9 optical glass. Three sides are flat, concave, and convex
- (1) Collimating Mirror: K9 optical glass, 60x50mm. Attached with magnetic shim
- (1) Single Slit Flakelet: 60x75mm, slit width 0.8mm. Attached with magnetic shim
- (1) Five-slit Flakelet: 60x75mm, slit width 0.8mm. Attached with magnetic shim
- (1) Semi-cylinder: Transparent PMMA, radius 25X25mm
- (1) Semi-cylinder: Using K9 optical glass. Radius 25X25mm
- (1) Acrylic Brick: Transparent PMMA, 70X40X20mm
- (1) Glass Brick: Using K9 optical glass, 70X40X20mm
- (5) Concave Mirrors: (F=+50mm, F=+80mm, F=-75mm, F=-100mm, F=-150mm each): optical glass with coating green film. ABS protective cover, 60×70mm, attached with magnetic shim
- (6) Convex Mirrors (F=-50mm, F=-80mm, F=+75mm, F=+100mm, F=+150mm): optical glass with coating green film. ABS protective cover,60×70mm, attached with magnetic shim
- (1) Equilateral Prism: BK7 optical glass, 25X25mm
- (1) Right Angled Isosceles Prism: BK7 optical glass
- (1) Single Slit Flakelet: 0.05mm wide, in the delicate glass slide
- (1) Single Slit Flakelet: 0.10mm wide, in the delicate glass slide. Attached with magnetic shim
- (1) Double Aperture Slit: 0.05mm wide, slit distance 0.25mm, in the delicate glass slide, Attached with magnetic shim
- (1) Aluminum Case
- (1) Double Aperture Slit: 0.10mm wide, slit distance 0.50mm, in the delicate glass slide. Attached with magnetic shim
- (1) Grating Film: 100 slits per millimeter, in the delicate glass slide. Attached with magnetic shim
- (1) Grating Film: 600 slits per millimeter, in the delicate glass slide. Attached with magnetic shim
- (3) Colored Filters (Red, Green, Blue each): Colored filter in the delicate glass slide individually. Attached with magnetic shim
- (1) The Prism Base: transparent PMMA pressing, with universal joint and three concentric circles
- (1) Angle Recording Paper
- (1) Instructional Manual
- (1) CD
Experiments
- Reflect Law Experiment
- Flat Mirror Experiment
- Concave Mirror Experiment
- Convex Mirror Experiment
- Cylindrical Mirror Imaging Experiment
- Refractive Index Experiment
- Convex Lens Imaging Experiment.
- Concave Lens Imaging Experiment
- Beam Splitter Experiment
- Double Aperture Slit Interference
- Single Slit Diffraction Experiment
- Optical Grating Diffraction Experiment
- Telescope Principles
- Microscope Principles
- Light’s Polarization (accessories sold separately)
Additional information
| Weight | 26.0 kg |
|---|
