Description

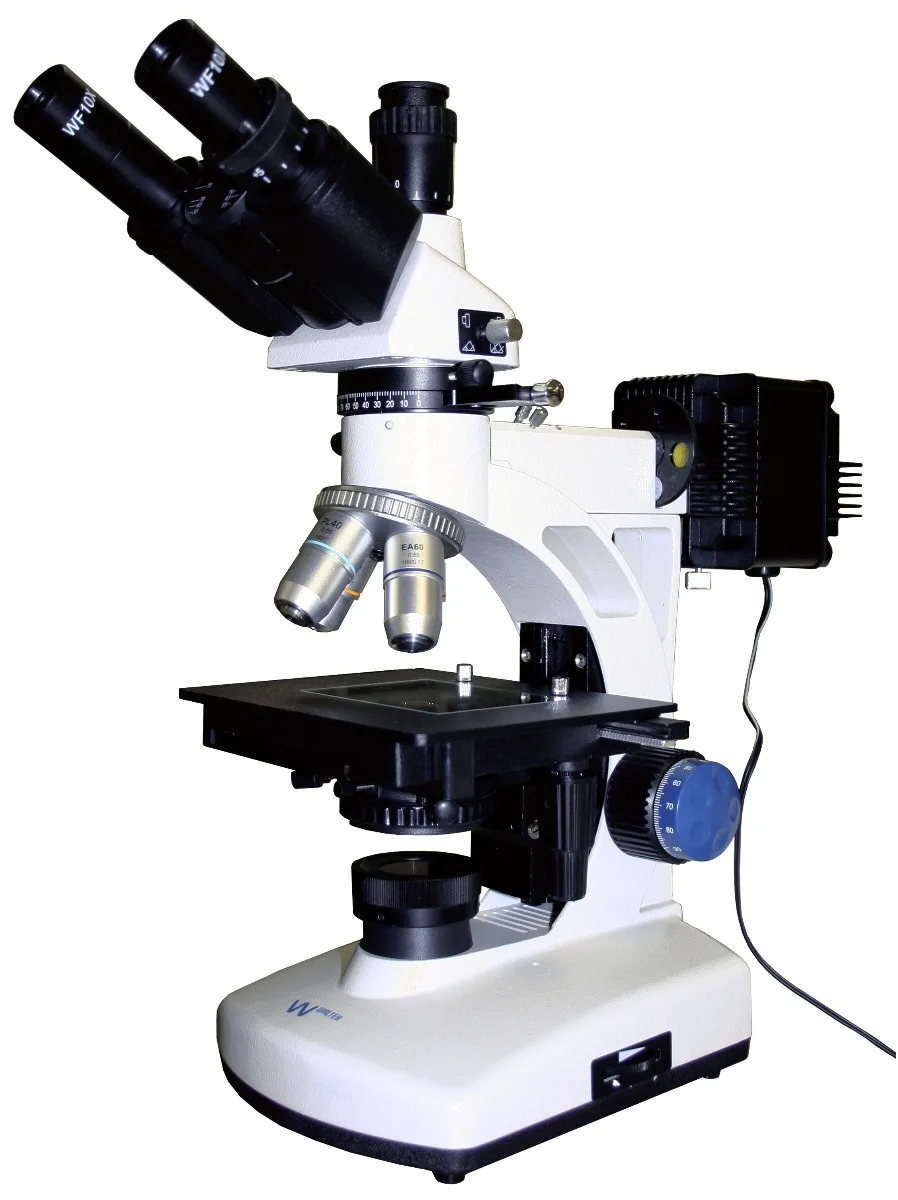

This versatile but cost-effective upright metallurgical microscope is designed to meet the performance demands of engineering professionals who need to study opaque samples like minerals, metals and building materials. The modular component accepts a variety of attachments for bright field, polarization and metallurgical applications. Microscope features an ergonomically designed metal frame, outstanding optics with sharp resolution and good contrast, and two stages. Comes with a dust cover and instruction manual. 5-year limited warranty excluding bulbs.
| ITEM NO. | HEAD | OBJECTIVES | METALLURGICAL OBJECTIVE | ILLUMINATION |
| 60-CXTT-60-LED | Trinocular | 4X, 10X, 60XR | 40XR | LED |
Specifications
| Body | Ergonomically designed, one-piece metal frame |
| Head |
Siedentopf trinocular, 30° inclined, rotates 360°; 50/50 light splitting ratio; 1X c-mount included |
| Interpupillary Distance | 55-75mm |
| Eyepiece | Paired 10X/18mm wide-field eyepieces, calibrated pointer in one eyepiece; Diopter adjustment on right eyepiece tube |
| Nosepiece | Four position reversed nosepiece with positive stop clicks |
| Objectives | 4X, 10X, 60XR DIN achromatic objectives are color-coded, parfocaled and parcentered 40XR metallurgical plan achromatic DIN objective is color-coded, parfocaled and parcentered |
| Stage | 125 x 125mm double layer mechanical stage with X/Y cross travel range of 75mm x 30mm 133 x 160mm transparent stage with 65 x 85mm transparent area |
| Condenser | Focusable substage 1.25 N.A. Abbe condenser |
| Diaphragm | 2mm – 30mm Ø adjustable aperture iris diaphragm with 32mm diameter filter |
| Focusing System |
Low-position coaxial coarse and fine focus control, safety rack stop, tension adjustment; Focusing range of 33mm, fine focus graduation of 0.01mm |
| Illumination | LED reflected and transmitted light with light intensity control |
| Polarizing Unit | On the light collector, rotates 360° |
| Analyzer Unit | Rotatable, graduated from 0-90° |
| Optical Compensator | λ slip – first class red & ¼ λ slip |
| Reflected Light Filter Wheel | Yellow, green, blue |
| Power | 3-wire grounded power cord |
| Accessories | Vinyl dust cover and user manual |
| Warranty | Limited 5 year |
