Description

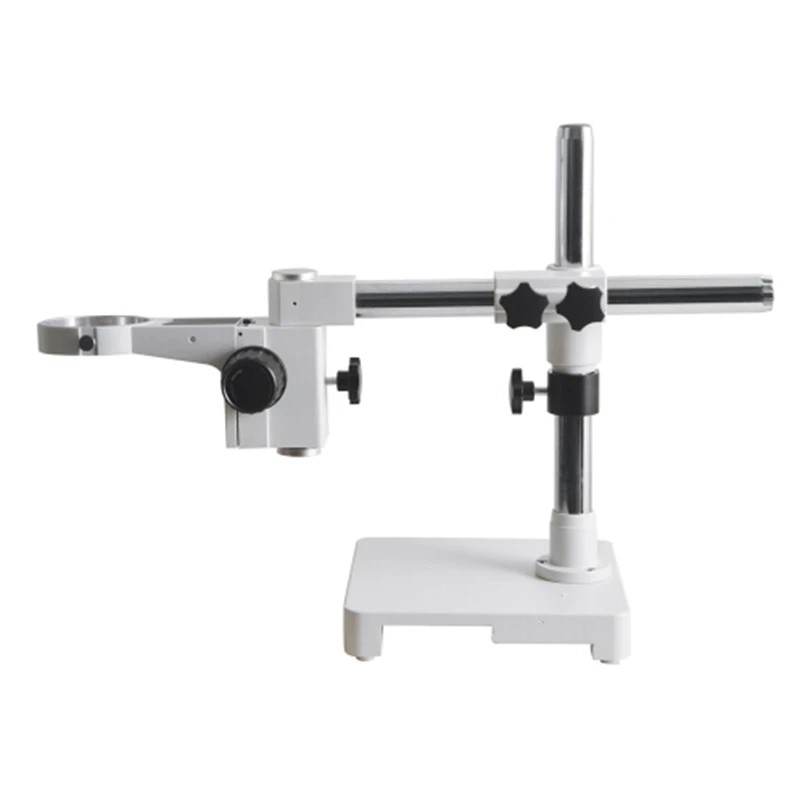

The single arm boom stand offers a long and flexible working distance. The solid cross block and brass inserts improve
movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating,
swiveling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas. The solid steel, rectangular
base provides a solid foundation for your observational needs. Stand is equipped with the IS-A1 focus block that has a 3″ annular ring to mount a microscope head.
Specifications
| Base Dimensions | 9.1″ x 9.1″ x 1.2″ / 230 x 230 x 30mm |
| Pillar Diameter | 1¼” / 32mm |
| Pillar Height | 13.7″ / 348mm |
| Horizontal Travel | 9.25″ / 235mm |
| Vertical Travel | 7.75″ / 197mm |
| Focus Block | Ball bearing, 3″ (76mm) diameter annular ring |
