Description

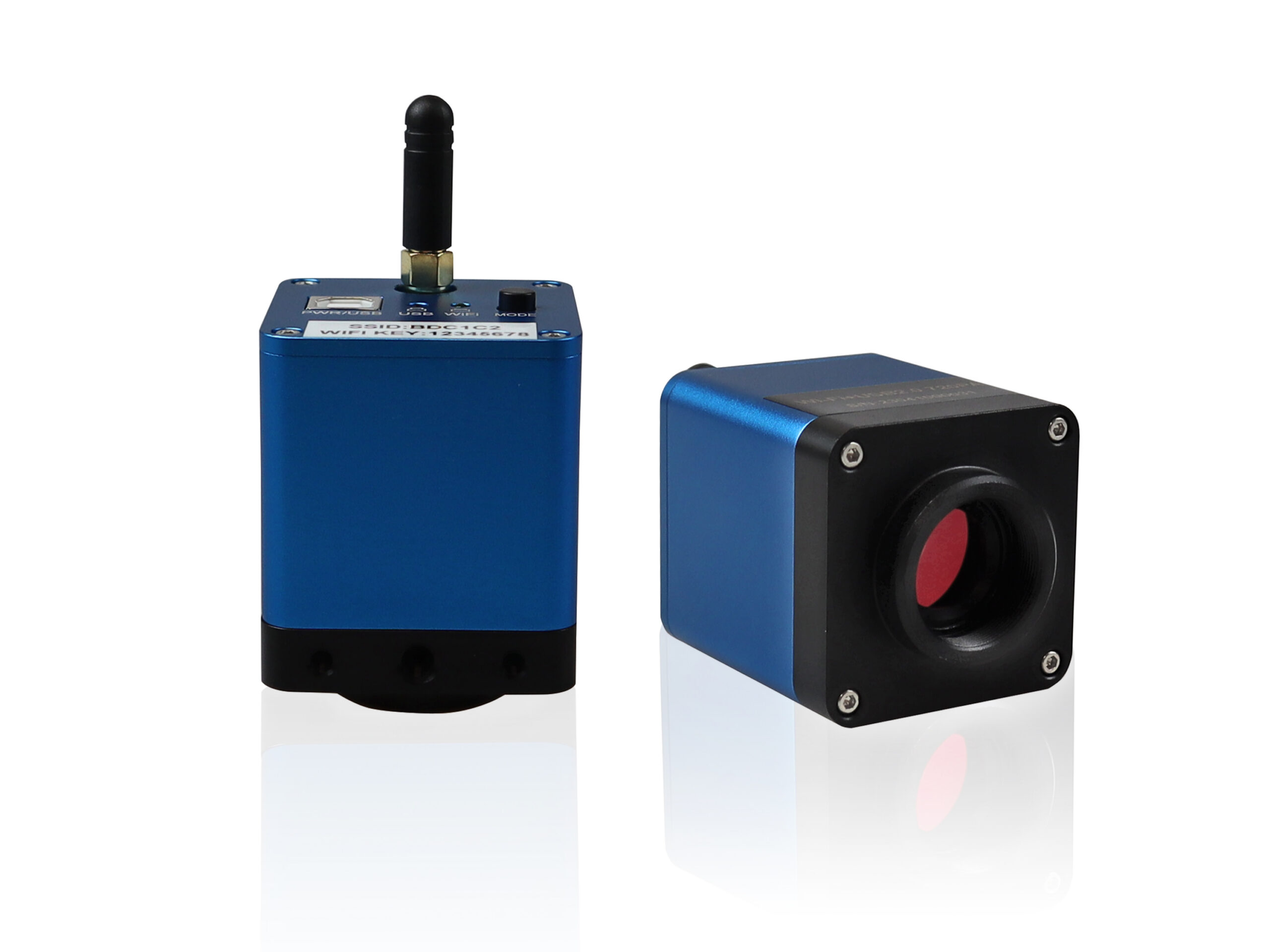

The DT720 is a scientific research grade camera with a Sony Aptina CMOS sensor. The camera can be connected to a computer using USB 2.0 connection or through Wi-Fi and is capable of delivering 720p videos at 30fps. 6 or more users are able to connect to the camera simultaneously in Wi-Fi mode.
The camera is made from tough, CNC aluminum alloy and is designed with a high-quality IR-CUT filter to protect the camera sensor. The camera uses a C-mount interface, making it compatible with a wide range of reduction lenses and photo-ports.
The included Windows software offers measurement, image-stitching, extended-depth-of-focus and video recording functions. For Mac and Linux, the software is able to capture video and still images, and offers exposure control, color adjustment and measurement tools.
Specifications
Camera Specifications:
| Sensor | Aptina MT9P001 (color) |
| Sensor Type | CMOS |
| Sensor Size | 5.63 x 3.17mm (1/2.5″) |
| Pixel Size | 2.2µm |
| Resolution | 720p |
| Frame Rate |
30fps @ 1280 x 720 |
| Sensitivity | 0.53V/lux-sec |
| Connectivity | USB2.0, Wi-Fi |
| Compatibility | Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Android, Linux |
| Operating Conditions | -10°C – 50°C, 30-80% RH |
| Power | 5V USB |
| Accessories | 0.37X reduction lens, USB2.0 cable, power adapter, CD with software |
Software Specifications:
| Operating System Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Android, Linux kernel 3.13+ |
| Hardware Requirements | Intel Core2 2.8GHz or equal processor, 2GB RAM, USB power source |
| Features | Live video preview Captures still images and video Adjust color balance, exposure, saturation and contrast Change resolution, diffusion, granulation and histogram Conduct measurements for length, angles, arcs, area, etc. Image-stitching, extended depth-of-field Digital binning |
