Description

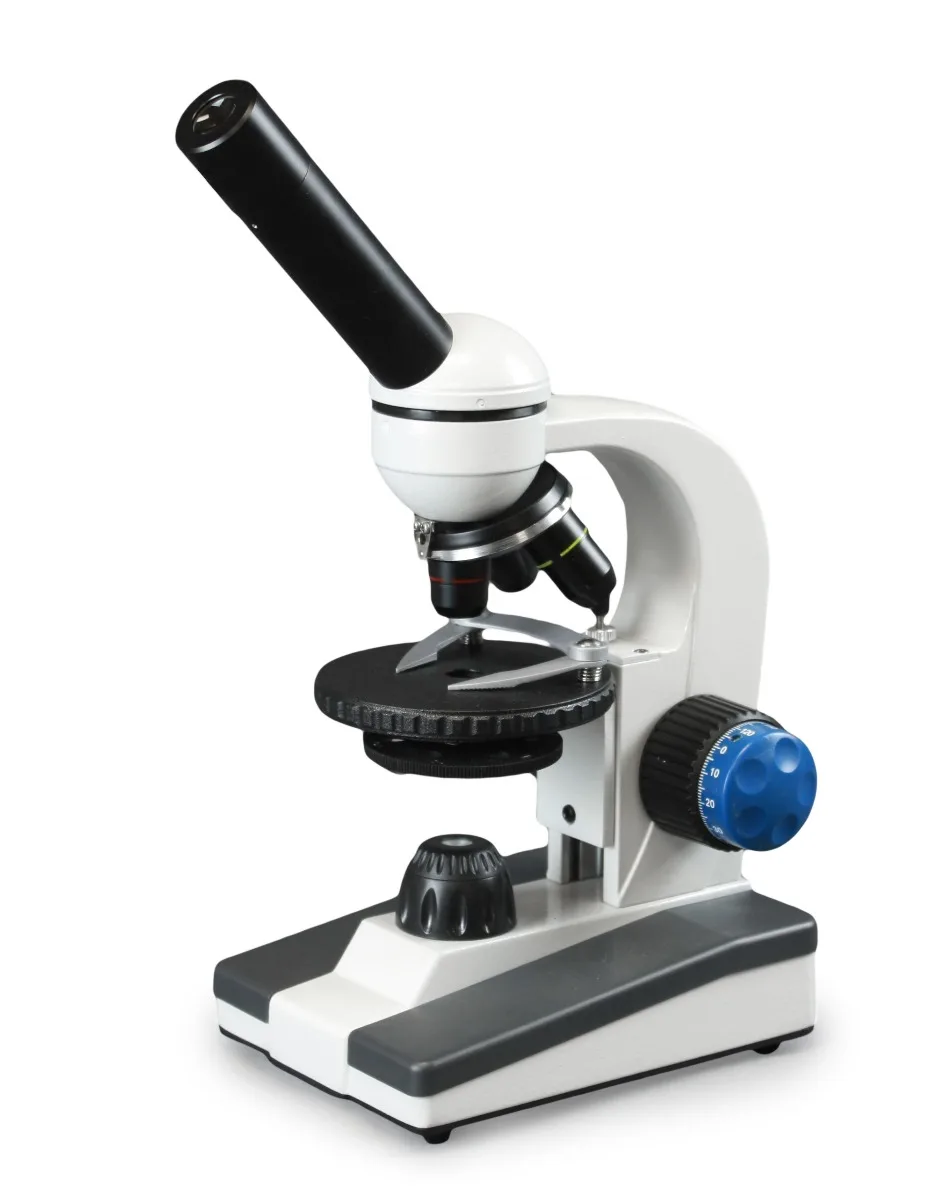

These compound microscopes have a 45° inclined viewing head that rotates 360°. Achromatic objectives are parfocaled, parcentered and color-coded to provide sharp, color-corrected magnified images. Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker then the bright background. A disc diaphragm controls the amount of light illuminating the specimen. The round gliding stage has an opening for light to pass through and allows for multidirectional, precise slide adjustment. The one touch stage clips secure the slide in place for viewing. Rugged metal components engineered for years of reliable performance. Packed in a fitted Styrofoam box and includes a dust cover and instruction manual. 5-year limited warranty excluding bulbs.
Specifications
| Model | 2058-LED 2058-RC |
2058-T-LED 2058-T-RC |

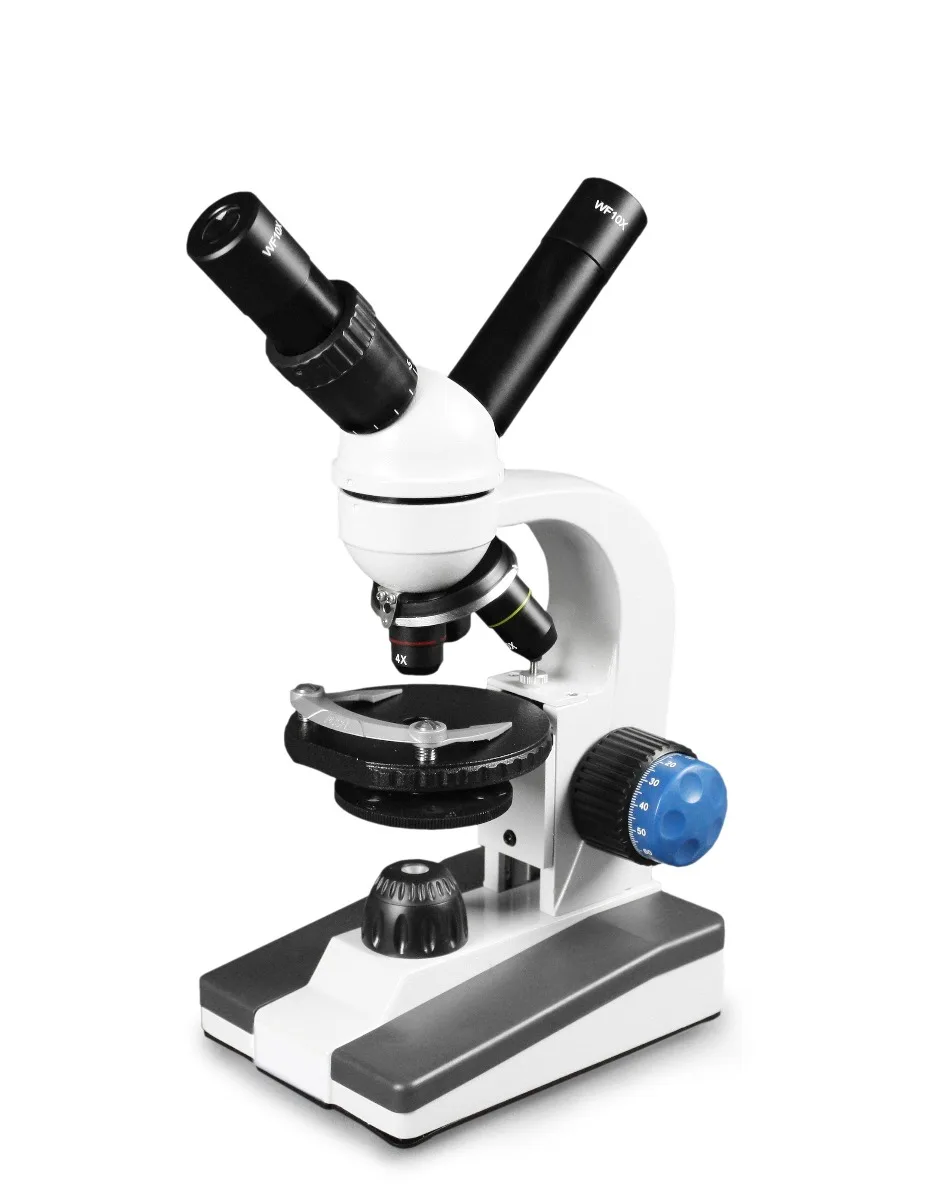

| Head | Monocular head, 45° inclined, 360° rotatable | Dual view head, 45° inclined, 360° rotatable |
| Eyepiece | 10X wide-field eyepiece with pointer 25X wide-field eyepiece |
Two 10X wide-field eyepieces, one with pointer One 25X wide-field eyepiece |
| Nosepiece | Reversed, three position nosepiece with positive stop clicks | |
| Objectives | 4X, 10X, 40X glass achromatic objectives, parfocaled, parcentered, color-coded | |
| Stage |
3.5″ round, movable stage, one touch locked-on stage clips | |
| Diaphragm | 5 hole disc diaphragm with white frosted filter | |
| Focusing | Coaxial coarse and fine focus control with built-in slip clutch and rack stop | |
| Illumination | LED illumination with light intensity control | |
| Power | LED: 3-wire grounded power cord | RC: 3 AA NiMH batteries or AC adapter (both included) | |
| Warranty | 5 year limited warranty | |
