Description
The 2053 series student microscopes are durable instruments designed with students in mind. Microscopes are of rugged cast metal construction and built to be strong. Features a monocular head with a locked-on eyepiece that rotates 360°, as well as an inclination joint for adjustable viewing. Suitable for grades 4-8. Comes with a 5 year limited warranty.
| ITEM NO. |
EYEPIECE | OBJECTIVES | FOCUSING | ILLUMINATION |
| 2053 | 10X WF | 4X, 10X, 40XR | Coarse | Mirror |

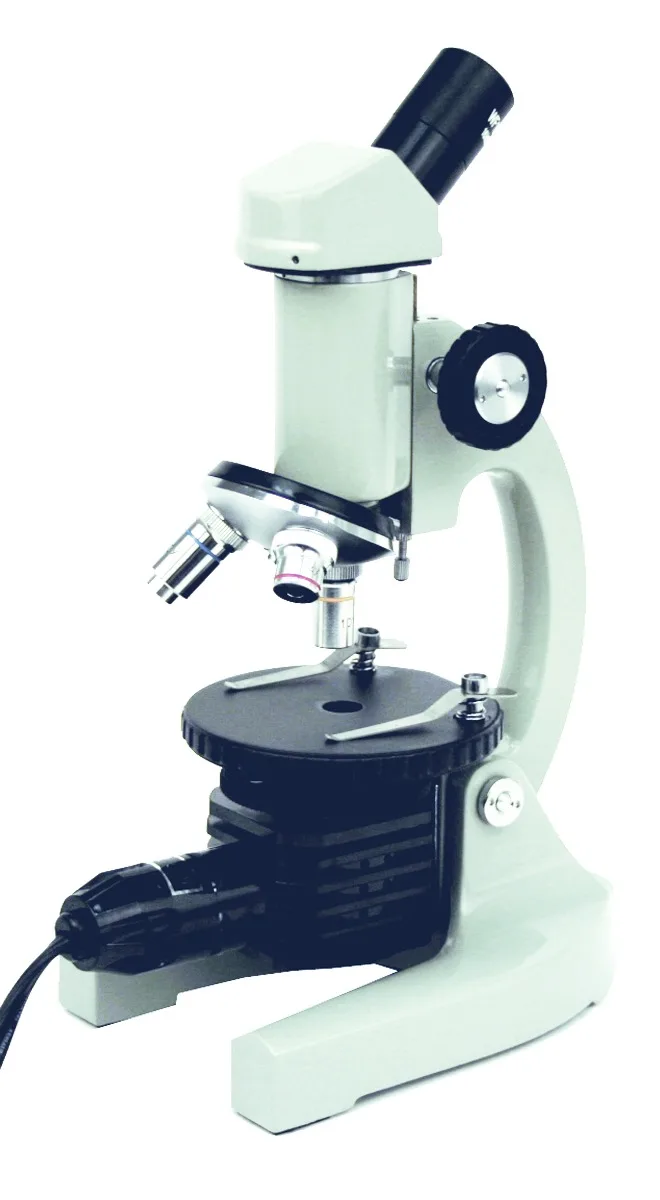

| 2053L | 10X WF | 4X, 10X, 40XR | Coarse | 15W Tungsten |

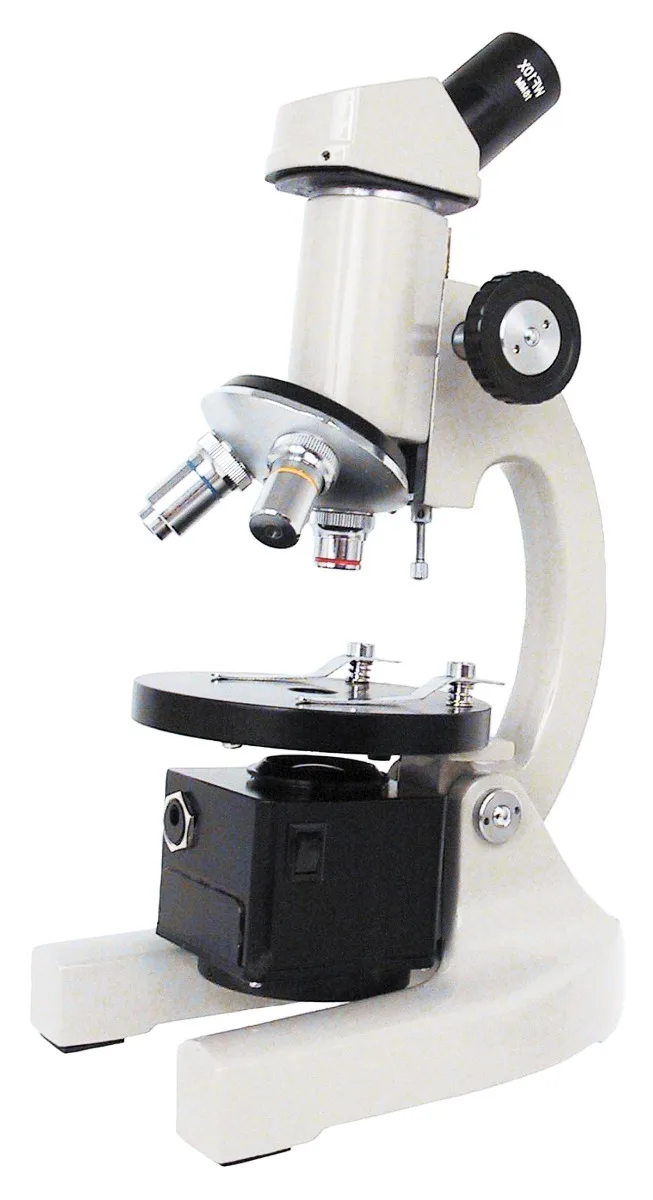

| 2053RC | 10X WF | 4X, 10X, 40XR | Coarse | LED Cordless |

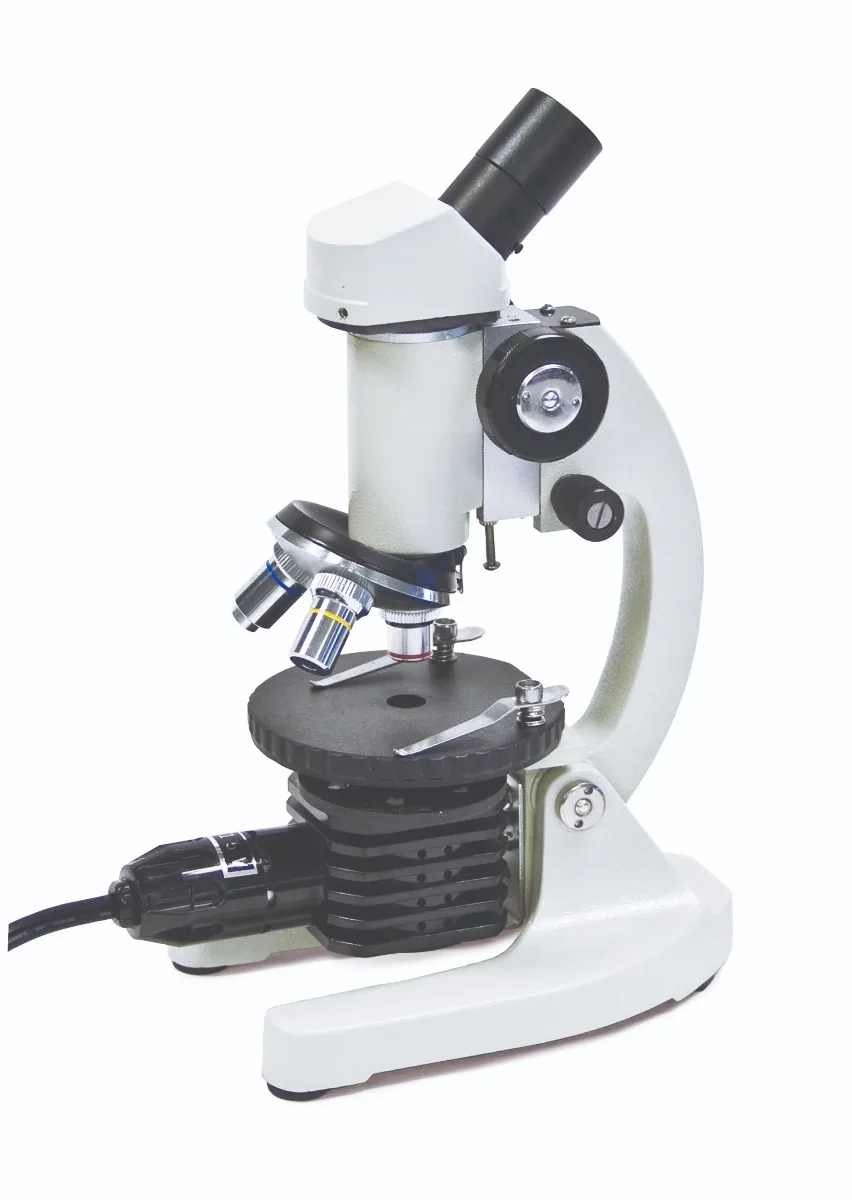

| 2053FCL | 10X WF | 4X, 10X, 40XR | Separate Coarse & Fine | 15W Tungsten |
| 2053FCRC | 10X WF | 4X, 10X, 40XR | Separate Coarse & Fine | LED Cordless |
Specifications
| Model | 2053 | 2053L |
2053RC | 2053FCL | 2053FCRC |
| Body | Rugged cast metal construction, inclination joint | ||||
| Head |
Monocular, 45° inclined, 360° rotation | ||||
| Eyepiece | Locked-on 10X wide-field eyepiece with pointer | ||||
| Nosepiece | Three position nosepiece with positive stop clicks | ||||
| Objectives | 4X, 10X, 40XR color-coded achromatic objectives | ||||
| Stage | 3.5″ round movable stage with locked-on spring loaded stage clips | ||||
| Condenser | 0.65 N.A. condenser | ||||
| Focusing System |
Coarse focusing, tension adjustable, slip clutch, rack stop | Separate coarse & fine focusing, tension adjustable, slip clutch, rack stop | |||
| Illumination | Mirror | 15W Tungsten | LED | 15W Tungsten | LED |
| Power | N/A | L: 3-wire grounded power cord RC: 3 AA NiMH batteries or AC adapter (both included) | |||
| Accessories | Vinyl dust cover and user manual | ||||
| Warranty | Limited 5 year | ||||
